Making Copies

EP2030 3-5

Highly Transparent Originals

(Using transparencies and translucent paper for the original)

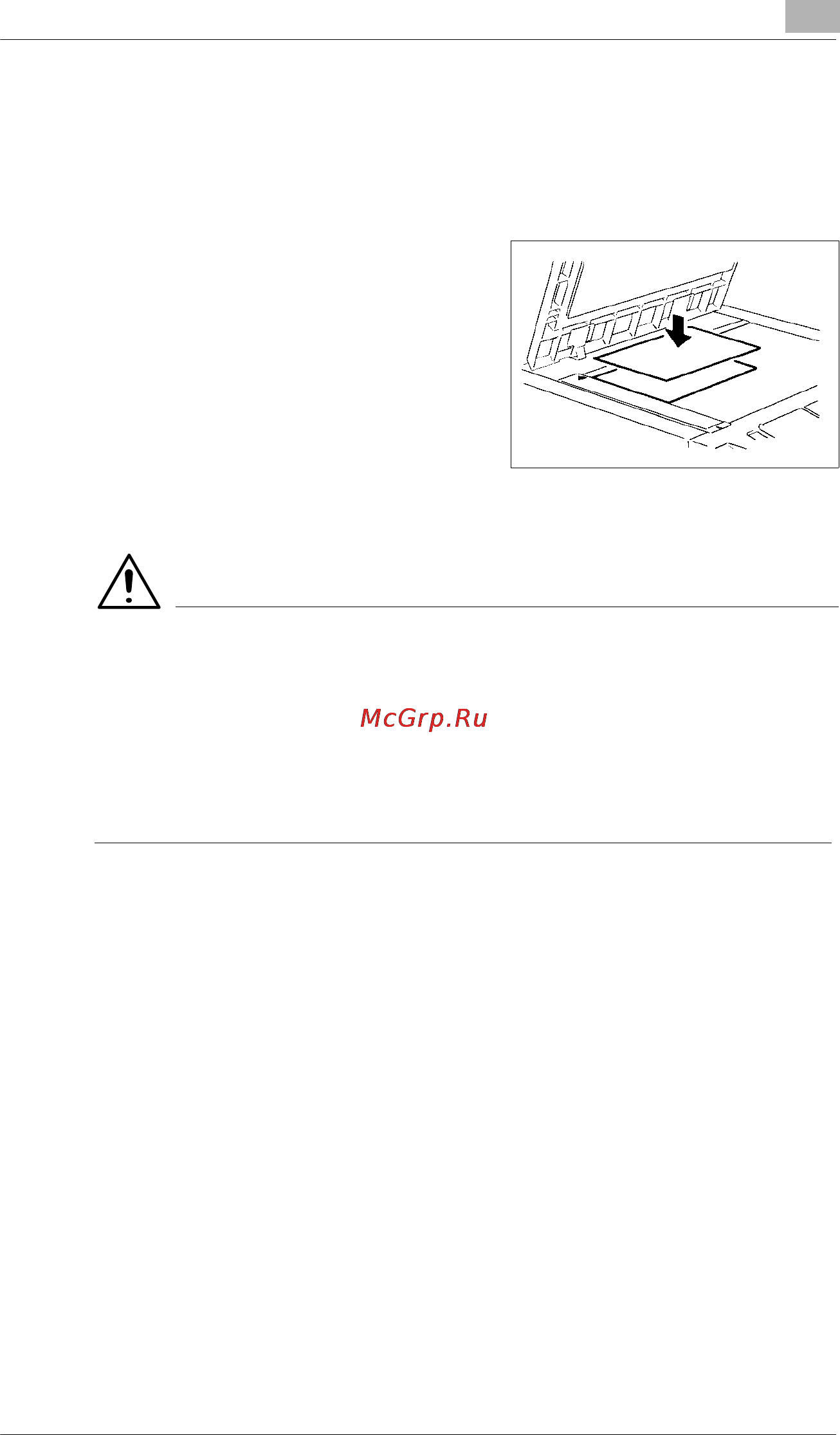

1 Place the original in the same way as the sheet originals.

2 Place a blank sheet of paper of the

same size over the original.

3 Gently lower the Original Cover.

NOTE

è The original sizes thatcan be detected in the Auto Paper Select Mode

are A3, B4, A4L, A4C, A5L. When making copies from originals other

than the above, select the copy paper size.

è When using wrinkled or curled originals, the original size might not be

detected correctly. So, select the copy paper size and do not use the

Auto Paper Select Mode. Copy Paper Size, see page 3-16.
