Using the User Mode

EP2030 4-13

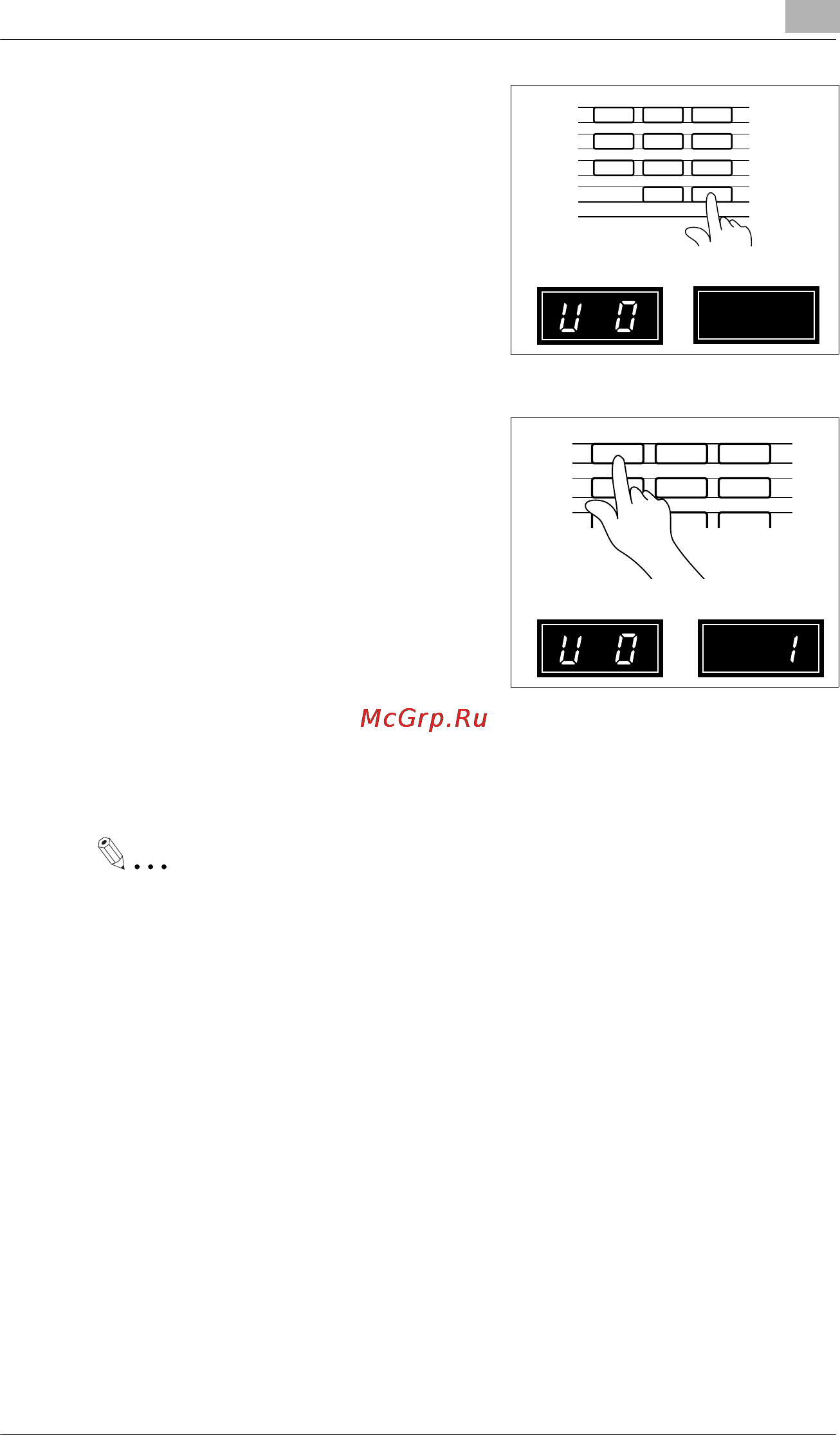

4 Press the Clear Key.

This clears the current setting

(shown on the Multi-Copy Display)

of that particular choice code.

5 Using the Key Pad, enter the new

setting.

The Multi-Copy Display shows the

new setting.

6 Press the Start Key.

This enters the new setting.

Useful Tip

Repeat steps 2 to 6 to make new settings for other User’s Choices.

7 Press the Panel Reset Key.

This allows the copier to leave the User’s Choice Mode, and the

control panel shows the initial settings again.

123

456

789

Zoom Ratio Indicator Multi-Copy Display

123

456

789

Zoom Ratio Indicator Multi-Copy Display
