Chapter 1 Command Line Interface
NXC CLI Reference Guide
18
The following table describes the elements in this screen.
Before you use the Console, ensure that:
• Your web browser of choice allows pop-up windows from the IP address assigned to your
NXC.
• Your web browser allows Java programs.
• You are using the latest version of the Java program (http://www.java.com).
To login in through the Console:
1 Click the Console button on the Web Configurator title bar.

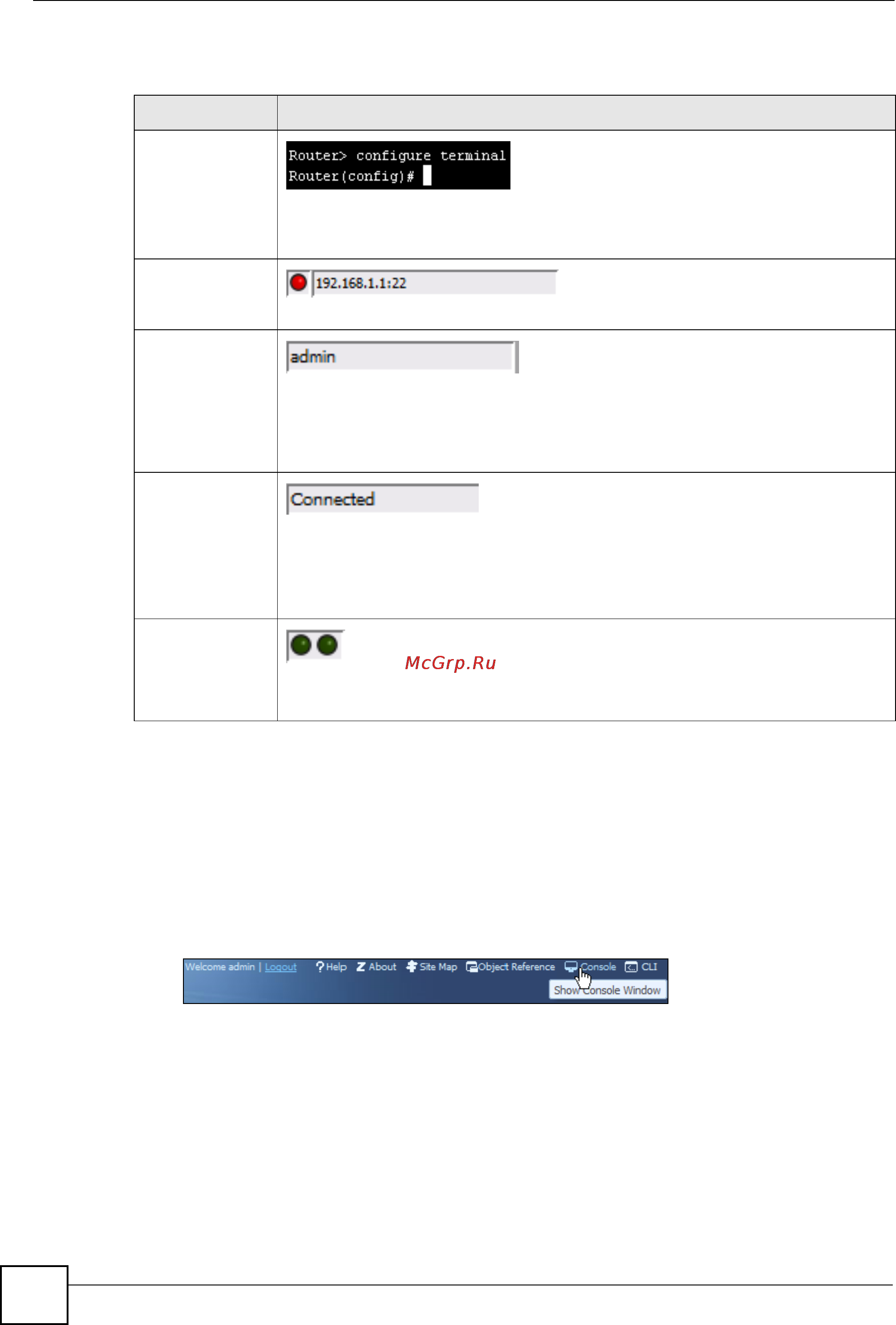

Table 2 Console
LABEL DESCRIPTION
Command Line
Enter commands for the device that you are currently logged into here. If you are
logged into the NXC, see the CLI Reference Guide for details on using the
command line to configure it.
Device IP
Address
This is the IP address of the device that you are currently logged into.
Logged-In User
This displays the username of the account currently logged into the NXC through
the Console Window.
You can log into the Web Configurator with a different account than used to log into
the NXC through the Console.
Connection
Status
This displays the connection status of the account currently logged in.
If you are logged in and connected, then this displays ‘Connected’.
If you lose the connection, get disconnected, or logout, then this displays ‘Not
Connected’.
Tx/RX Activity
Monitor
This displays the current upload / download activity. The faster and more frequently
an LED flashes, the faster the data connection.
