Chapter 34 File Manager
NXC CLI Reference Guide
215
34.12 Restoring the Default System Database
The default system database stores information such as the default anti-virus or IDP
signatures. The NXC can still operate if the default system database is damaged or missing,
but related features (like anti-virus or IDP) may not function properly.
If the default system database file is not valid, the NXC displays a warning message in your
console session at startup or when reloading the anti-virus or IDP signatures. It also generates
a log. Here are some examples. Use this section to restore the NXC’s default system database.

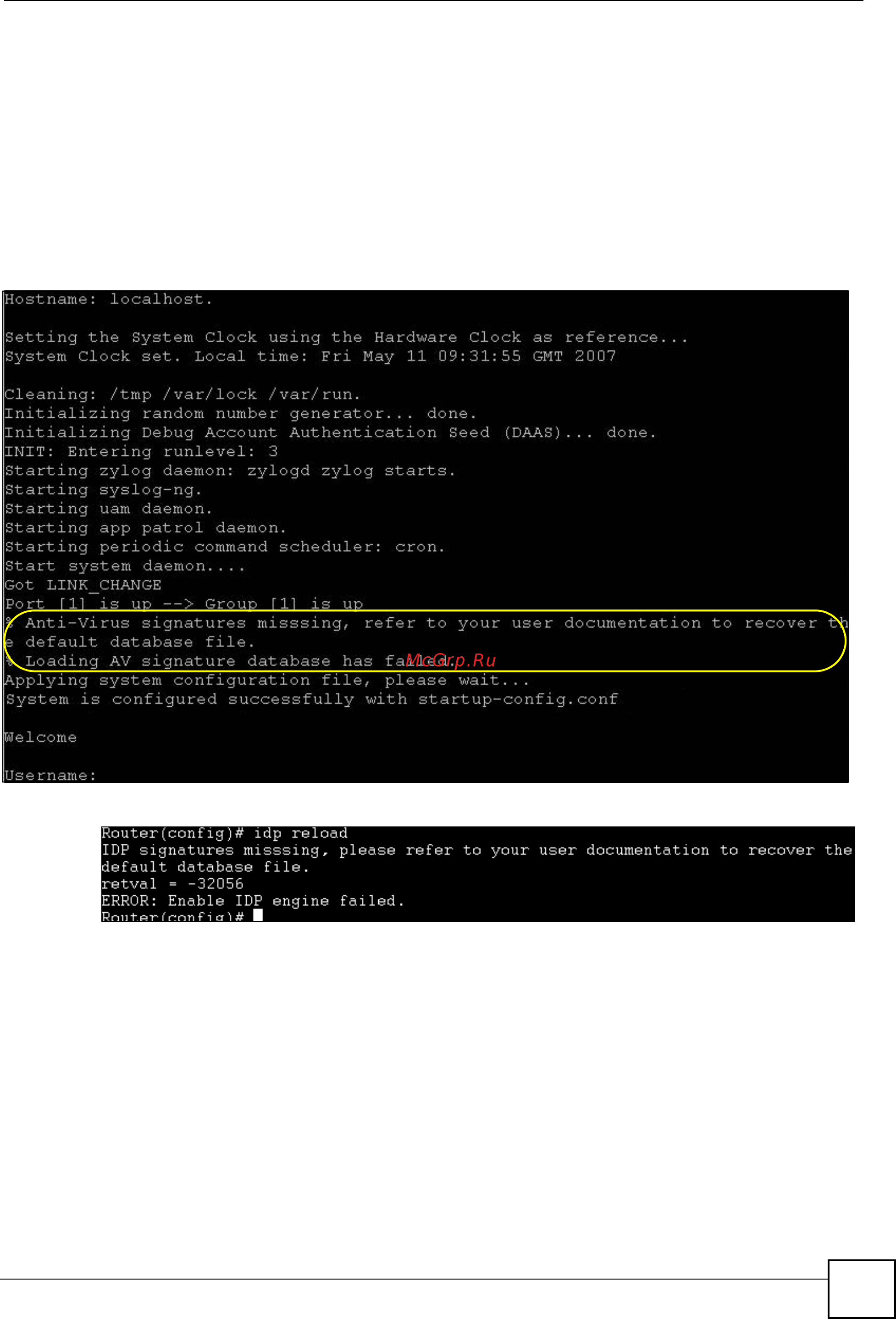

Figure 34 Default System Database Console Session Warning at Startup: Anti-virus
Figure 35 Default System Database Console Session Warning When Reloading IDP
