Chapter 34 File Manager
NXC CLI Reference Guide
213
3 Use an FTP client on your computer to connect to the NXC. For example, in the
Windows command prompt, type ftp 192.168.1.1. Keep the console session
connected in order to see when the firmware recovery finishes.
4 Hit enter to log in anonymously.
5 Set the transfer mode to binary (type bin).
6 Transfer the firmware file from your computer to the NXC. Type put followed by the
path and name of the firmware file. This examples uses put e:\ftproot\ZLD FW
\1.01(XL.0)C0.bin.

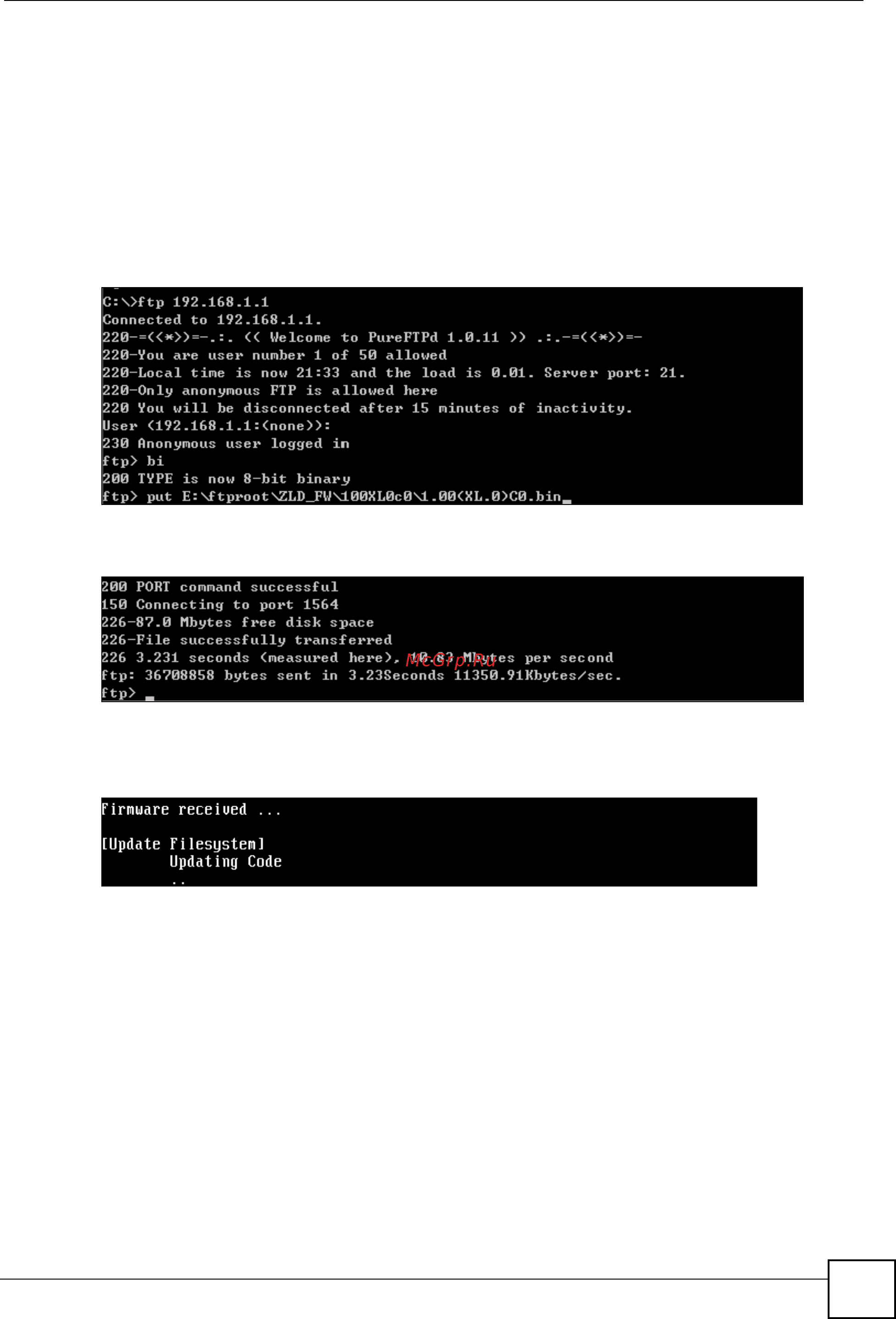

Figure 29 FTP Firmware Transfer Command
7 Wait for the file transfer to complete.
Figure 30 FTP Firmware Transfer Complete
8 After the transfer is complete, “Firmware received” or “ZLD-current received” displays.
Wait (up to four minutes) while the NXC recovers the firmware.
Figure 31 Firmware Received and Recovery Started
9 The console session displays “done” when the firmware recovery is complete. Then the
NXC automatically restarts.
