Tp-Link T2600G-28MPS (TL-SG3424P) [138/379] Basic config

the Discovery Info page.

8.1.1 Basic Config

Choose the menu Ethernet OAM→ Basic Config→ Basic Config to load the following page.

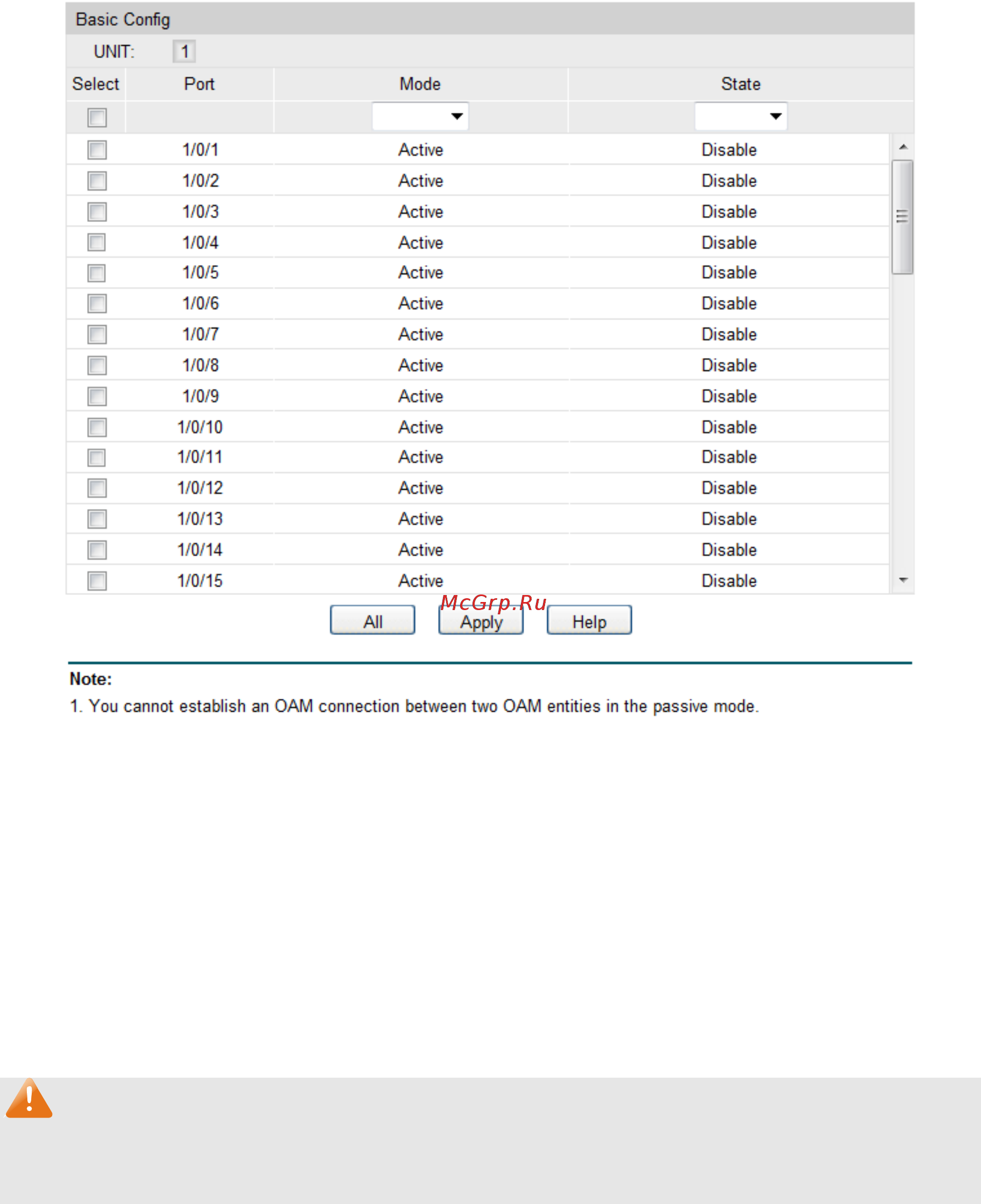

Figure 8-4 Basic Config

The following entries are displayed on this screen:



Basic Config

Select:

Select the desired port for configuration. It is multi-optional.

Mode:

Select the OAM mode for the desired port.

State:

Select Enable/Disable the Ethernet OAM function for the desired

port.

Note:

You cannot establish an OAM connection between two OAM entities that work in the passive

mode.

126
