Choose the menu Network Security→ARP Inspection→ARP Statistics to load the following

page.

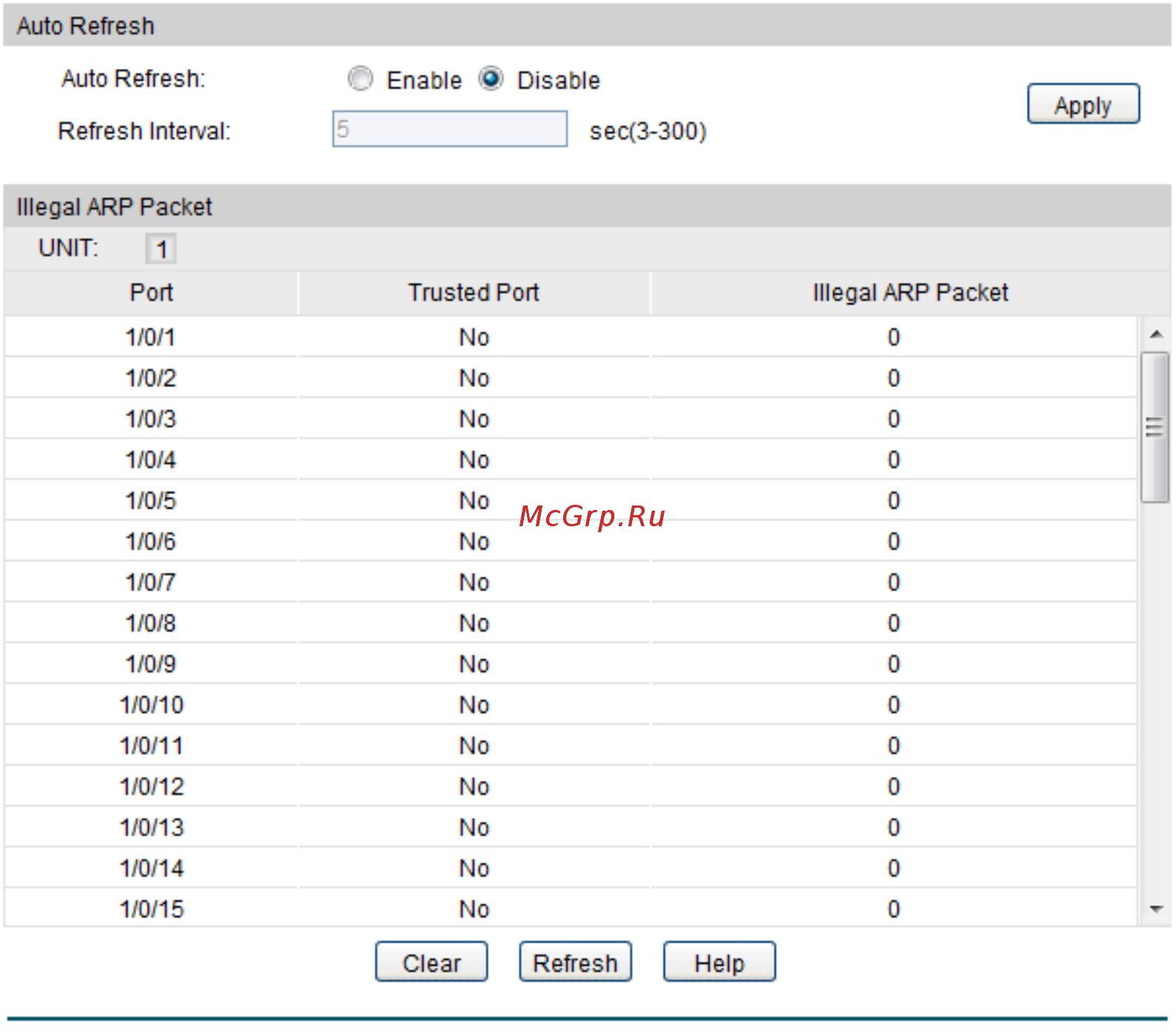

Figure 14-21 ARP Statistics

The following entries are displayed on this screen:



Auto Refresh

Auto Refresh:

Enable/Disable the Auto Refresh feature.

Refresh Interval:

Specify the refresh interval to display the ARP Statistics.



Illegal ARP Packet

Port:

Displays the port number.

Trusted Port:

Indicates the port is an ARP Trusted Port or not.

Illegal ARP Packet:

Displays the number of the received illegal ARP packets.

14.6 ND Detection

 ND Brief Introduction

IPv6 Neighbor Discovery (ND) protocol uses five types of ICMPv6 messages to implement the

following functions:

• Address resolution

291
