Tp-Link T2600G-28MPS (TL-SG3424P) [162/379] Port config

Last Listener Query

Count:

Enter the number of MASQs that the switch sends before aging

out a multicast address when there is no IGMP report response.



IGMP Snooping Status

Description:

Displays IGMP Snooping status.

Member:

Displays the member of the corresponding status.

9.1.2 Port Config

On this page you can enable or disable the IGMP Snooping and Fast Leave feature for ports of

the switch.

Choose the menu Multicast →IGMP Snooping →Port Config to load the following page.

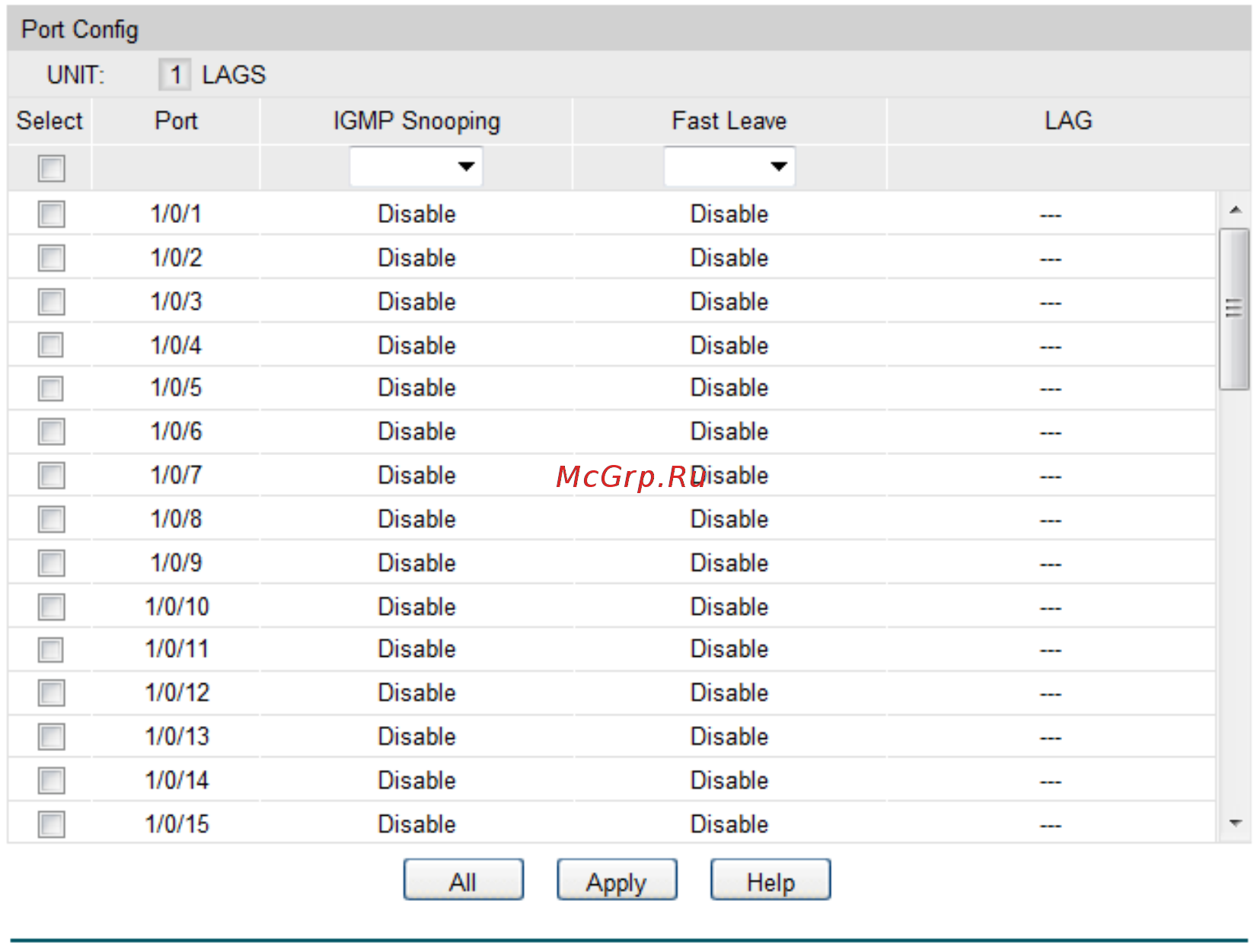

Figure 9-6 Port Config

The following entries are displayed on this screen:



Port Config

UNIT:1/LAGS: Click 1 to configure the physical ports. Click LAGS

to configure

the link aggregation groups.

Select:

Select the desired port for IGMP Snooping feature

configuration. It is multi-optional.

Port:

Displays the port of the switch.

IGMP Snooping:

Select Enable/Disable IGMP Snooping for the desired port.

150
