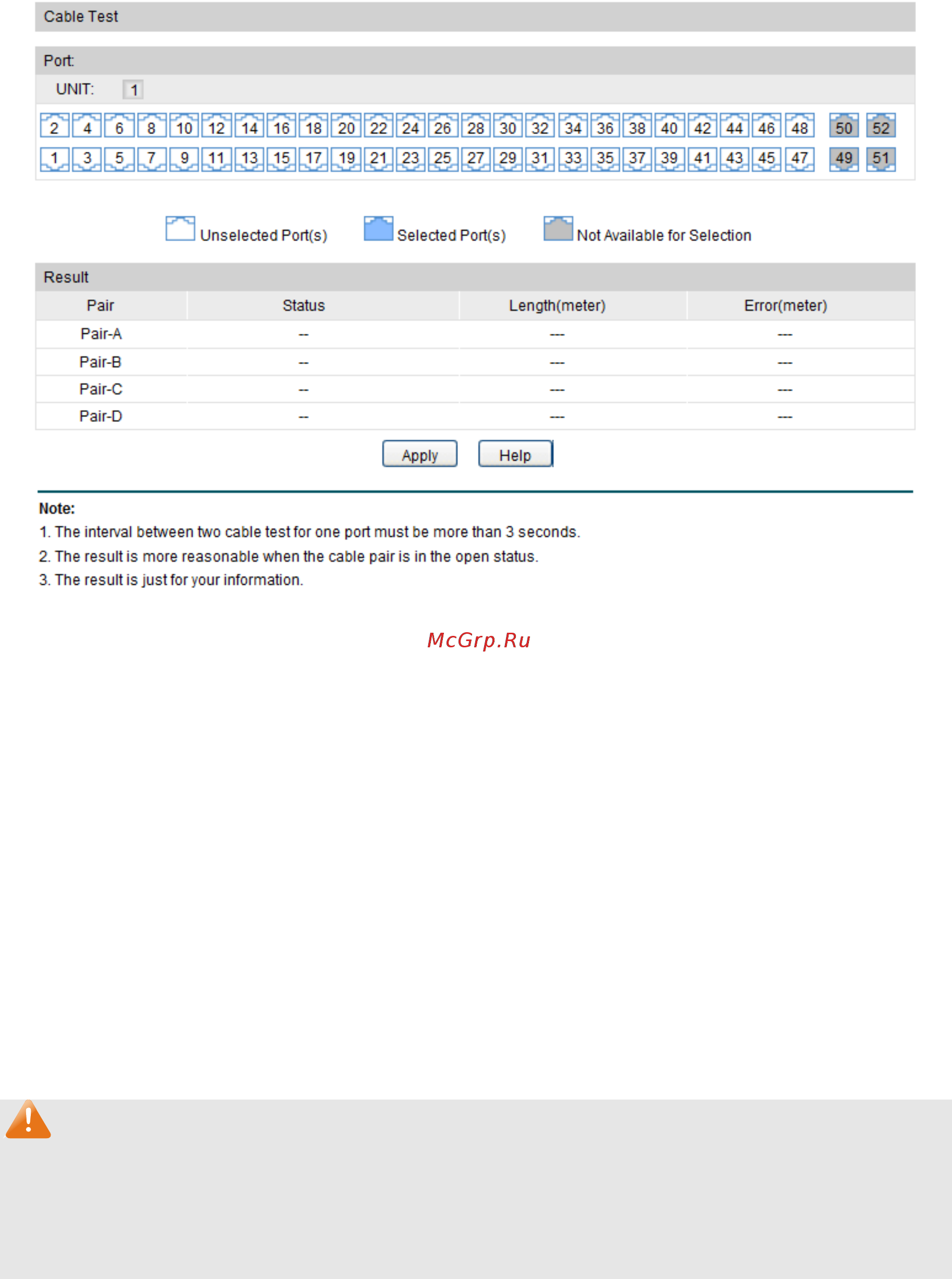

Figure 17-5 Cable Test

The following entries are displayed on this screen:



Cable Test

Port:

Select the port for cable testing.

Pair:

Displays the Pair number.

Status

Displays the connection status of the cable connected to the port.

The test results of the cable include normal, close, open or

impedance.

Length

: If the connection status is

normal, here displays the length range of

the cable.

Error

If the connection status is close, open or impedance, here displays

the error length of the cable.

Note:

1. The interval between two cable tests for one port must be more than 3 seconds.

2. The result is more reasonable when the cable pair is in the open status.

3. The result is just for your information.

17.5 Network Diagnostics

This switch provides Ping test and Tracert test functions for network Diagnostics.
