Aggregate Arithmetic will apply to the source and
destination IP addresses of the packets.
LAG Table
Select:
Select the desired LAG. It is multi-optional.
Group Number:
Displays the LAG number here.
Description:
Displays the description of LAG.
Member:
Displays the LAG member.
Operation
: Allows you to view or modify the information for each LAG.
• Edit: Click to modify the settings of the LAG.
•
Detail: Click to get the information of the LAG.

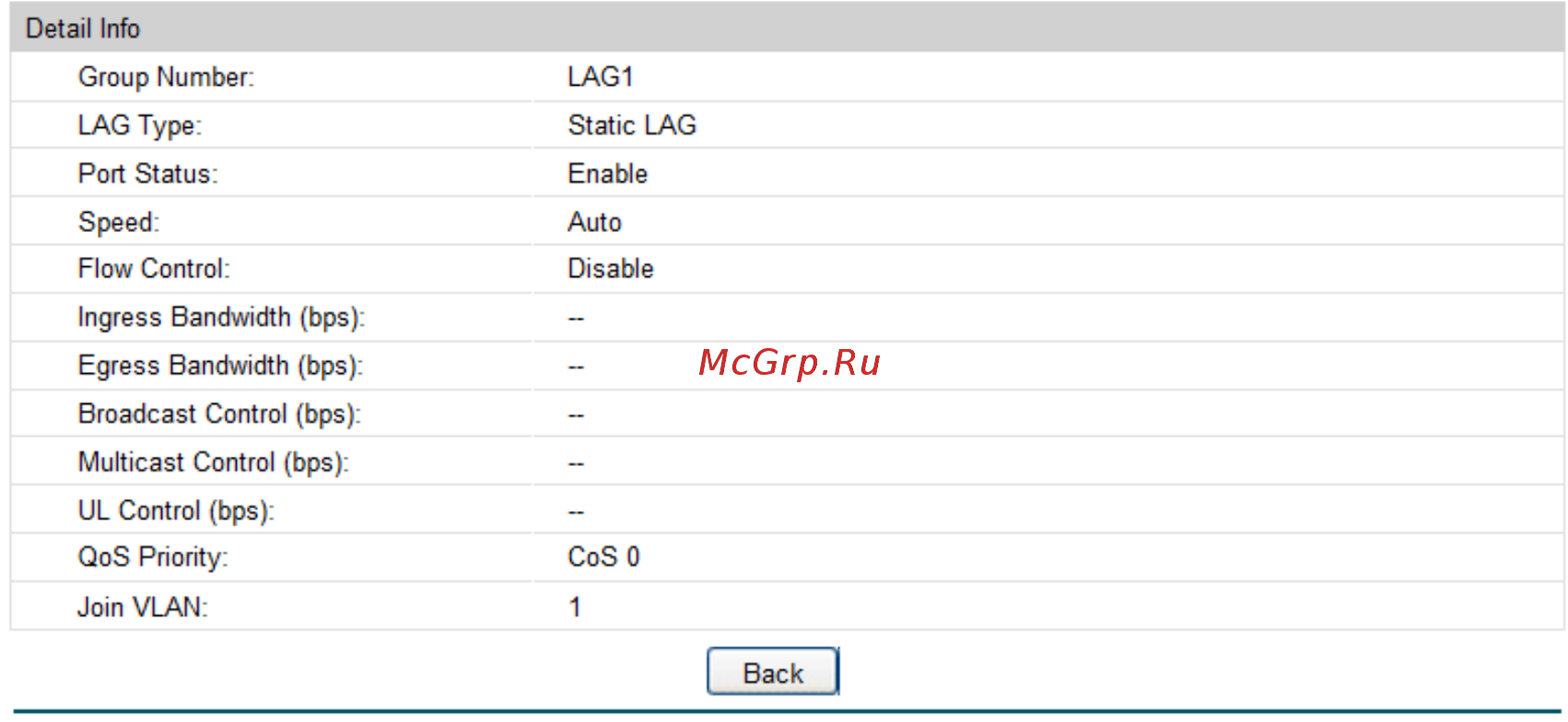

Click the Detail button for the detailed information of your selected LAG.
Figure 5-9 Detailed Information
5.2.2 Static LAG
On this page, you can manually configure the LAG.
Choose the menu Switching→LAG→Static LAG to load the following page.
