Choose the menu VLAN→MAC VLAN→Port Enable to load the following page.

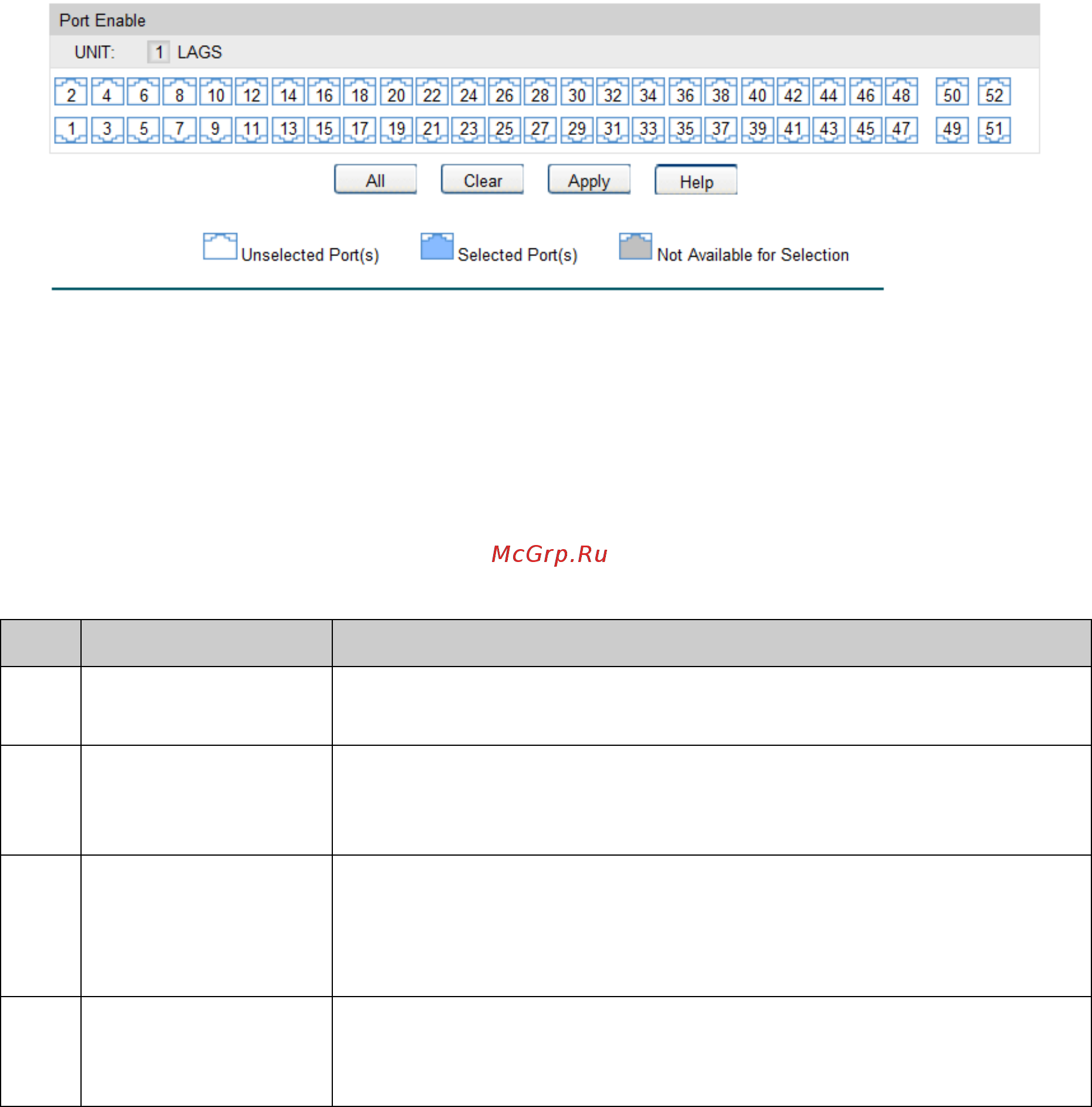

Figure 6-8 Enable Port for MAC VLAN

UNIT:

Click 1 to configure the physical ports. Click LAGS

to configure

the link aggregation groups.

Select your desired port for MAC VLAN function. All the ports are disabled for MAC VLAN

function by default.

 Configuration Procedure:

Step

Operation

Description

Set the link type for

port.

Required. On the VLAN→802.1Q VLAN→Port Config page, set

the link type for the port basing on its connected device.

Create VLAN. Required. On the VLAN→802.1Q VLAN→VLAN Config page, click

the Create

button to create a VLAN. Enter the VLAN ID and the

description for the VLAN. Meanwhile, specify its member ports.

Create MAC VLAN. Required. On the VLAN→MAC VLAN page, create the MAC VLAN.

For the device in a MAC VLAN, it’s required to set its connected

port of switch to be a member of this VLAN so as to ensure the

normal communication.

Select your desired

ports for MAC

VLAN feature.

Required. On the VLAN→MAC VLAN→Port Enable page, select

and enable the desired ports for MAC VLAN feature.

6.4 Application Example for MAC VLAN

 Network Requirements

 Switch A and switch B are connected to meeting room A and meeting room B respectively,

and the two rooms are for all departments;

 Notebook A and Notebook B, special for meeting room, are of two different departments;

 The two departments are in VLAN10 and VLAN20 respectively. The two notebooks can

just access the server of their own departments, that is, Server A and Server B, in the two

meeting rooms;

 The MAC address of Notebook A is 00-19-56-8A-4C-71, Notebook B’s MAC address is

00-19-56-82-3B-70.

 Network Diagram
