Choose the menu System → System Tools → Boot Config to load the following page.

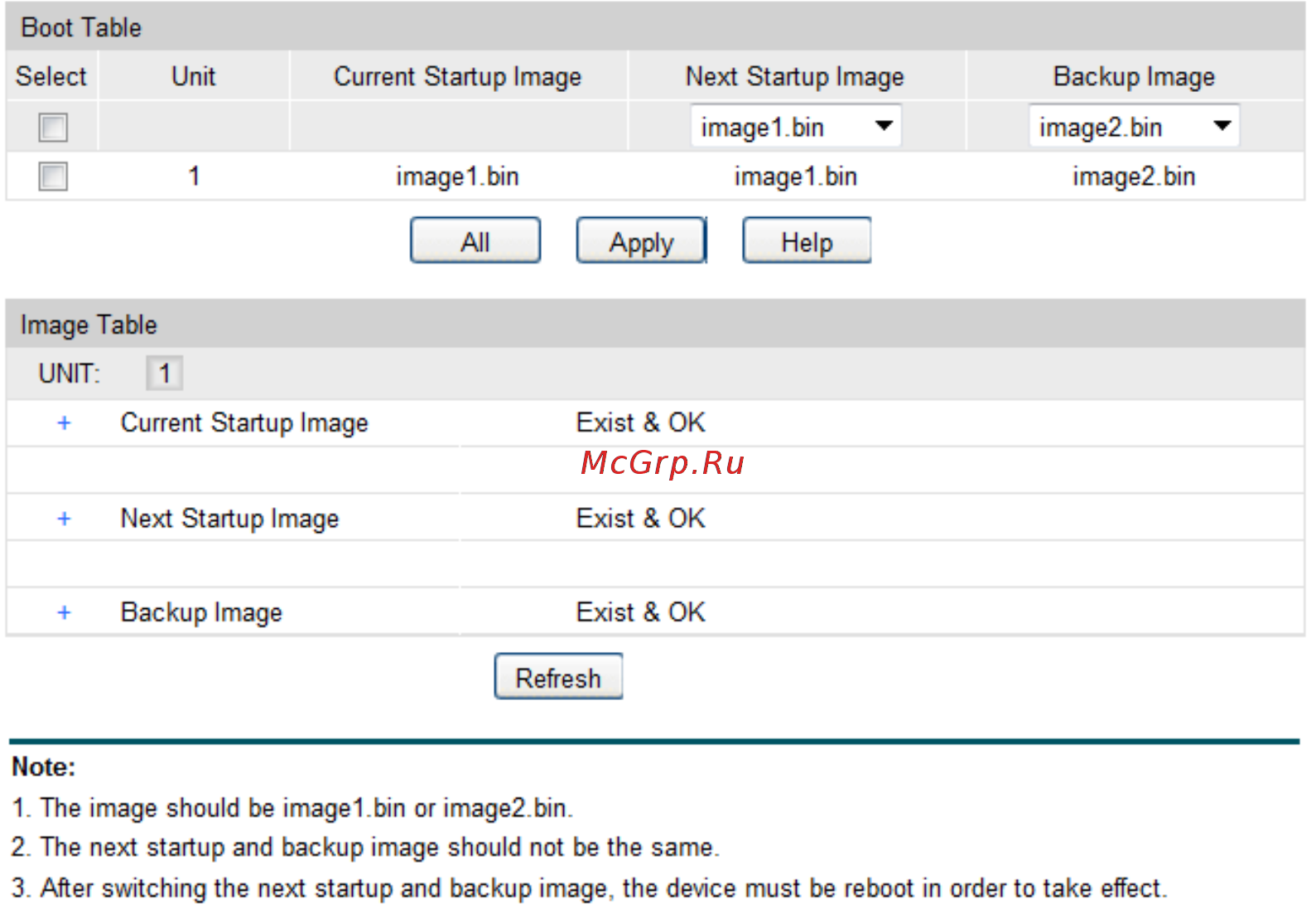

Figure 4-10 Boot Config
The following entries are displayed on this screen:
Boot Table
Select:
Select the unit(s).
Unit:
Displays the unit ID.
Current Startup
Image:
Displays the current startup image.
Next Startup Image:
Select the next startup image.
Backup Image:
Select the backup boot image.
4.3.2 Config Restore
On this page you can upload a backup configuration file to restore your switch to this previous
configuration.
