Tp-Link T2600G-28MPS (TL-SG3424P) [26/379] Chapter 3 login to the switch

Chapter 3 Login to the Switch

3.1 Login

1) To access the configuration utility, open a web-browser and type in the default address

http://192.168.0.1 in the address field of the browser, then press the Enter key.

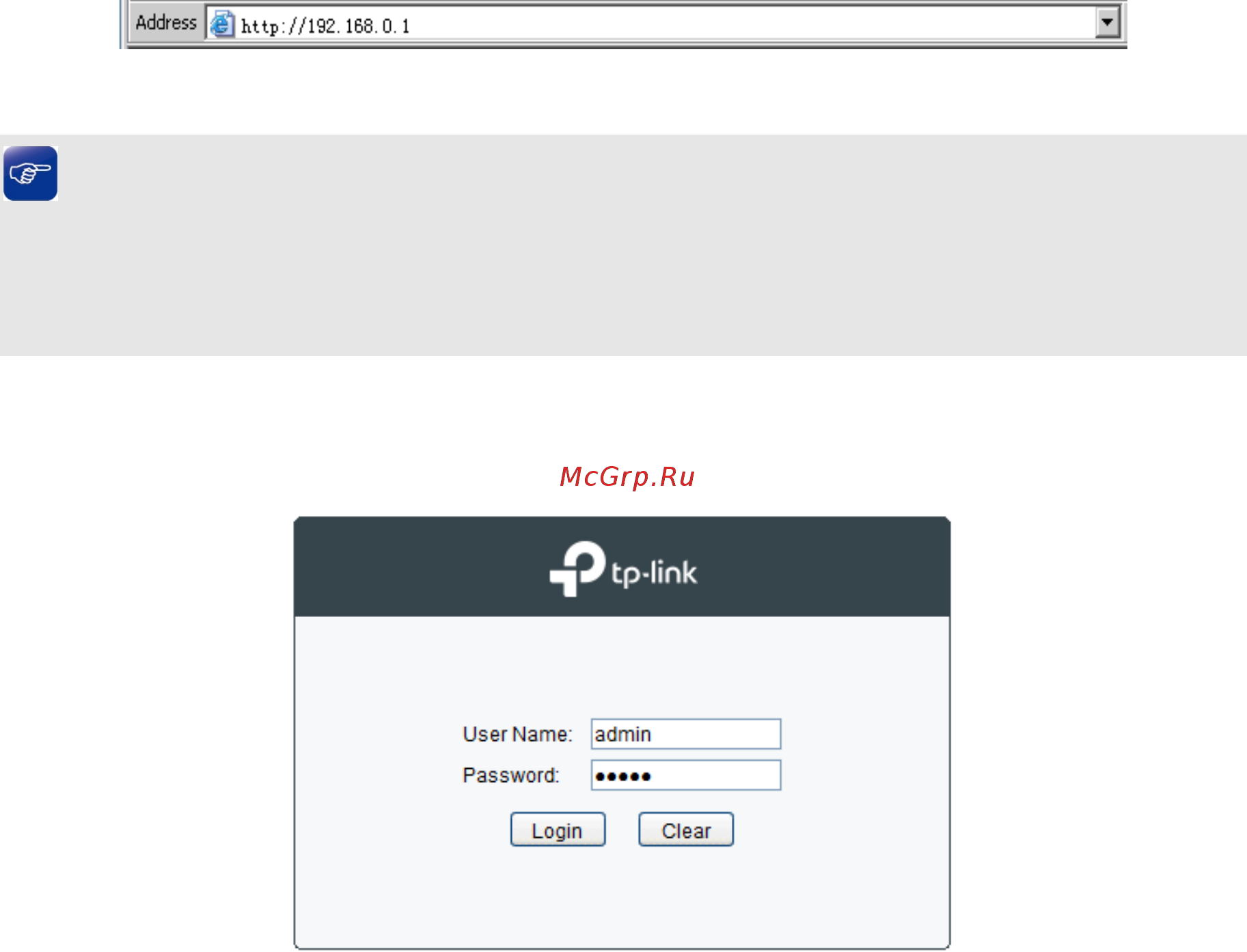

Figure 3-1 Web-browser

Tips:

To log in to the switch, the IP address of your PC should be set in the same subnet addresses

of the switch. The IP address is 192.168.0.x ("x" is any number from 2 to 254), Subnet Mask is

255.255.255.0.

2) After a moment, a login window will appear, as shown in Figure 3-2. Enter admin for the User

Name and Password, both in lower case letters. Then click the Login button or press the

Enter key.

Figure 3-2 Login
