Tp-Link T2600G-28MPS (TL-SG3424P) [49/379] Application example 2 for ssh
![Tp-Link T2600G-28MPS (TL-SG3424P) [49/379] Application example 2 for ssh](/views2/1210070/page49/bg31.png)

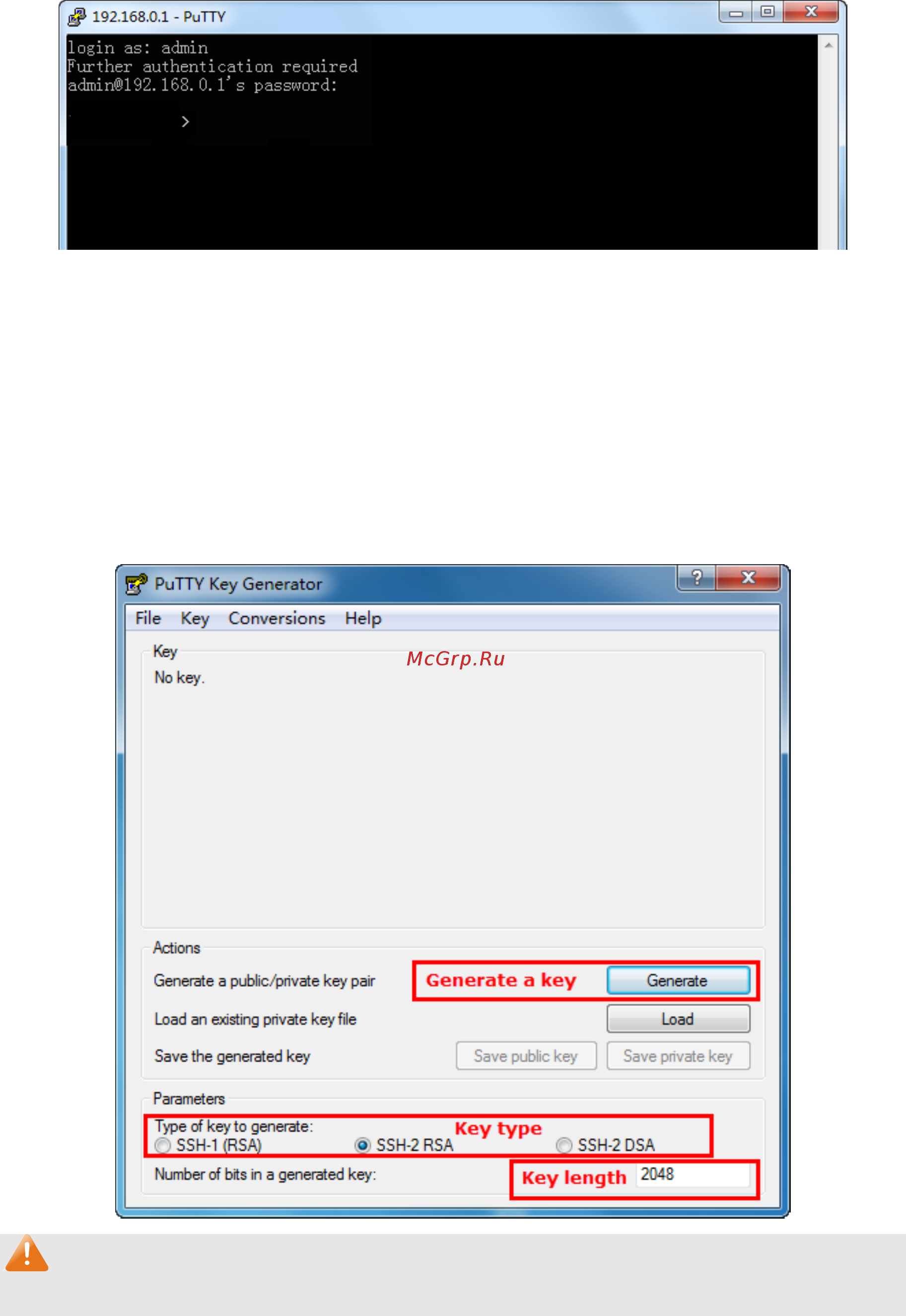

2. Click the Open button in the above figure to log on to the switch. Enter the login user name
and password, and then you can continue to configure the switch.
Application Example 2 for SSH:
Network Requirements
1. Log on to the switch via key authentication using SSH and the SSH function is enabled on
the switch.
2. PuTTY client software is recommended.
Configuration Procedure
1. Select the key type and key length, and generate SSH key.
Note:
1. The key length is in the range of 512 to 3072 bits.
T
2600G-52TS
37
