The Voice VLAN function can be implemented on Global Config, Port Config and OUI Config

pages.

11.3.1 Global Config

On this page, you can configure the global parameters of the voice VLAN, including VLAN ID

and aging time.

Choose the menu QoS→Voice VLAN→Global Config to load the following page.

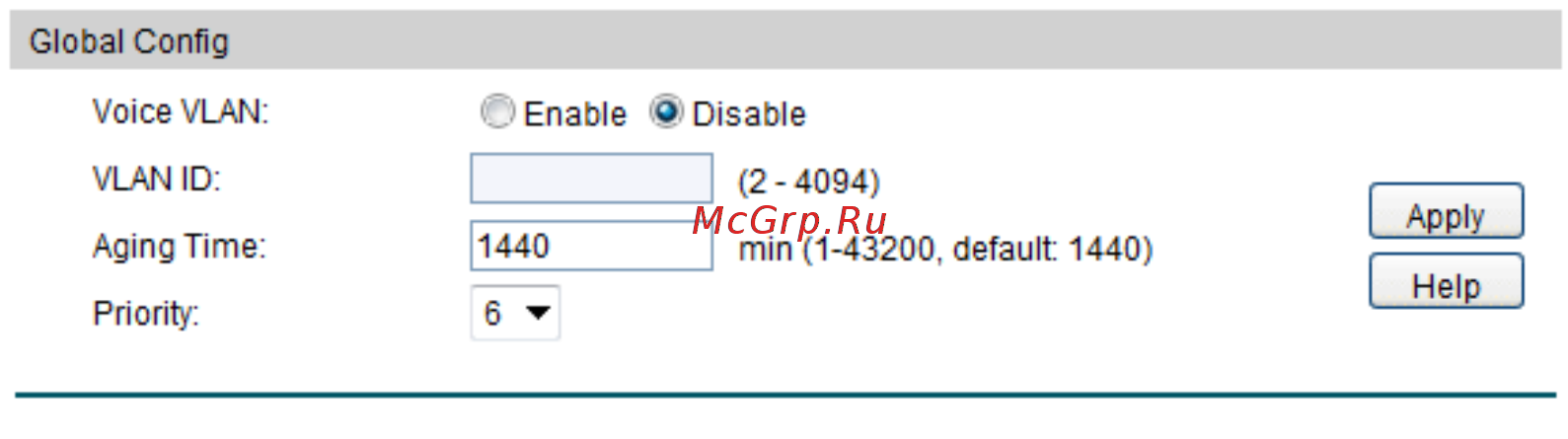

Figure 11-12 Global Configuration

The following entries are displayed on this screen:



Global Config

Voice VLAN:

Select Enable/Disable Voice VLAN function.

VLAN ID:

Enter the VLAN ID of the voice VLAN.

Aging Time: Specifies the living time o

f the member port in auto mode after

the OUI address is aging out.

Priority:

Select the priority of the port when sending voice data.

11.3.2 Port Config

Before the voice VLAN function is enabled, the parameters of the ports in the voice VLAN

should be configured on this page.

Choose the menu QoS→Voice VLAN→Port Config to load the following page.
