16.4.3 Local Info
On this page you can see all ports' LLDP-MED configuration.
Choose the menu LLDP→LLDP-MED→Local Info to load the following page.

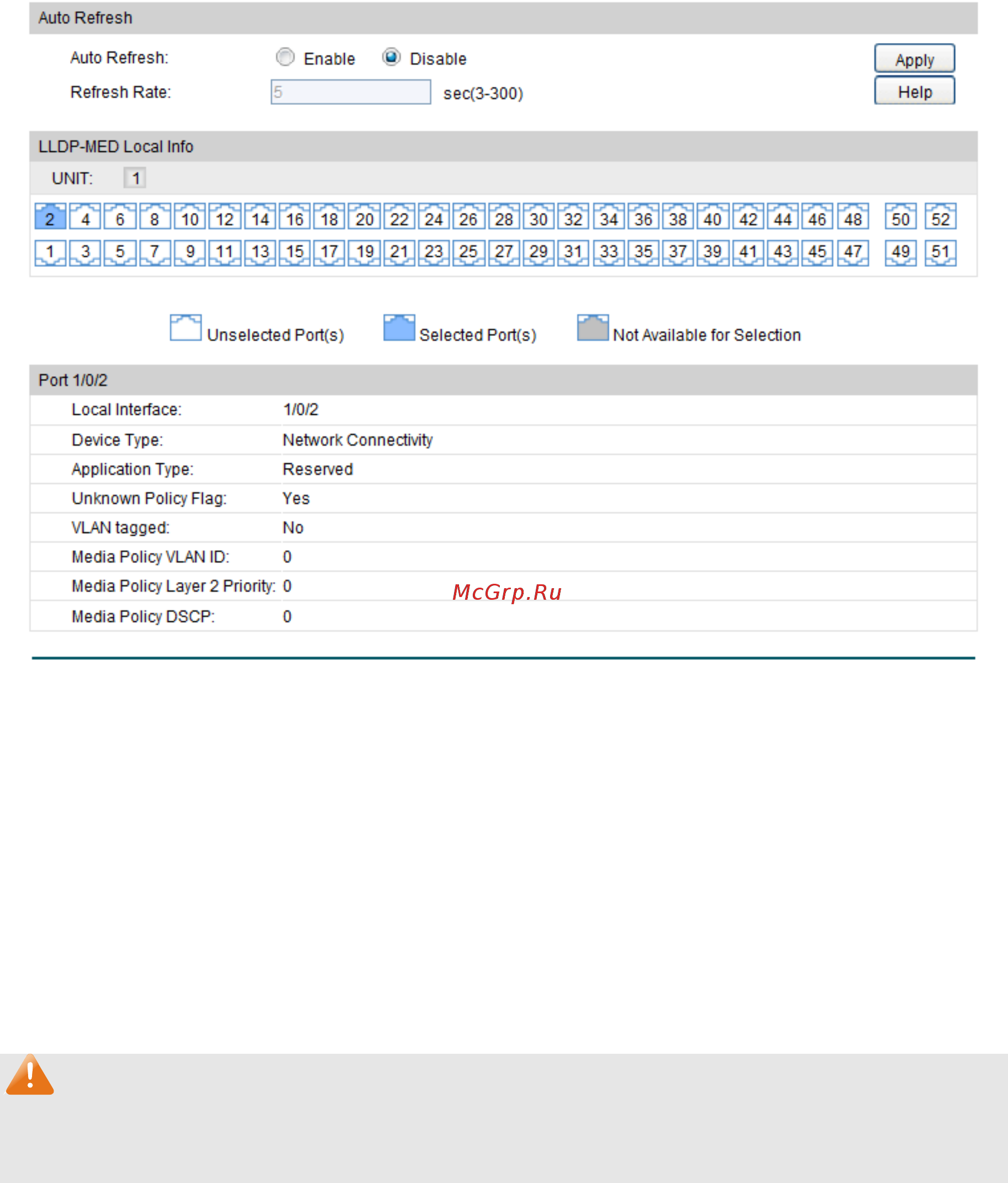

Figure 16-8 LLDP-MED Local Information
The following entries are displayed on this screen:
Auto Refresh
Auto Refresh:
Enable/Disable the auto refresh function.
Refresh Rate:
Specify the auto refresh rate.
LLDP-MED Local Info
Select the local port number to display its LLDP information.
Note:
For the switches with PoE function, the local information displayed on the page also include
Power Type, Power Source, Power Priority and Available Power Value.
