7.5 Application Example for STP Function

 Network Requirements

 Switch A, B, C, D and E all support MSTP function.

 A is the central switch.

 B and C are switches in the convergence layer. D, E and F are switches in the access layer.

 There are 6 VLANs labeled as VLAN101-VLAN106 in the network.

 All switches run MSTP and belong to the same MST region.

 The data in VLAN101, 103 and 105 are transmitted in the STP with B as the root bridge. The

data in VLAN102, 104 and 106 are transmitted in the STP with C as the root bridge.

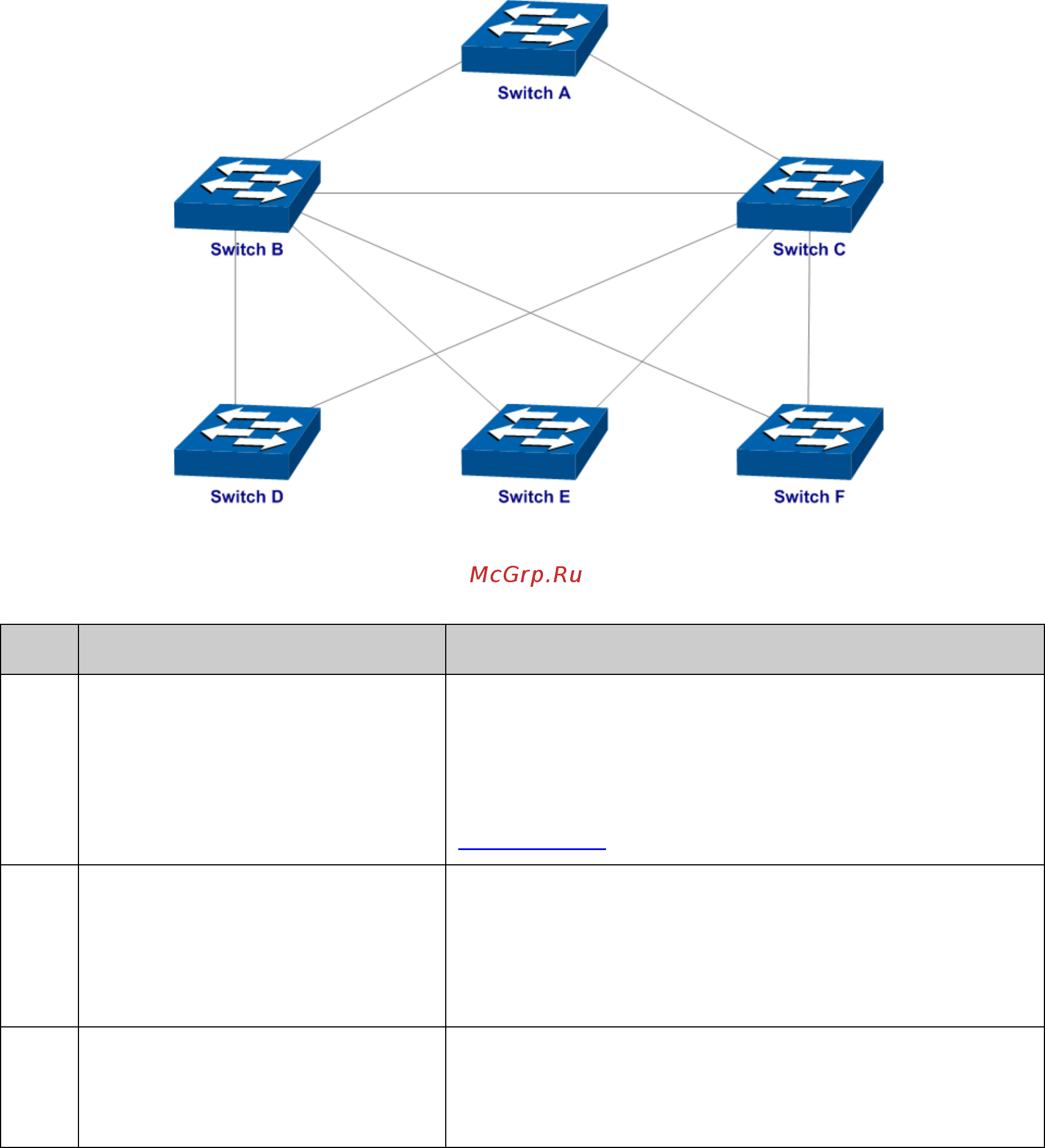

 Network Diagram

 Configuration Procedure

 Configure Switch A:

Step

Operation

Description

1 Configure ports On VLAN→802.1Q VLAN→VLAN Config page,

configure the link type of the related ports as

Tagged, and add the ports to VLAN101-VLAN106.

The detailed instructions can be found in the section

802.1Q VLAN.

2 Enable STP function On Spanning Tree→STP Config→STP Config page,

enable STP function and select MSTP version.

On Spanning Tree→STP Config→Port Config page,

enable MSTP function for the port.

3 Configure the region name and

the revision of MST region

On Spanning Tree→MSTP Instance→Region Config

page, configure the region as TP-Link and keep the

default revision setting.
