13.2.3 MAC ACL

MAC ACLs analyze and process packets based on a series of match conditions, which can be

the source MAC addresses and destination MAC addresses carried in the packets.

Choose the menu ACL→ACL Config→MAC ACL to load the following page.

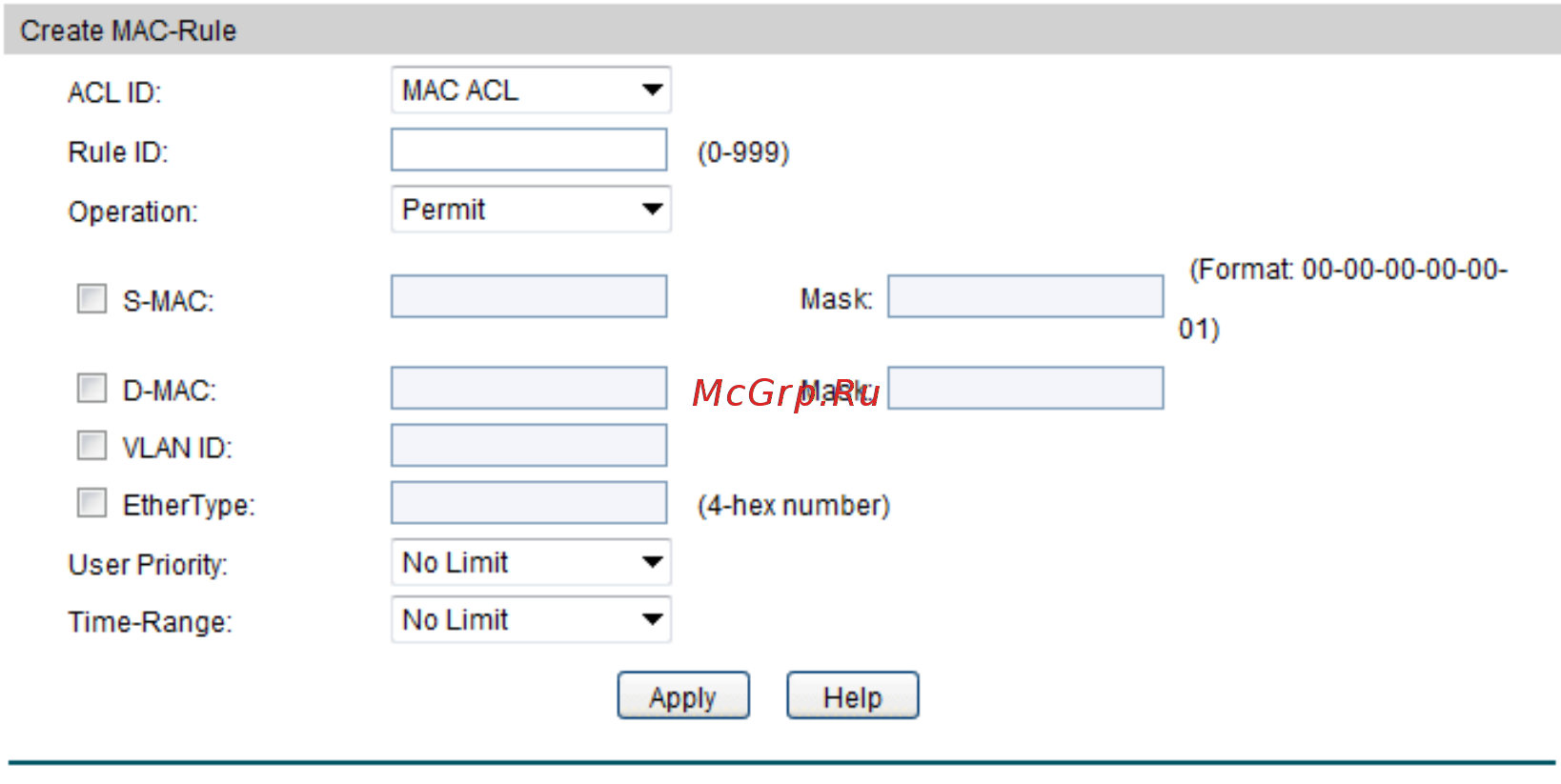

Figure 13-6 Create MAC Rule

The following entries are displayed on this screen:



Create MAC-Rule

ACL ID:

Select the desired MAC ACL for configuration.

Rule ID:

Enter the rule ID.

Operation:

Select the operation for the switch to process packets which

match the rules.

 Permit: Forward packets.



Deny: Discard Packets.

S-MAC:

Enter the source MAC address contained in the rule.

D-MAC:

Enter the destination MAC address contained in the rule.

MASK:

Enter MAC address mask. If it is set to 1, it must strictly match

the address.

VLAN ID:

Enter the VLAN ID contained in the rule.

EtherType:

Enter EtherType contained in the rule.

User Priority: Select the user priority contain

ed in the rule for the tagged

packets to match.

Time-Range:

Select the time-range for the rule to take effect.
