Tp-Link T2600G-28MPS (TL-SG3424P) [55/379] Port mirror

Port:

Displays the port number.

Type:

Displays the medium type of the port.

Description:

Give a description to the port for identification.

Status

: A

llows you to Enable/Disable the port. When Enable is

selected, the port/LAG can forward the packets normally.

Speed

Select the Speed mode for the port. The device connected to

the switch should be in the same Speed and Duplex mode with

the switch. When

'Auto' is selected, the Speed mode will be

determined by auto negotiation.

Duplex:

Select the Duplex mode for the port. When ‘Auto’ is selected,

the Duplex mode will be determined by auto negotiation.

Flow Control

: Allows you to Enable/Disable the Flow

Control feature. When

Flow Control is enabled, the switch can synchronize the speed

with its peer to avoid the packet loss caused by congestion.

Jumbo:

Allows you to Enable/Disable the Jumbo feature. The default

maximum transmission unit (MTU) size is 151

8 bytes. When

Jumbo is enabled, the MTU size is 9216 bytes.

LAG:

Displays the LAG number which the port belongs to.

Note:

1. The switch cannot be managed through the disabled port. Please enable the port which is

used to manage the switch.

2. The SFP ports support 1000M SFP module connection only.

5.1.2 Port Mirror

Port Mirror, the packets obtaining technology, functions to forward copies of packets from

one/multiple ports (mirrored port) to a specific port (mirroring port). Usually, the mirroring port

is connected to a data diagnose device, which is used to analyze the mirrored packets for

monitoring and troubleshooting the network.

Choose the menu Switching→Port→Port Mirror to load the following page.

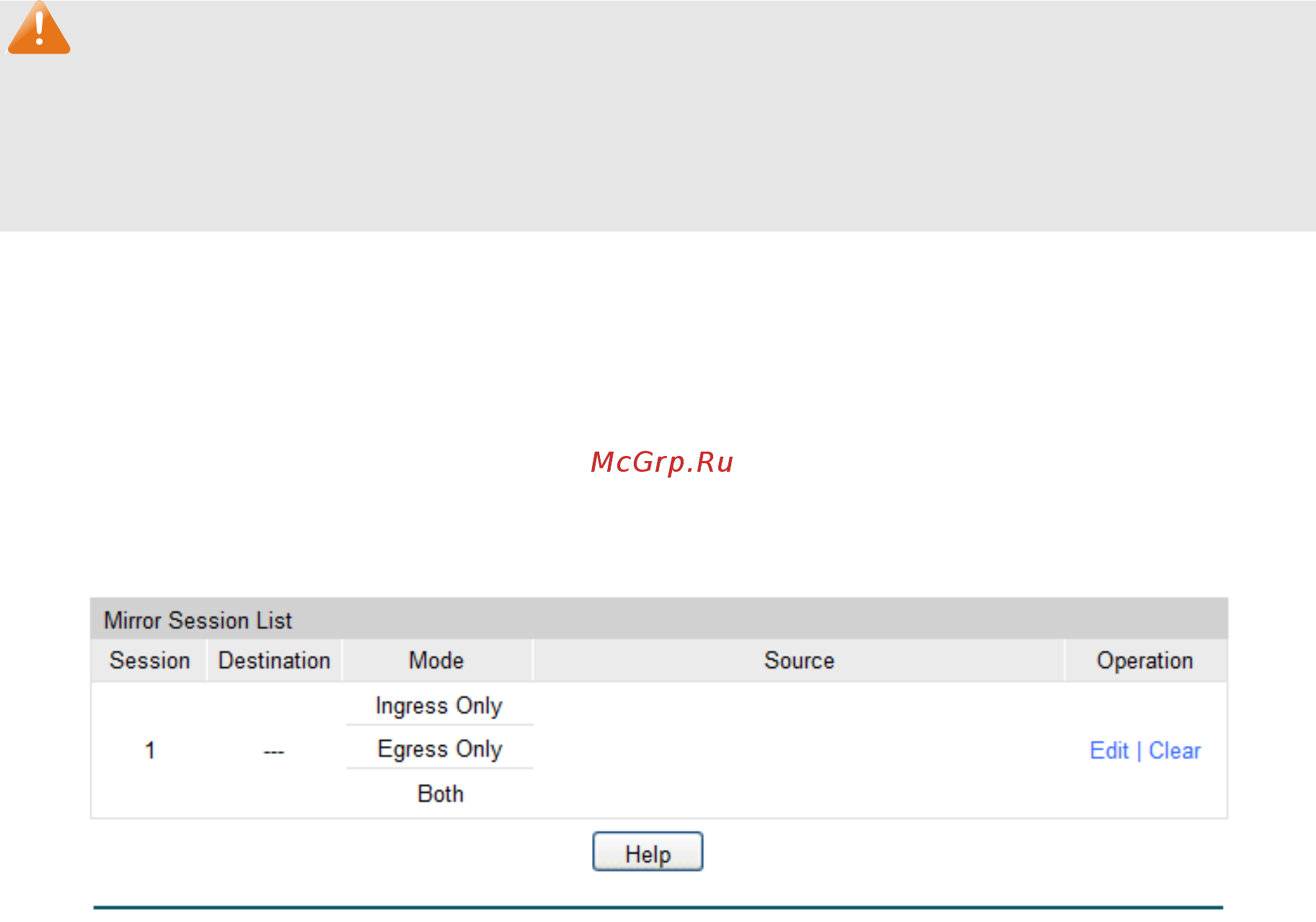

Figure 5-2 Mirror Group List
