Tp-Link T2600G-28MPS (TL-SG3424P) [93/379] Protocol group table

Protocol Type

Type value

LACP

0x8809

802.1X

0x888E

Table 6-1 Protocol types in common use

The packet in Protocol VLAN is processed in the following way:

1. When receiving an untagged packet, the switch matches the packet with the current

Protocol VLAN. If the packet is matched, the switch will add a corresponding Protocol

VLAN tag to it. If no Protocol VLAN is matched, the switch will add a tag to the packet

according to the PVID of the received port. Thus, the packet is assigned automatically to

the corresponding VLAN for transmission.

2. When receiving tagged packet, the switch will process it basing on the 802.1Q VLAN. If the

received port is the member of the VLAN to which the tagged packet belongs, the packet

will be forwarded normally. Otherwise, the packet will be discarded.

3. If the Protocol VLAN is created, please set its enabled port to be the member of

corresponding 802.1Q VLAN so as to ensure the packets forwarded normally.

6.5.1 Protocol Group Table

On this page, you can create Protocol VLAN and view the information of the current defined

Protocol VLANs.

Choose the menu VLAN→Protocol VLAN→Protocol Group Table to load the following page.

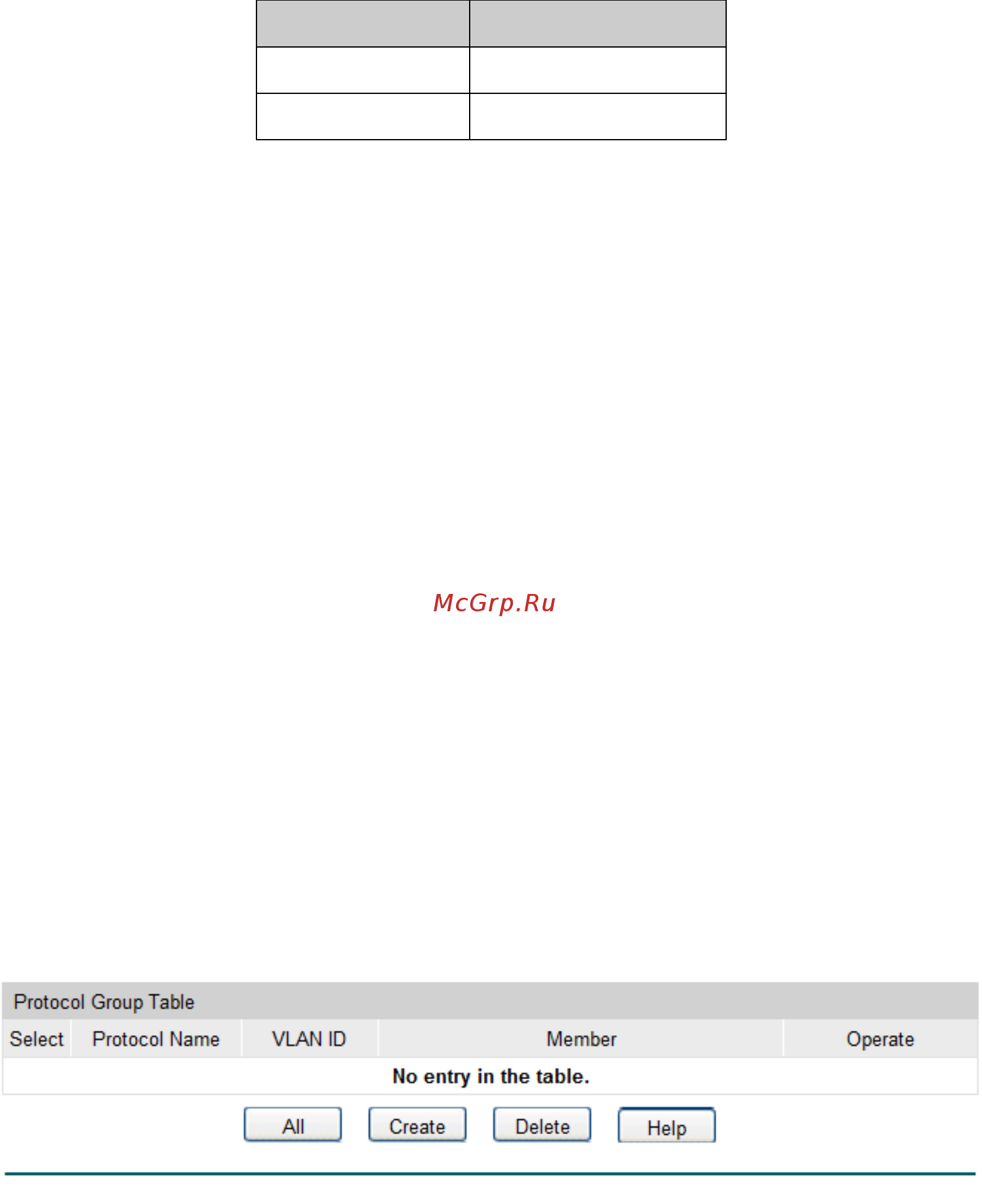

Figure 6-9 Create Protocol VLAN

The following entries are displayed on this screen:



Protocol Group Table

Select:

Select the desired entry. It is multi-optional.

Protocol Name:

Displays the protocol of the protocol group.

VLAN ID:

Displays the corresponding VLAN ID of the protocol.

Member:

Displays the member of the protocol group.

Operate:

Click the Edit button to modify the settings of the entry. And click

the Apply button to apply your settings.
