Variable Response

OAMPDUs:

Displays the number of variable response OAMPDUs that have

been transmitted or received on the port.

Loopback Control

OAMPDUs:

Displays the number of loopback control OAMPDUs that have

been transmitted or received on the port.

Organization

Specific OAMPDUs:

Displays the number of organization specific OAMPDUs that

have been transmitted or received on the port.

Unsupported

OAMPDUs:

Displays the number of unsupported OAMPDUs that have been

transmitted or received on the port.

Frames Lost Due To

OAM:

Displays the number of frames that would otherwise be

transmitted by the OAM sublayer, but did not due to an internal

OAM sublayer transmit error.

8.5.2 Event Log

On this page, you can view the detailed Ethernet OAM event log information of a specific port.

The device will recount the numbers every time you click the clear button or the device is

rebooted.

Choose the menu Ethernet OAM→Statistics→Event Log to load the following page.

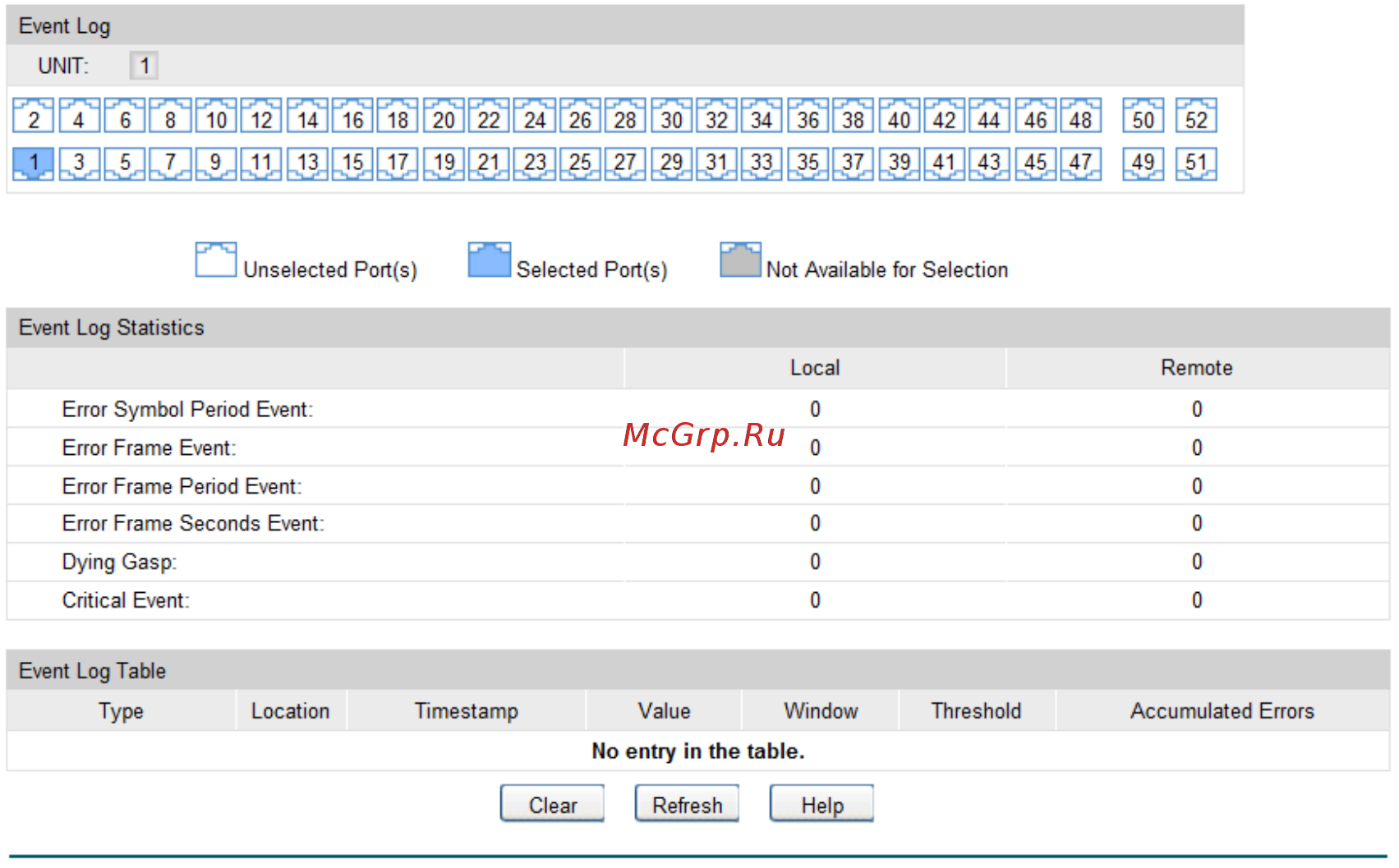

Figure 8-10 Event Log

The following entries are displayed on this screen:



Event Log Statistics

Port Select:

Select a desired port from the port panel.

Local: Displays the number of link events that have occurred on the

local link.

134
