Select:
Select the desired entry to delete the corresponding binding
ACL.
Index:
Displays the index of the binding ACL.
ACL ID:
Displays the ID of the binding ACL.
Interface:
Displays the port number or VLAN ID bound to the ACL.
Direction:
Displays the binding direction.
13.4.2 Port Binding
On this page you can bind an ACL to a port.
Choose the menu ACL→ACL Binding→Port Binding to load the following page.

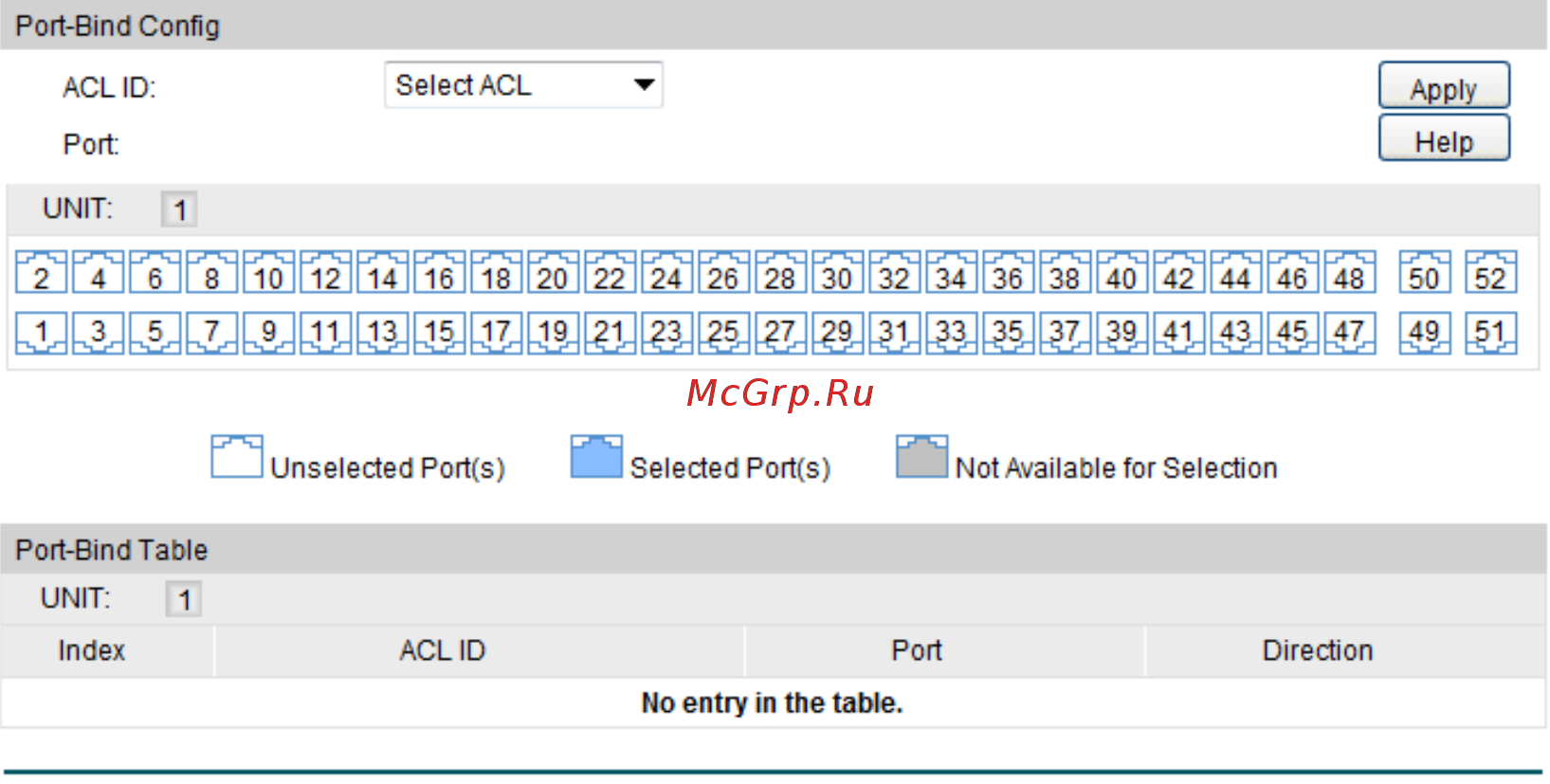

Figure 13-15 Bind the policy to the port
The following entries are displayed on this screen:
Port-Bind Config
ACL ID:
Select the ID of the ACL you want to bind.
Port:
Select the number of the port you want to bind.
Port-Bind Table
Index:
Displays the index of the binding ACL.
ACL ID:
Displays the ID of the binding ACL.
Port:
Displays the number of the port bound to the corresponding
ACL.
Direction:
Displays the binding direction.
260
