8.7 Application Example for DLDP
Network requirements
1. Device A and Device B are connected through two fiber pairs, which are cross-connected,
as shown in Figure 8-13.
2. The unidirectional link should be disconnected once being detected, and the ports shut
down by DLDP can be restored after the fiber pairs are correctly connected.
Network Diagram

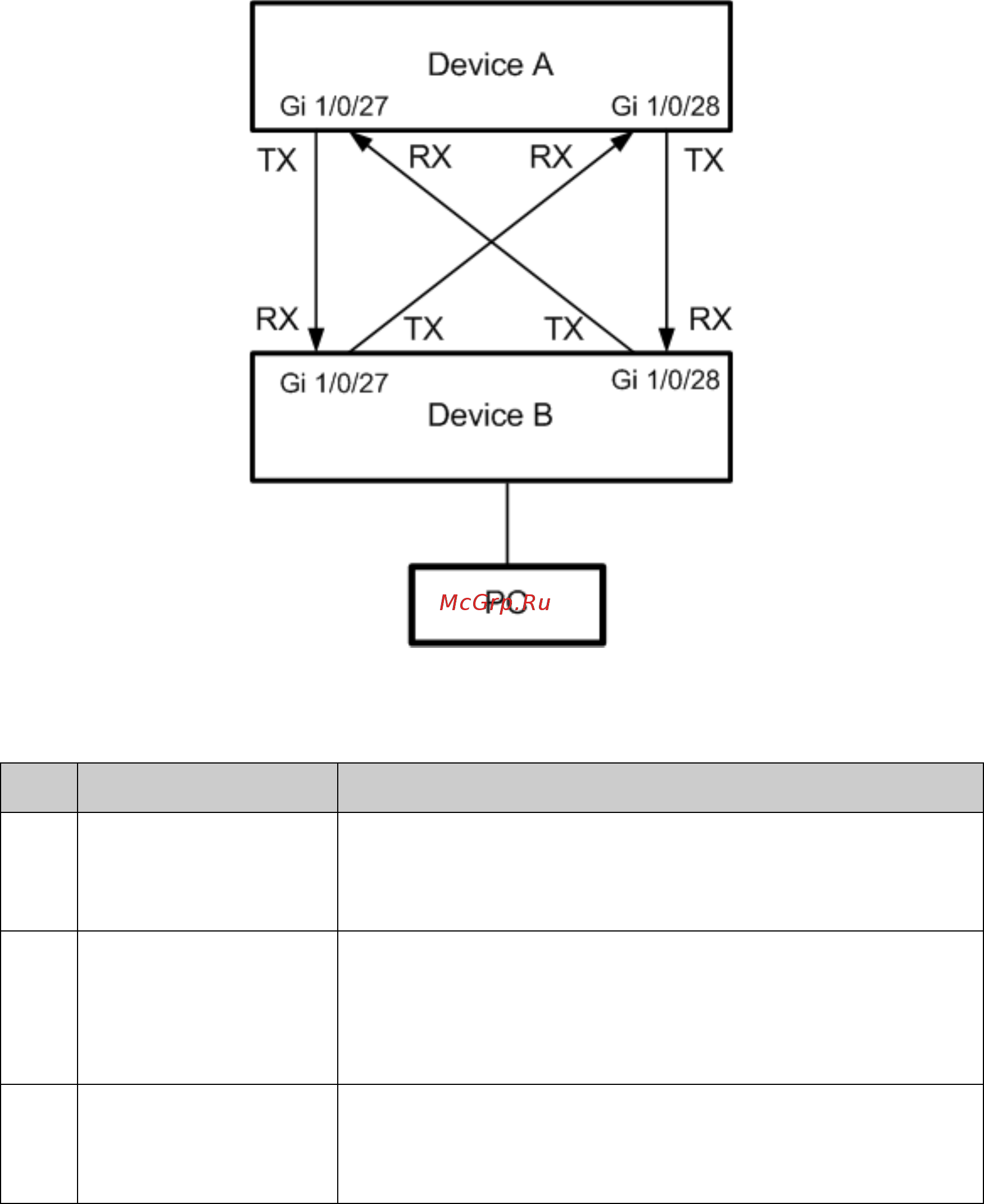

Figure 8-13 DLDP Application Example
Configuration Procedure
Step
Operation
Description
1
Enable DLDP globally. Required. On the Ethernet OAM→DLDP→DLDP Config
page, configure DLDP State as enable under the Global
Config tab in device A and B.
2
Ena
ble DLDP on the
specified ports.
Required. On the Ethernet OAM→DLDP→DLDP Config
page, configure DLDP State as enable on Gigabit
Ethernet ports 1/0/27 and 1/0/28 in the Port Config table
in device A and device B.
3
Configure Shut Mode. Required. On the Ethernet OAM→DLDP→DLDP Config
page, configure the Shut Mode as auto under the Global
Config tab in device A and B.
140
