Tp-Link T2600G-28MPS (TL-SG3424P) [236/379] Configuration procedure

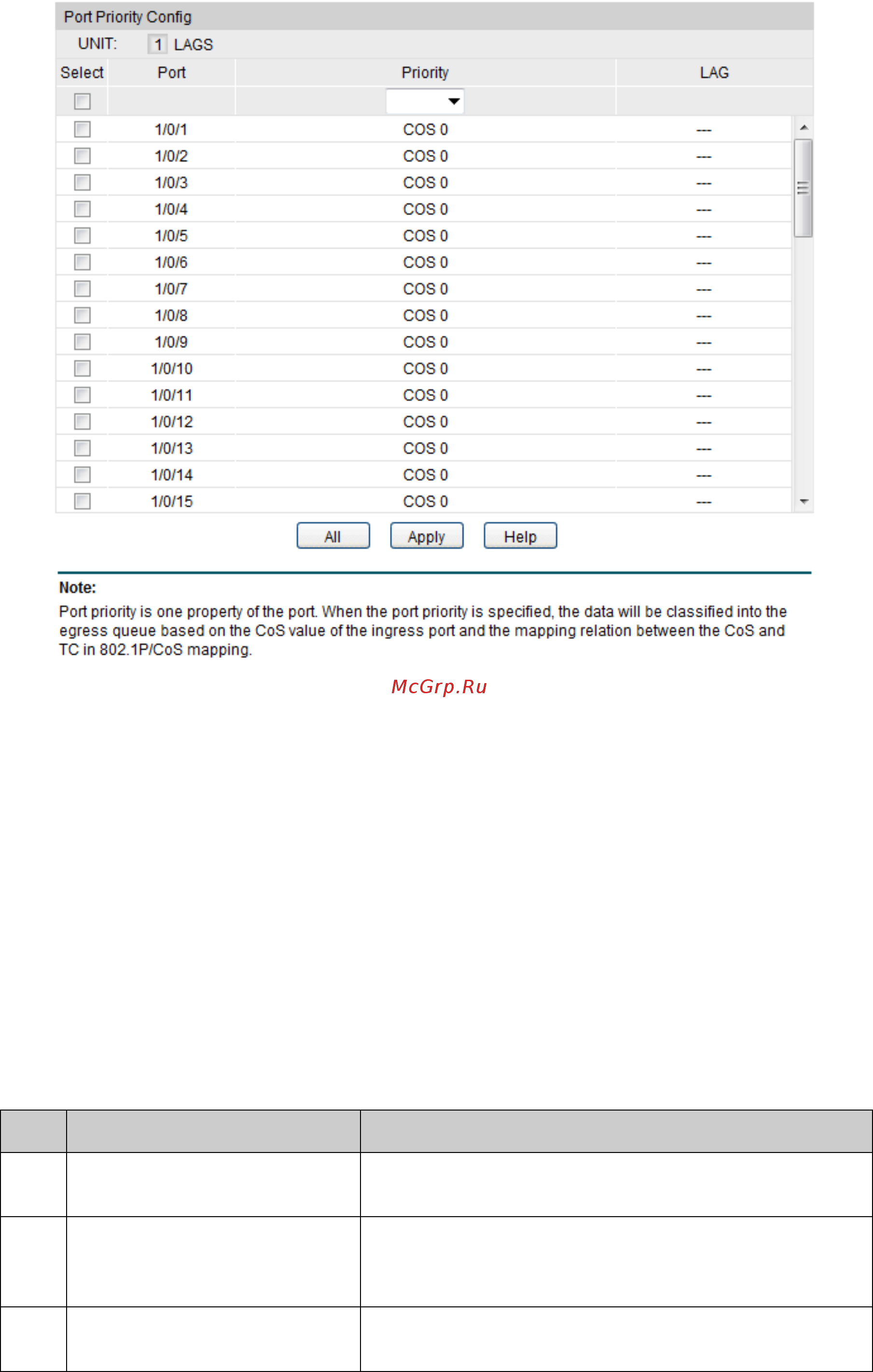

Figure 11-6 Port Priority Config

The following entries are displayed on this screen:



Port Priority Config

UNIT:1/LAGS: Click 1 to configure the physical ports. Click LAGS

to configure

the link aggregation groups.

Select:

Select the desired port to configure its priority. It is

multi-optional.

Port:

Displays the physical port number of the switch.

Priority:

Specify the priority for the port.

LAG:

Displays the LAG number which the port belongs to.

Configuration Procedure:

Step

Operation

Description

1 Select the port priority Required. On QoS→DiffServ→Port Priority page,

configure the port priority.

Configure the mapping

relation between the 802.1P

priority and TC

Required. On QoS→DiffServ→802.1P Priority page,

configure the mapping relation between the 802.1P

priority and TC.

3 Select a schedule mode Required. On QoS→DiffServ→Schedule Mode page,

select a schedule mode.
