Reinit Delay:

This parameter indicates the amount of delay from when LLDP

status becomes "disable" until re-

initialization will be attempted.

The default value is 2 seconds.

Notification

Interval:

Specify the interval of Trap message which will be sent from

local device to network management system.

The default value

is 5 seconds.

Fast Start Times:

When the port's LLDP state transforms from Disable (or

Rx_Only) to Tx&Rx (or Tx_Only)

, the fast start mechanism will be

enabled, that is, the transmit interval will be shorten to a second,

and several LLDPDUs will be sent out (the number of LLDPDUs

equals this parameter). The default value is 3.

16.1.2 Port Config

On this page you can configure all ports' LLDP parameters.

Choose the menu LLDP→Basic Config→Port Config to load the following page.

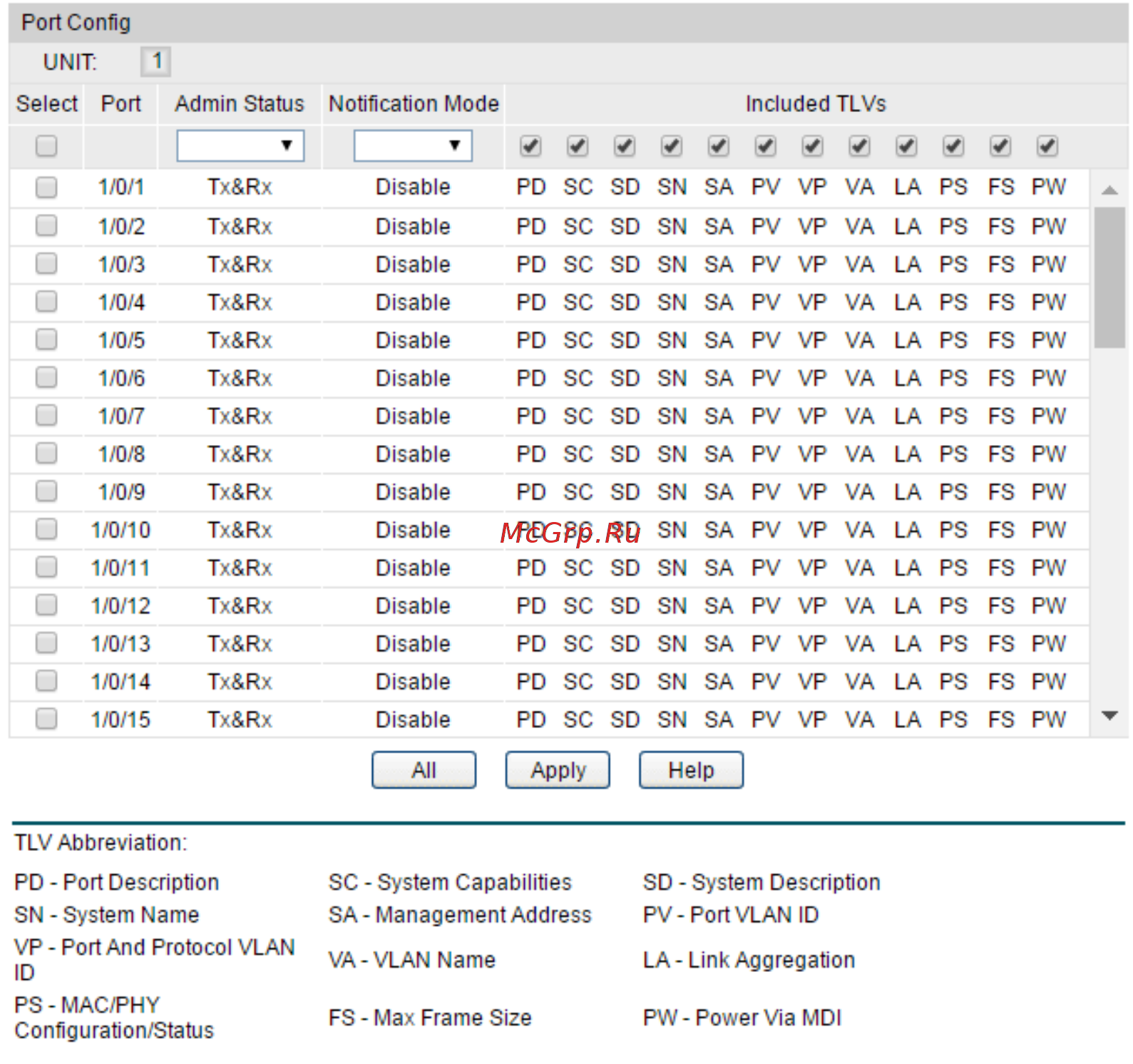

Figure 16-2 LLDP Port Config

The following entries are displayed on this screen:



LLDP Port Config

Port Select:

Select the desired port(s) to configure.

339
