8.1.2 Discovery Info

Choose the menu Ethernet OAM→ Basic Config→ Discovery Info to load the following page.

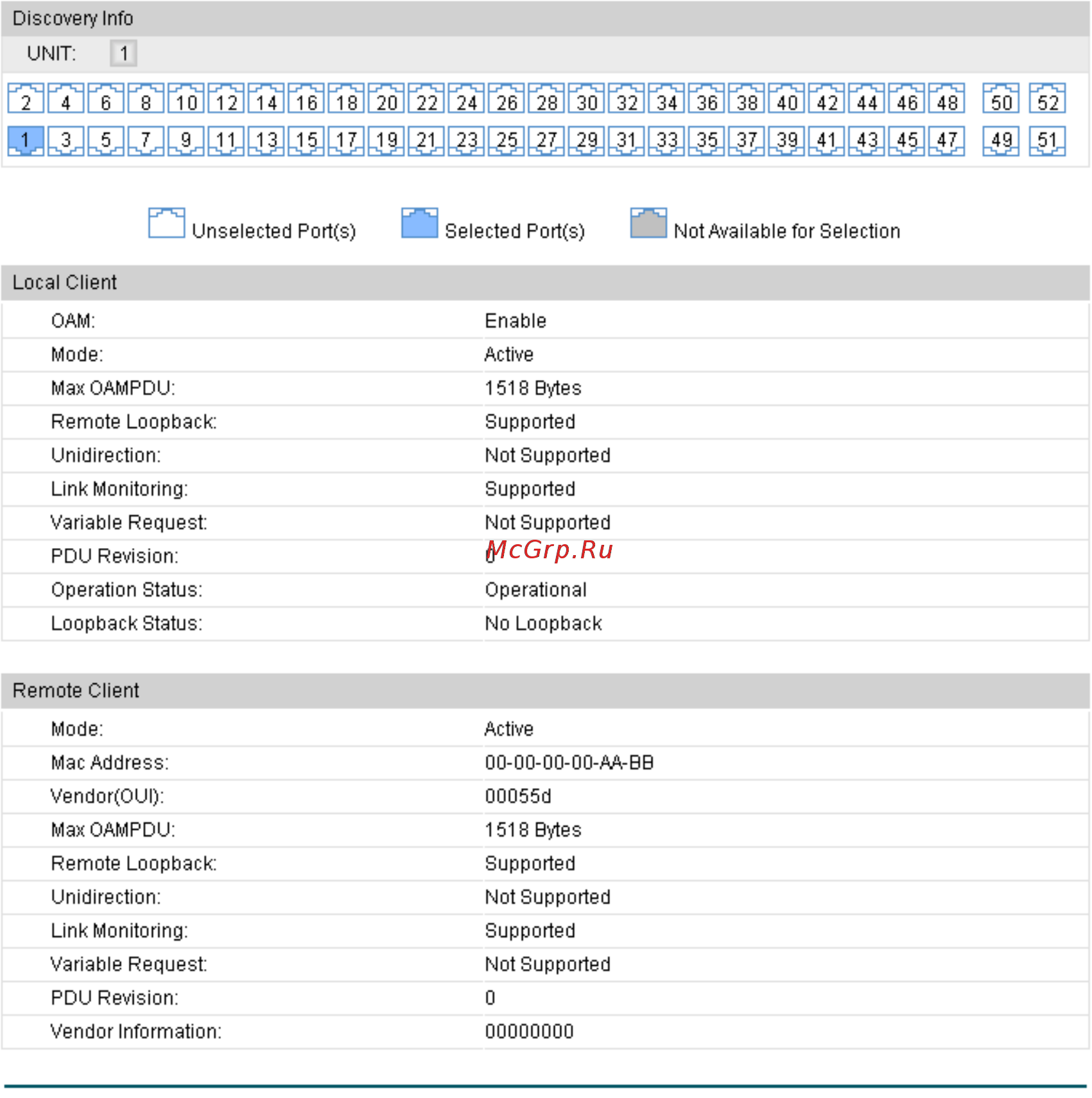

Figure 8-5 Discovery Info

The following entries are displayed on this screen:



Local Client

The local client part shows the information of the local OAM entity.

OAM:

Displays whether the OAM function is enabled or disabled on

the selected port.

Mode:

Displays the OAM mode of the selected port.

Max OAMPDU:

Displays the maximum size of the OAMPDU.

Remote Loopback: Displays whether the local client s

upports remote loopback

function.
