priority mode if 8021.1P Priority mode is enabled; the untagged non-IP datagram are mapped

based on port priority mode.

Choose the menu QoS→DiffServ→DSCP Priority to load the following page.

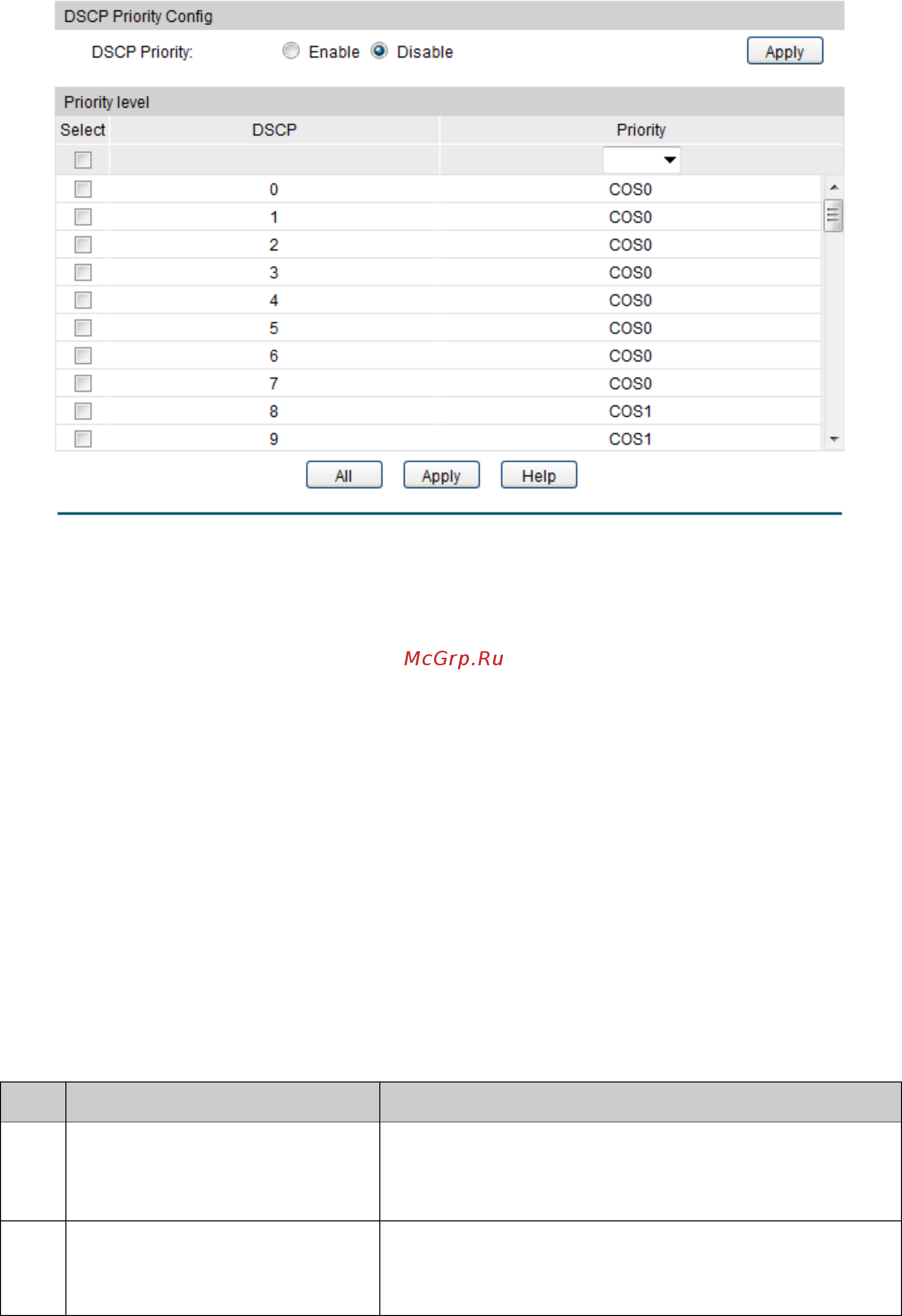

Figure 11-9 DSCP Priority

The following entries are displayed on this screen



DSCP Priority Config

DSCP Priority:

Select Enable or Disable DSCP Priority.



Priority Level

Select:

Select the desired DSCP value for DSCP priority configuration. It

is multi-optional.

DSCP:

Indicates the priority determined by the DS region of IP

datagram. It ranges from 0 to 63.

Priority Level: Indicates the 802.1P priority t

he packets with tag are mapped

to. The priorities are labeled as CoS0 ~ CoS7.

Configuration Procedure:

Step

Operation

Description

Configure the mapping relation

between the DSCP priority and

802.1P priority

Required. On QoS→DiffServ→DSCP Priority page,

enable DSCP Priority and configure the mapping

relation between the DSCP priority and CoS.

Configure the mapping relation

between the CoS and the TC

Required. On QoS→DiffServ→802.1P Priority page,

configure the mapping rela

tion between the CoS and

the TC.
