Tp-Link T2600G-28MPS (TL-SG3424P) [87/379] Application example for 802 q vlan

Step

Operation

Description

Modify/View VLAN. Optional. On the VLAN→802.1Q VLAN→VLAN Config page,

click the Edit/Detail

button to modify/view the information of

the corresponding VLAN.

Delete VLAN Optional. On the VLAN→802.1Q VLAN→VLAN Config page,

select the desired entry to delete the corresponding VLAN by

clicking the Delete button.

6.2 Application Example for 802.1Q VLAN

 Network Requirements

 Switch A is connecting to PC A and Server B;

 Switch B is connecting to PC B and Server A;

 PC A and Server A is in the same VLAN;

 PC B and Server B is in the same VLAN;

 PCs in the two VLANs cannot communicate with each other.

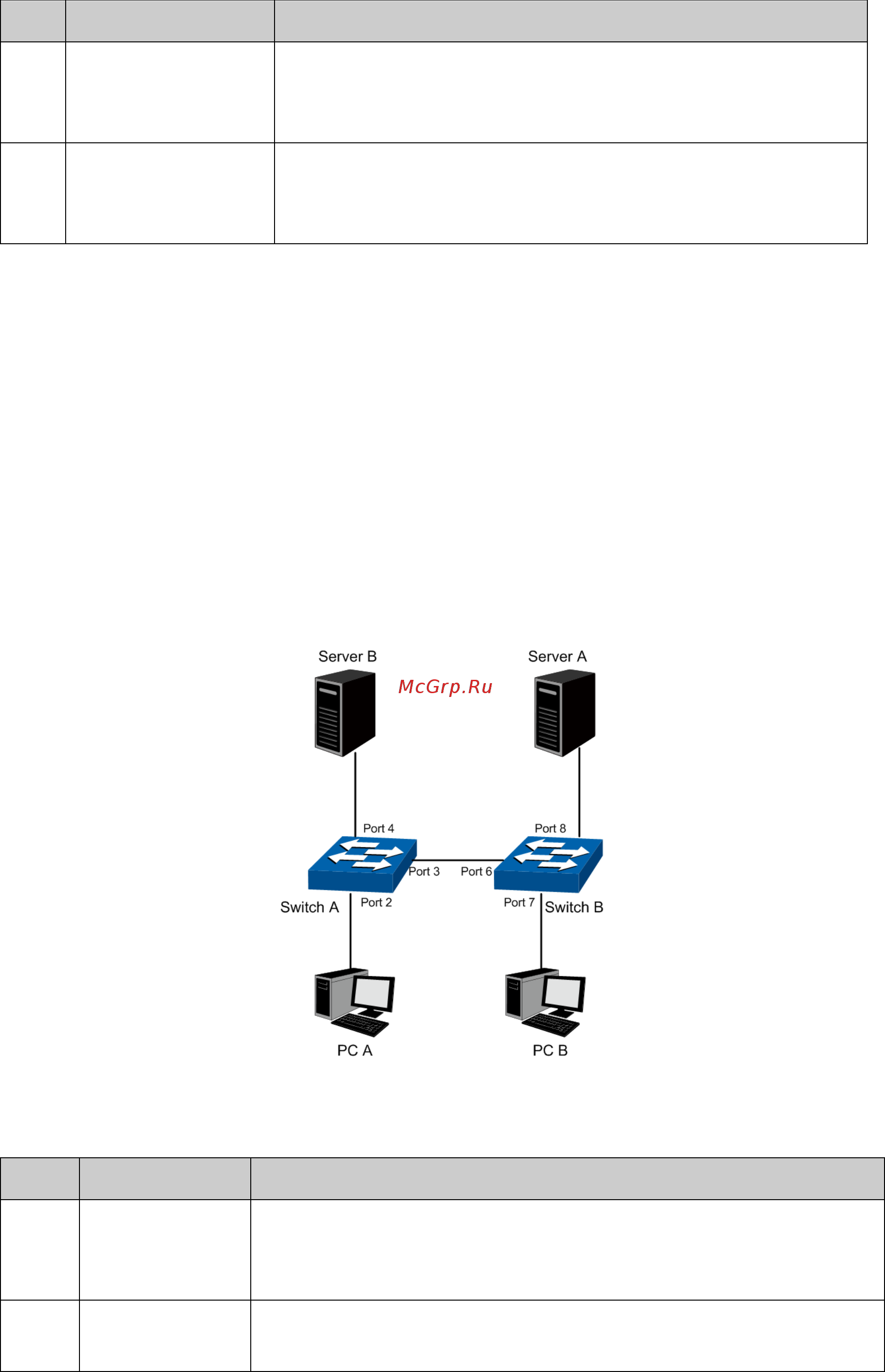

 Network Diagram

 Configuration Procedure

 Configure switch A

Step

Operation

Description

Configure the

Link Type of the

ports

Required. On VLAN→802.1Q VLAN→Port Config page, configure

the link type of Port 2, Port 3 and Port 4 as ACCESS, TRUNK and

ACCESS respectively

Create VLAN10 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLAN ID as 10, owning Port 2 and Port 3.
