Link Type:
Select the Link Type from the pull-down list for the port.
• ACCESS: The ACCESS port can be
added in a single VLAN,
and the egress rule of the port is UNTAG. The PVID is same
as the current VLAN ID. If the current VLAN is deleted, the
PVID will be set to 1 by default.
• TRUNK:
The TRUNK port can be added in multiple VLANs.
The egress rule of the po
rt is UNTAG if the arriving packet’s
VLAN tag is the same as the port’s PVID, otherwise the
egress rule is TAG. The PVID can be set as the VID number of
any valid VLAN.
• GENERAL:
The GENERAL port can be added in multiple
VLANs and set various egress rules a
ccording to the
different VLANs. The default egress rule is UNTAG. The PVID
can be set as the VID number of any valid VLAN.
PVID:
Enter the PVID number of the port.
LAG:
Displays the LAG to which the port belongs.
VLAN: Click the Detail button to view t
he information of the VLAN to
which the port belongs.
Click the Detail button to view the information of the corresponding VLAN.

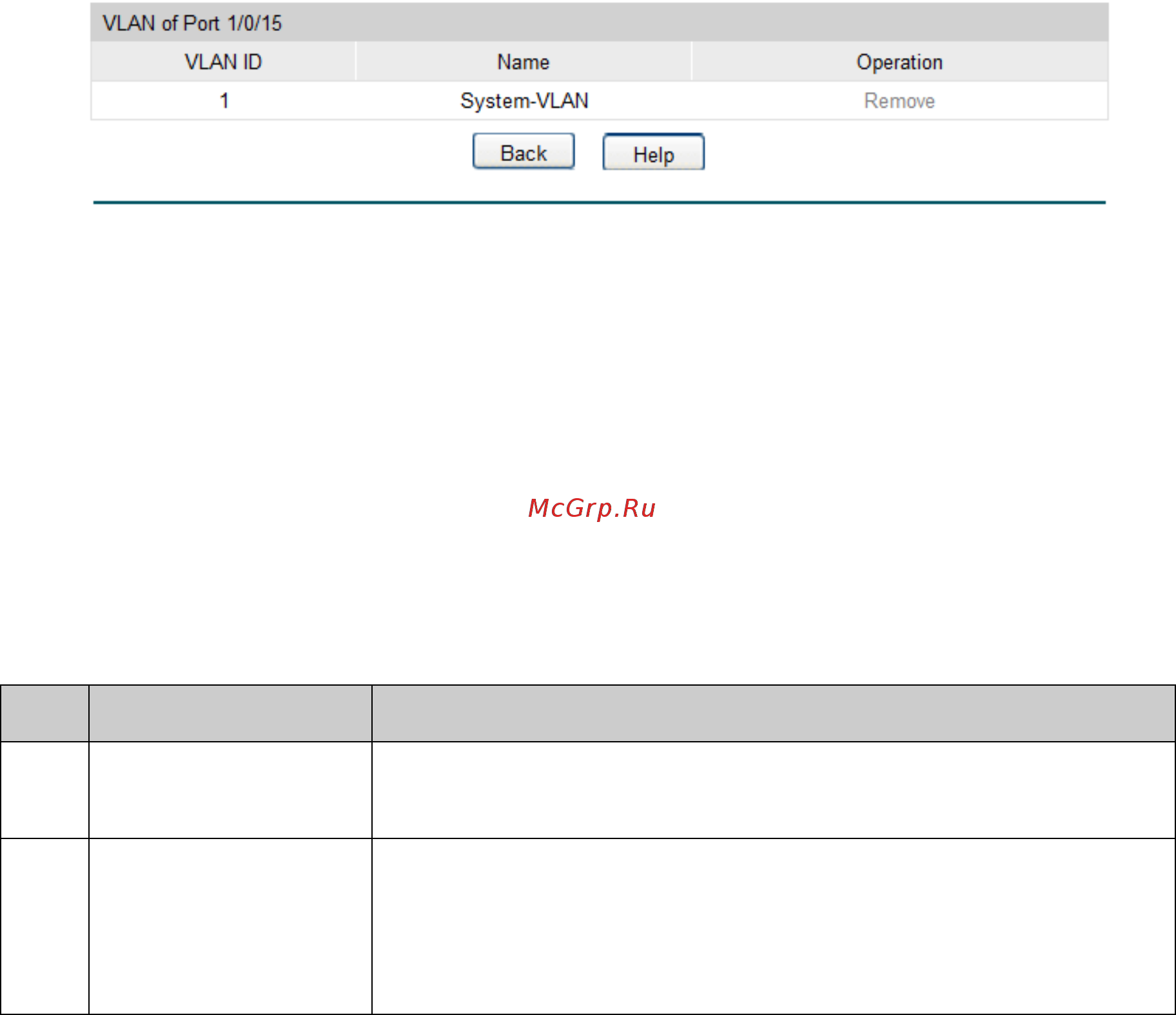

Figure 6-6 View the Current VLAN of Port
The following entries are displayed on this screen:
VLAN of Port
VLAN ID：
Displays the ID number of VLAN.
Name:
Displays the user-defined description of VLAN.
Operation:
Allows you to remove the port from the current VLAN.
Configuration Procedure:
Step
Operation
Description
1
Set the link type for
port.
Required. On the VLAN→802.1Q VLAN→Port Config page, set
the link type for the port basing on its connected device.
2
Create VLAN. Required. On the VLAN→802.1Q VLAN→VLAN Config page,
click the Create button to create a VLAN. Enter the VLAN ID
and the description for the VLAN. Meanwhile, specify its
member ports.
74
