The following entries are displayed on this screen:
Search Option
Search Option: Select the rule for displaying multicast IP table.
All: Displays all multicast IP entries.
Multicast IP:
Enter the multicast IP address the
desired entry must carry.
VLAN ID
: Enter the VLAN ID the desired entry must
carry.
Forward Port:
Enter the port number the desired
entry must carry.
Multicast IP Table
Multicast IP:
Displays multicast IP address.
VLAN ID:
Displays the VLAN ID of the multicast group.
Forward Port:
Displays the forward port of the multicast group.
Type:
Displays the type of the multicast IP.
9.3.2 Static IPv4 Multicast Table
On this page you can configure the static IPv4 multicast table.
Choose the menu Multicast→Multicast Table→Static IPv4 Multicast Table to load the
following page.

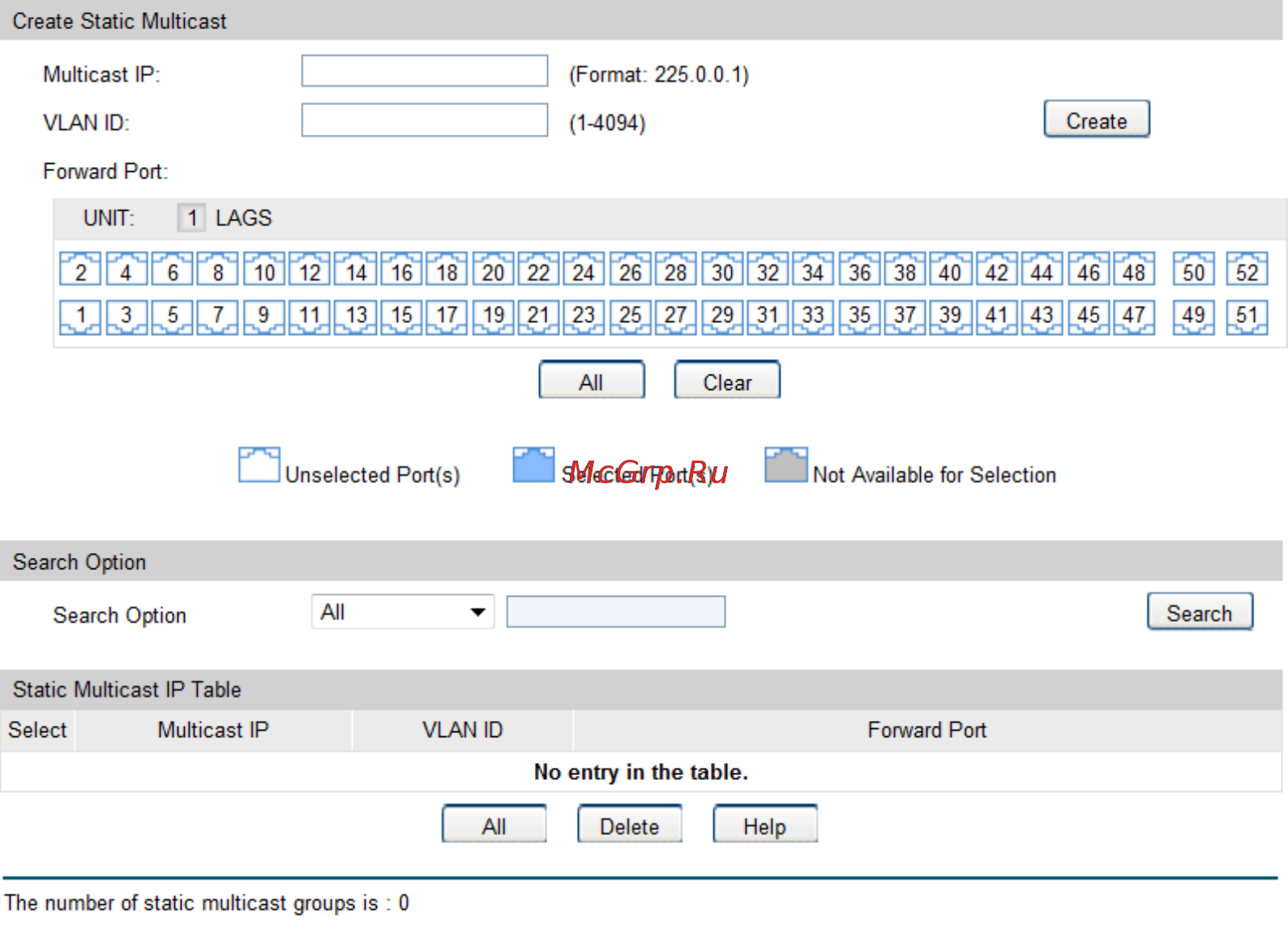

Figure 9-23 Static IPv4 Multicast Table
179
