Tp-Link T2600G-28MPS (TL-SG3424P) [180/379] Port config

9.2.2 Port Config

On this page you can configure MLD Snooping function with each single port.

Choose the menu Multicast→MLD Snooping→Port Config to load the following page.

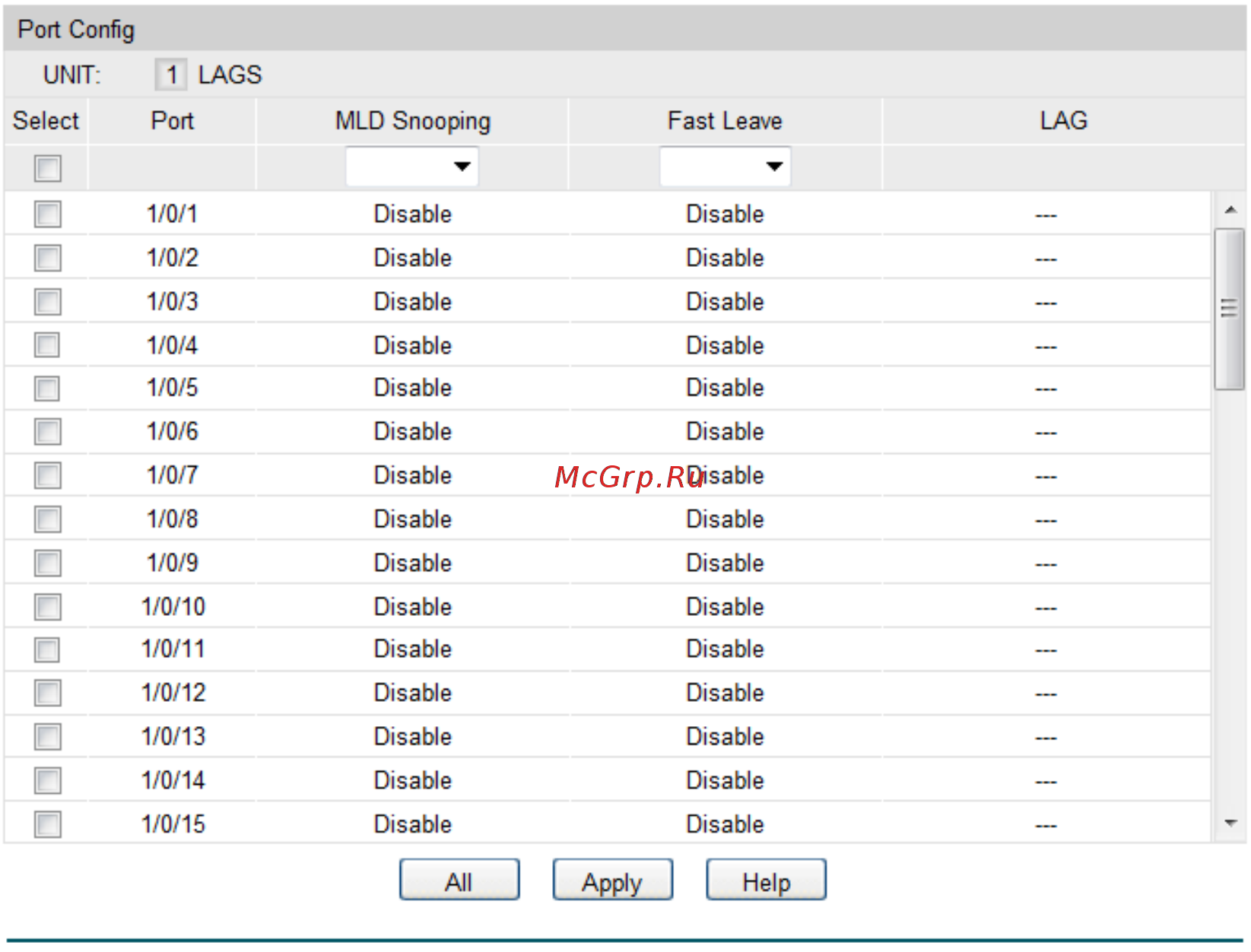

Figure 9-15 Port Config

The following entries are displayed on this screen:



Port Config

UNIT:1/LAGS Click 1 to configure the physical ports. Click LAGS to

configure the link aggregation groups.

Select:

Select the port you want to configure.

Port:

Displays the port number.

MLD Snooping: Select Enable/Disable MLD Snooping for the desired

port.

Fast Leave:

Select Enable/Disable Fast Leave feature for the

desired port. If Fast Leave is enabled for a port, the

switch will immediately remove this port from the

multicast group upon receiving MLD done

messages.

LAG:

Displays the LAG number.

168
