VLAN Info
VLAN ID:
Displays the ID number of VLAN.
Name:
Displays the name of the specific VLAN.
Untagged Port:
Displays the untagged ports of the specific VLAN.
Tagged Port:
Displays the tagged ports of the specific VLAN.
6.1.2 Port Config
Before creating the 802.1Q VLAN, please acquaint yourself with all the devices connected to
the switch in order to configure the ports properly.
Choose the menu VLAN→802.1Q VLAN→Port Config to load the following page.

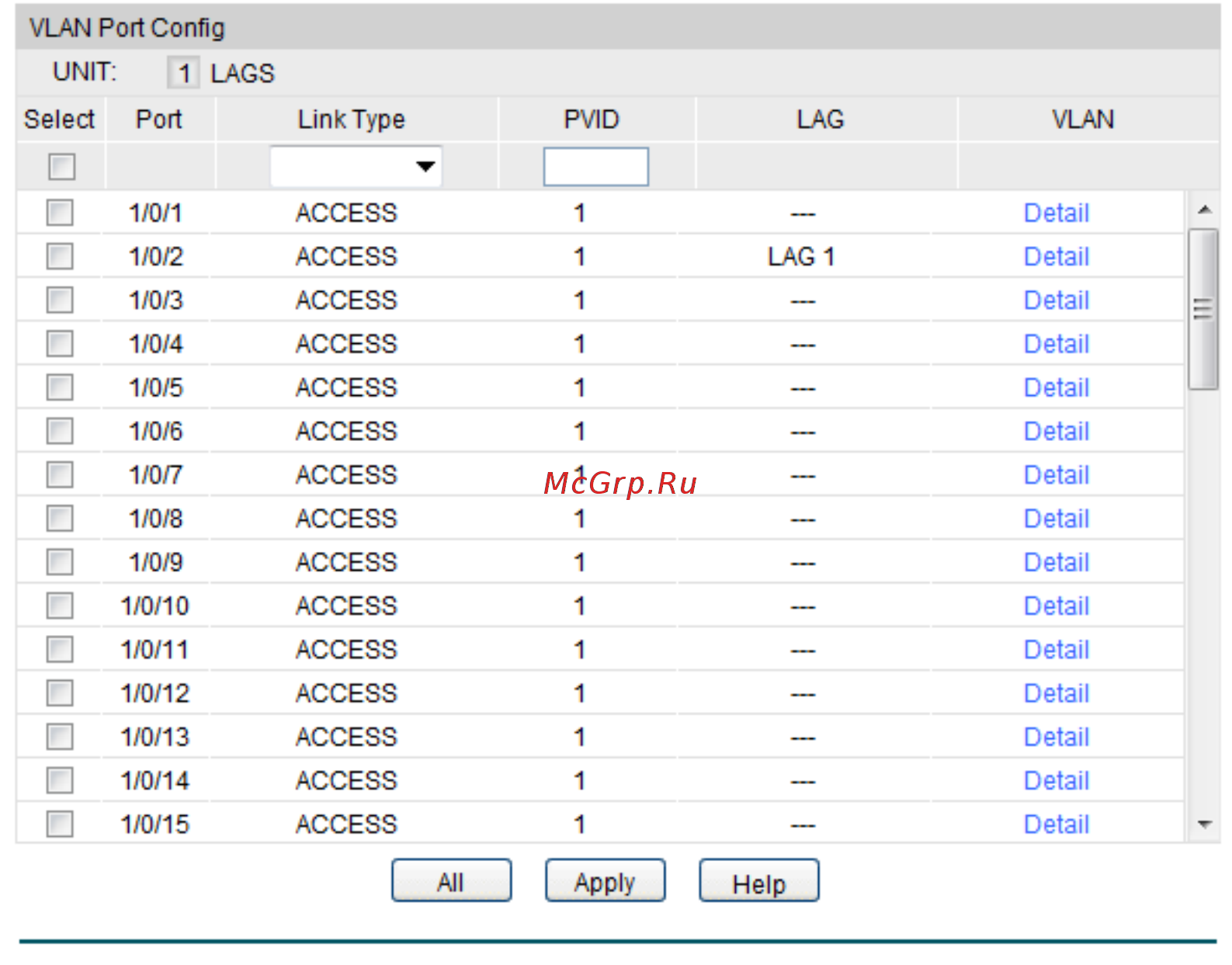

Figure 6-5 Port Config
The following entries are displayed on this screen:
VLAN Port Config
UNIT:1/LAGS: Click 1 to configure the physical ports. Click LAGS
to configure
the link aggregation groups.
Select:
Select the desired port for configuration. It is multi-optional.
Port:
Displays the port number.
73
