Check the ports’
state.
Required. On the Ethernet OAM→DLDP→DLDP Config
page, select ports 1/0/27 and 1/0/28 in the Port Config
table and click the Reset button to bring them up.

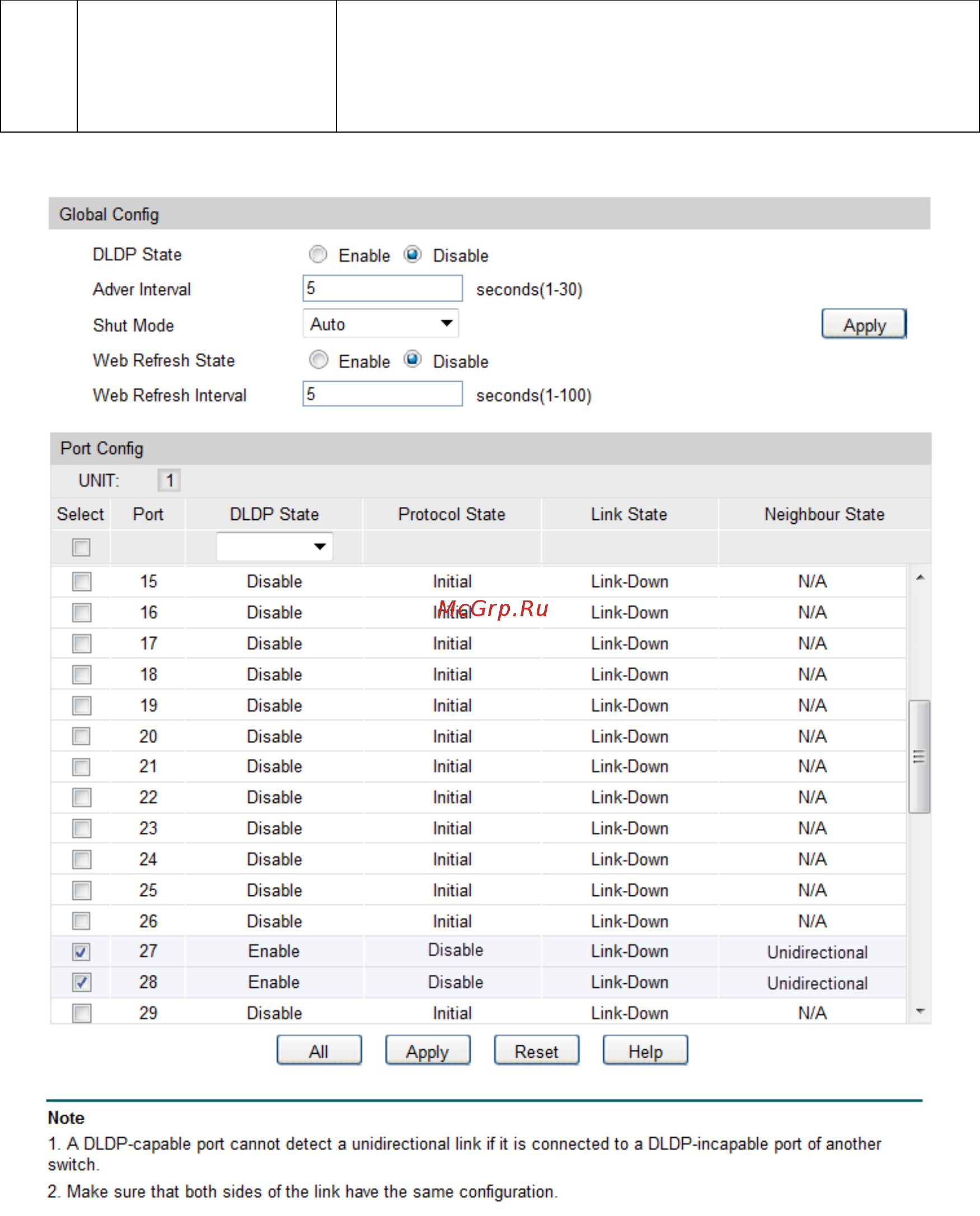

The DLDP information of Gigabit Ethernet ports 1/0/27 and 1/0/28 is shown below:
After these four ports are correctly connected, select ports 1/0/27 and 1/0/28 in the Port
Config table and click the Reset button to restore their state from Disable.
141
