Choose the menu Multicast→IGMP Snooping→Profile Binding to load the following page.

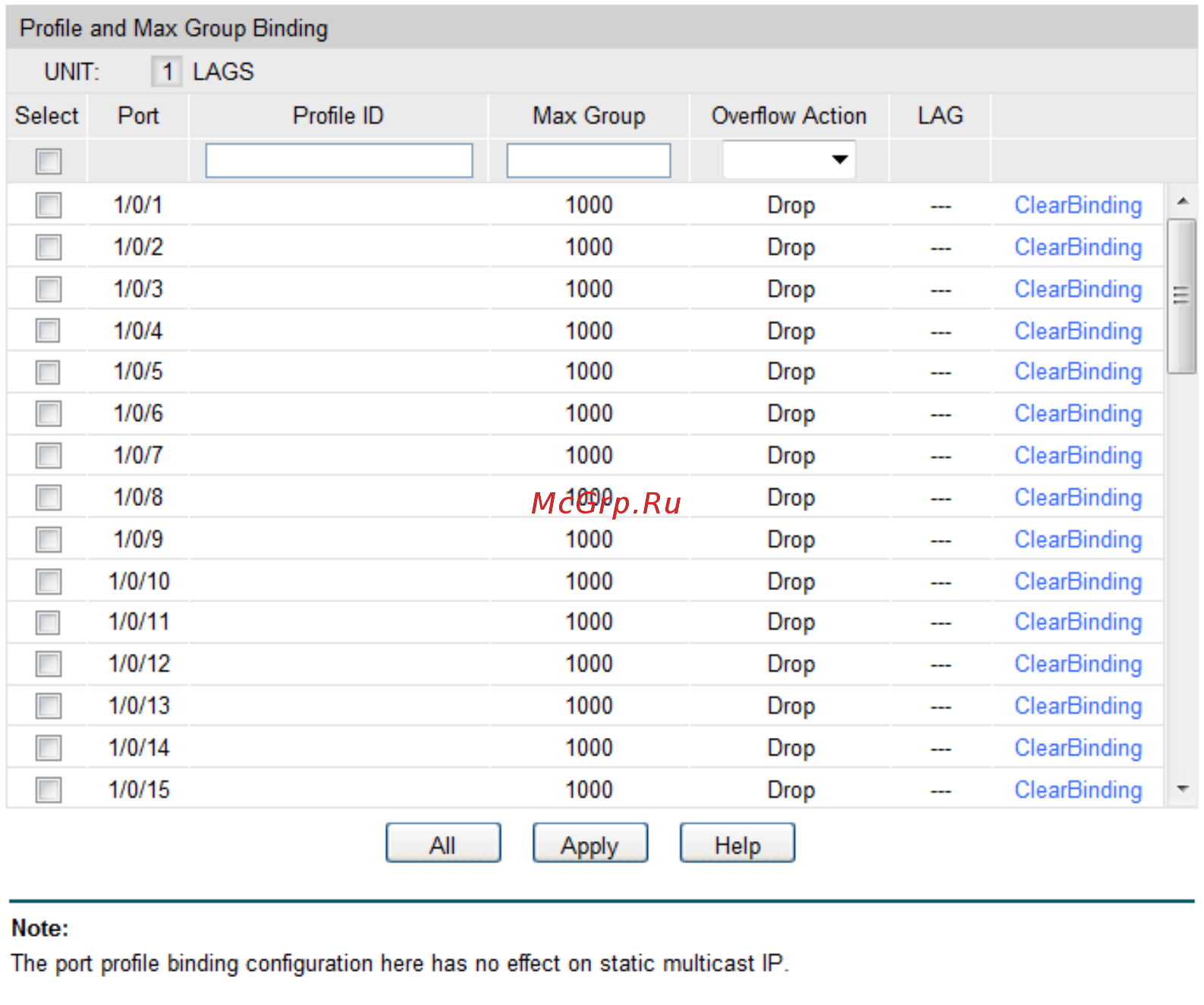

Figure 9-11 Profile Binding

The following entries are displayed on this screen:



Profile and Max Group Binding

UNIT:1/LAGS: Click 1 to configure the physical ports. Click LAGS

to configure

the link aggregation groups.

Select:

Select the desired entry for configuration.

Port:

It is multi-optional. Displays the port number.

Profile ID:

The existing Profile ID bound to the selected port.

Max Group:

The maximum multicast group a port can join.

Overflow Action:

The policy should be taken when the number of multicast group

a port has joined reach the maximum.

 Drop: D

rop the successive report packet, and this port can

not join any other multicast group.

 Replace:

When the number of the dynamic multicast groups

that a port joins has exceeded the max-

group, the newly

joined multicast group will replace an existing multicast

group with the lowest multicast group address.

LAG:

Displays the LAG number which the port belongs to.
