Choose the menu ACL→ACL Config→IPv6 ACL to load the following page.

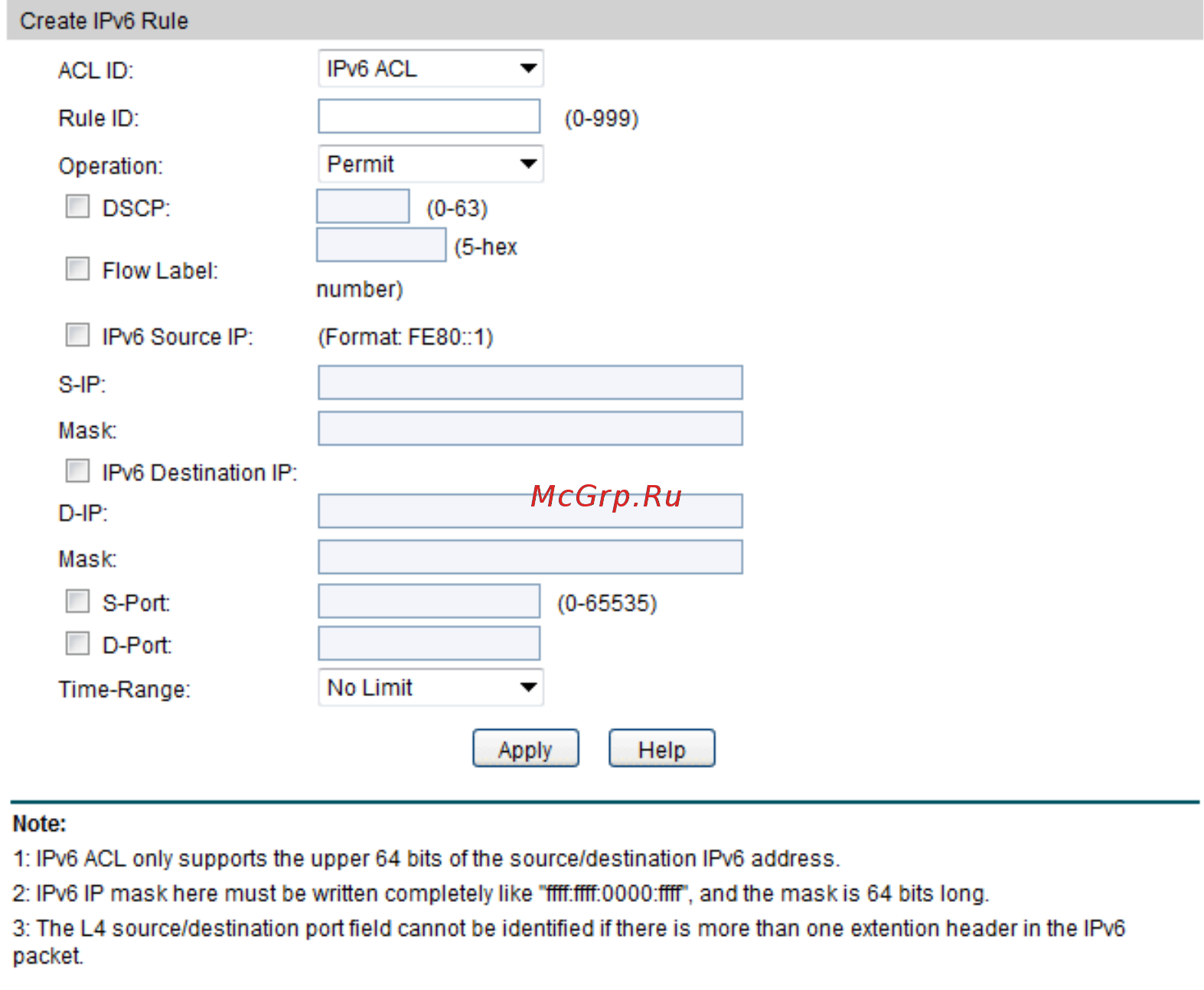

Figure 13-10 IPv6 ACL Config
The following entries are displayed on this screen:
Create Extend-IP ACL
ACL ID:
Select the desired IPv6 ACL for configuration.
Rule ID:
Enter the rule ID.
Operation:
Select the operation for the switch to process packets which match
the rules.
Permit: Forward packets.
Deny: Discard Packets.
DSCP:
Enter the DSCP information contained in the rule.
Flow Label:
Enter the Flow Label information contained in the rule.
IPv6 Source IP:
Click to enable the IPv6 source IP verification.
S-IP: Enter the source IPv6 address contained in the rule, you ca
n
input all the 128 bits, but only upper 64 bits are verified.
Mask: Enter IP address mask. If it is set to 1, the
upper 64 bits in the
source address of the packet must strictly match the S-
IP you
configured. This field is 64-bit long.
IPv6 Destination IP:
Click to enable the IPv6 destination IP verification.
255
