When the Gateway tries to communicate with Host A in LAN, it will encapsulate this false

destination MAC address for packets, which results in a breakdown of the normal

communication.



Cheating Terminal Hosts

The attacker sends the false IP address-to-MAC address mapping entries of terminal

Host/Server to another terminal Host, which causes that the two terminal Hosts in the same

network segment cannot communicate with each other normally. The ARP Attack implemented

by cheating terminal Hosts is illustrated in the following figure.

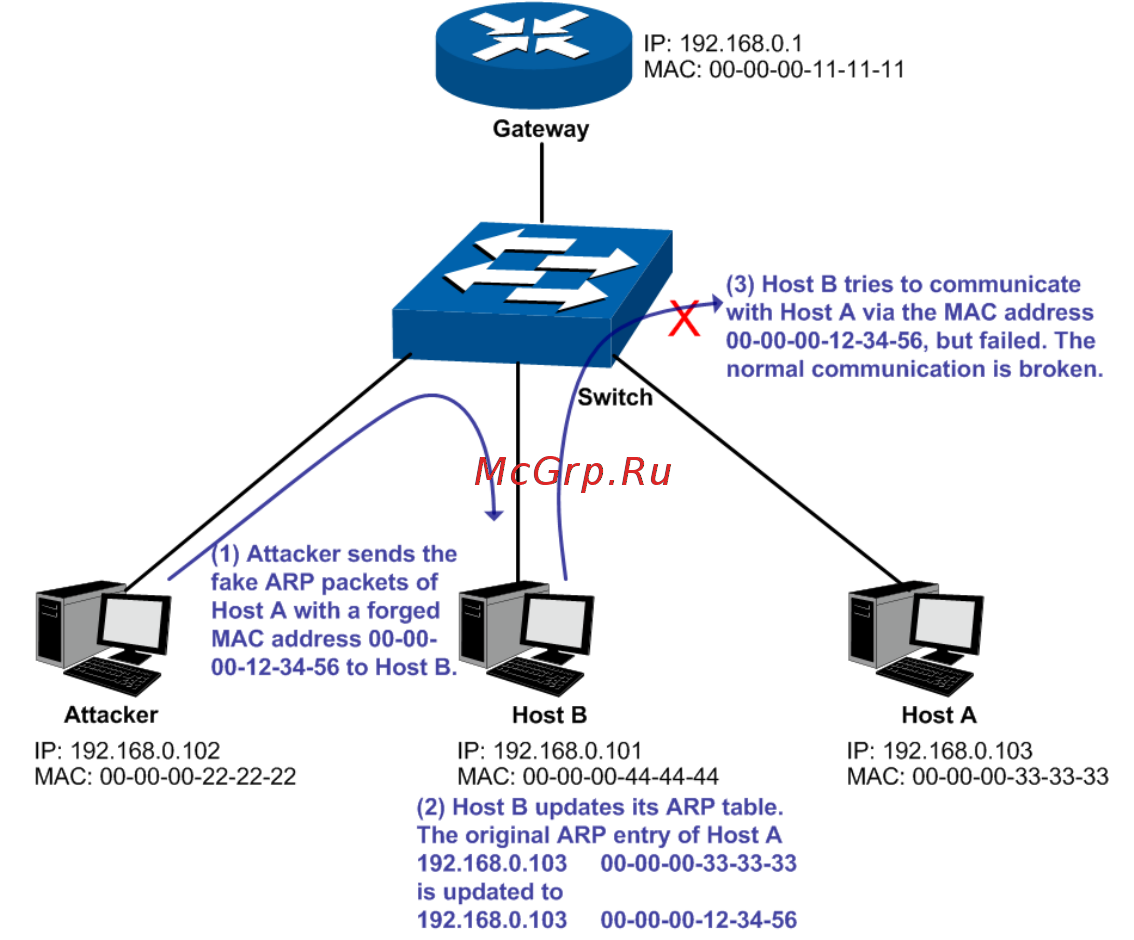

Figure 14-17 ARP Attack – Cheating Terminal Hosts

As the above figure shown, the attacker sends the fake ARP packets of Host A to Host B, and

then Host B will automatically update its ARP table after receiving the ARP packets. When Host

B tries to communicate with Host A, it will encapsulate this false destination MAC address for

packets, which results in a breakdown of the normal communication.



Man-In-The-Middle Attack

The attacker continuously sends the false ARP packets to the Hosts in LAN so as to make the

Hosts maintain the wrong ARP table. When the Hosts in LAN communicate with one another,

they will send the packets to the attacker according to the wrong ARP table. Thus, the attacker

can get and process the packets before forwarding them. During the procedure, the

communication packets information between the two Hosts are stolen in the case that the

Hosts were unaware of the attack. That is called Man-In-The-Middle Attack. The

Man-In-The-Middle Attack is illustrated in the following figure.
