Generally, the ND detection feature uses the entries in the IPv6-MAC binding table to verify the

packets received on the untrusted ports, thus filtering the forged ND packets and keeping out

the attacks.

1. ND packets received on the ND-trusted port will not be checked.

2. RS/NS packets with their source IPv6 address unspecified will not be checked.

3. RA/RR packets received on the ND-untrusted port will be discarded directly; the other ND

packets received on the ND-untrusted port will be checked.

a) Source MAC consistence check. If the RS/NS packet’s source MAC address in the

Ethernet frame header is different from that carried in the source layer address option,

the RS/NS packet will be discarded.

b) IPv6-MAC binding check. Look up the IPv6-MAC binding table to compare the IPv6

address, MAC address, VLAN ID and receiving port between the entry and the ND packet.

If a match is found, the ND packet is considered legal and forwarded; if no match is found,

the ND packet is considered illegal and discarded directly.

Choose the menu Network Security→ND Detection→ND Detection to load the following

page.

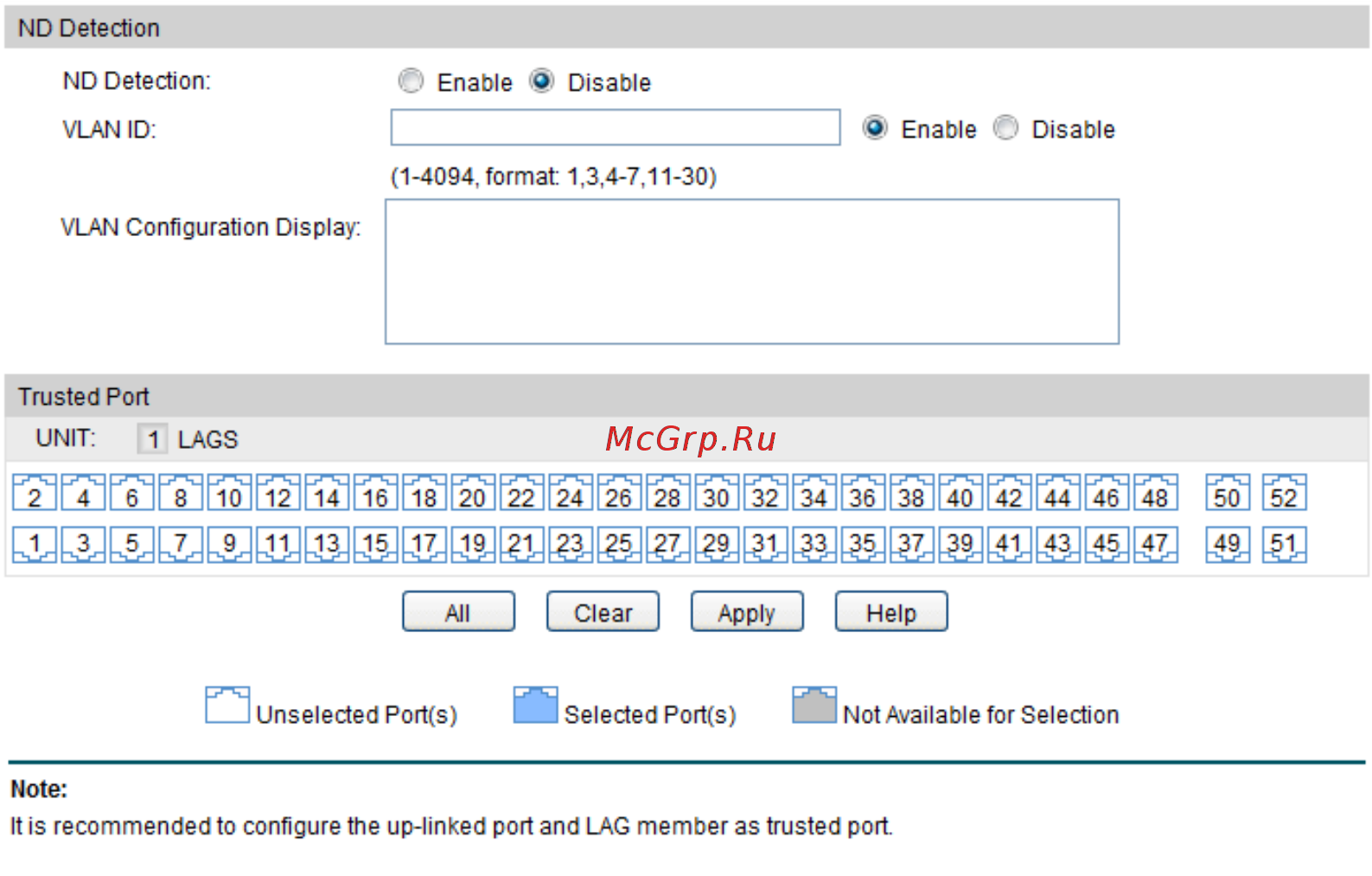

Figure 14-22 ND Detection



ND Detection

ND Detection:

Enable/Disable the ND Detection function.

VLAN ID:

Enter the VLAN ID in which you want to enable/

disable the ND

Detection function.

VLAN Configuration

Display:

Display the VLANs with ND detection function enabled.



Trusted Port

293
