On this page, you can configure the notification function of SNMP.
Choose the menu SNMP→Notification→Notification Config to load the following page.

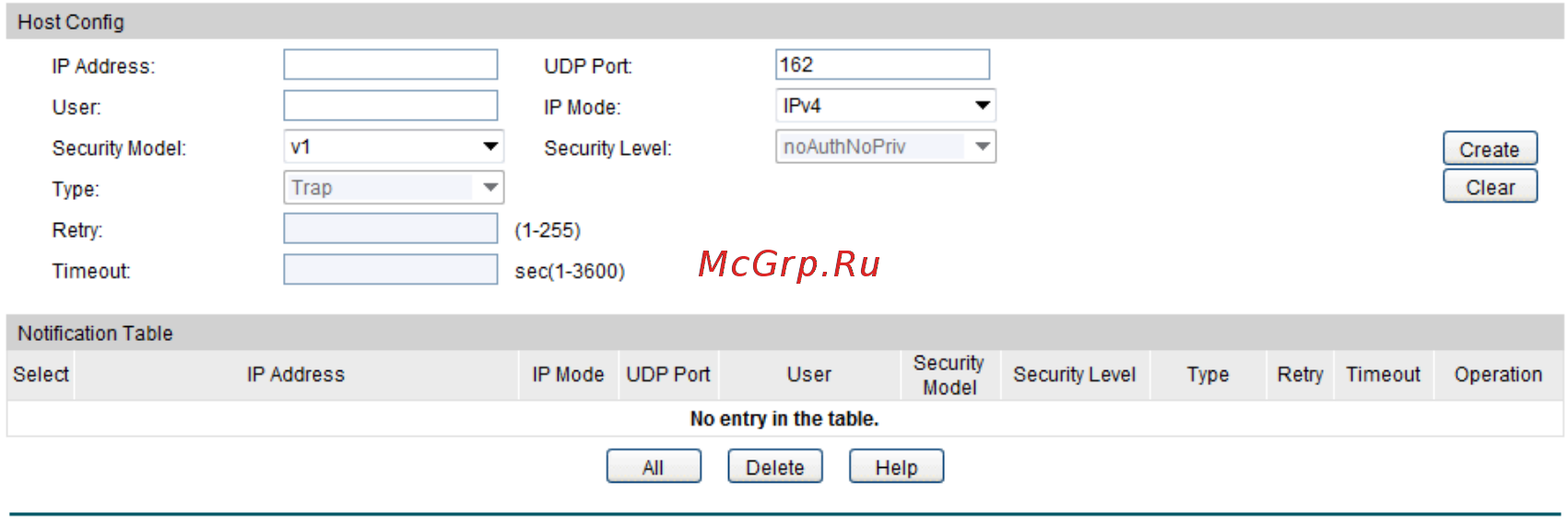

Figure 15-8 Notification Config
The following entries are displayed on this screen:
Host Config
IP Address:
Enter the IP Address of the management Host.
User:
Enter the User name of the management station.
Security Model:
Select the Security Model of the management station.
Type:
Select the type for the notifications.
• Trap: Indicates traps are sent.
• Inform: Indicates informs are sent. The Inform type has a
higher security than the Trap type.
Retry:
Specify the amount of times the switch resends an inform
request. The switch will resend the inform request if it
doesn’t get the response from the management station
during the Timeout interval, and it
will terminate resending
the inform request if the resending times reach the specified
Retry times.
Timeout:
Specify the maximum time for the switch to wait for the
response from the management station before resending a
request.
UDP Port:
Enter the numb
er of the UDP port used to send notifications.
The UDP port functions with the IP address for the
notification sending. The default is 162.
IP Mode:
Select the IP mode of the IP address.
Security Level:
Select the Security Model of the management station.
Notification Table
Select:
Select the desired entry to delete the corresponding
management station.
IP Address:
Displays the IP Address of the management host.
326
