Choose the menu LLDP→Device Statistics→Statistic Info to load the following page.

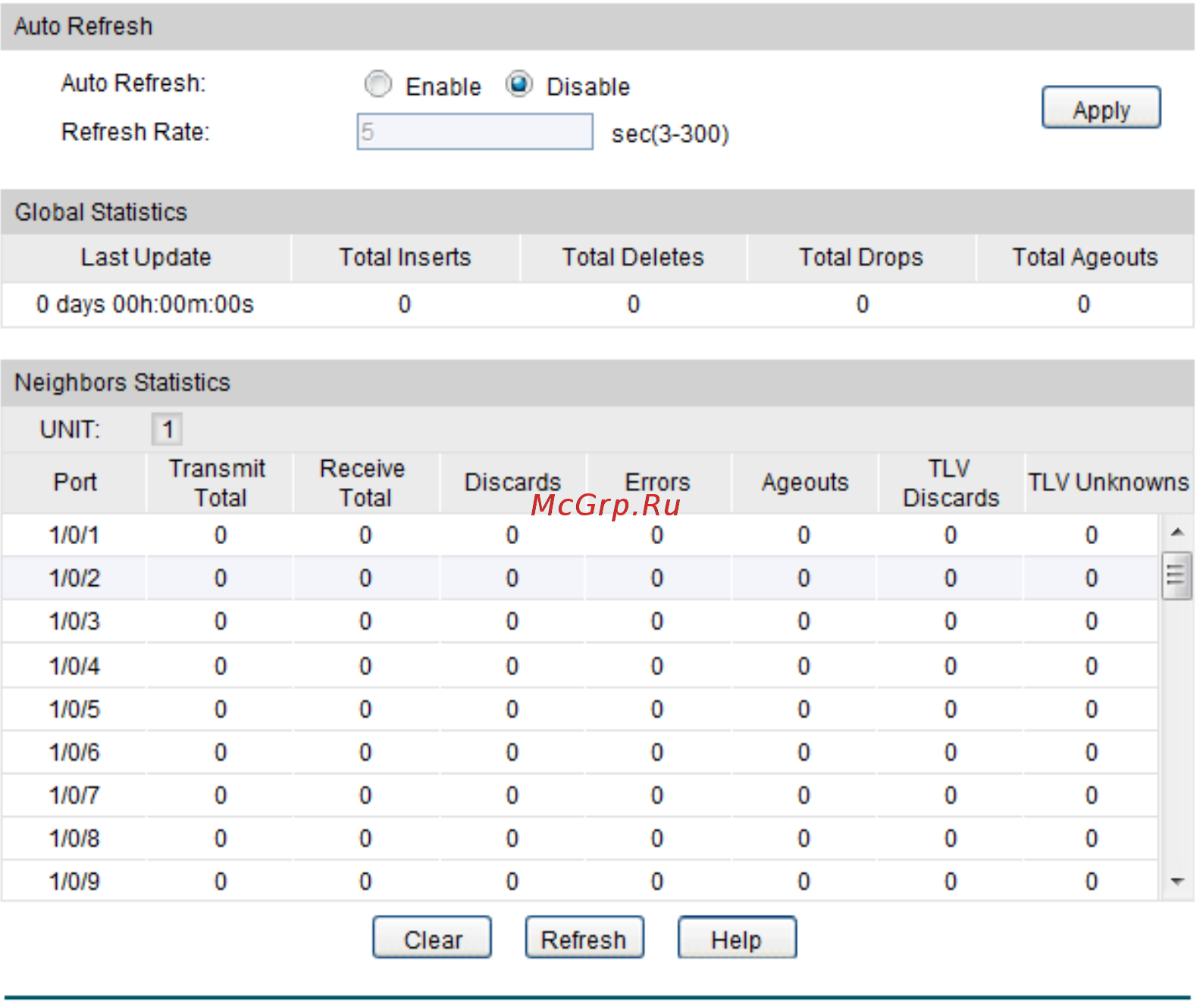

Figure 16-5 LLDP Statistic Information
The following entries are displayed on this screen:
Auto Refresh
Auto Refresh:
Enable/Disable the auto refresh function.
Refresh Rate:
Specify the auto refresh rate.
Global Statistics
Last Update:
Displays latest update time of the statistics.
Total Inserts:
Displays the number of neighbors inserted till last update time.
Total Deletes:
Displays the number of neighbors deleted by local device.
Total Drops:
Displays the number of neighbors dropped by local device.
Total Ageouts:
Displays the number of overtime neighbors in local device.
Neighbor Statistics
Port:
Displays local device's port number.
Transmit Total:
Displays the number of LLDPDUs sent by this port.
Receive Total:
Displays the number of LLDPDUs received by this port.
Discards:
Displays the number of LLDPDUs discarded by this port.
343
