Choose the menu Switching→Port→Loopback Detection to load the following page.

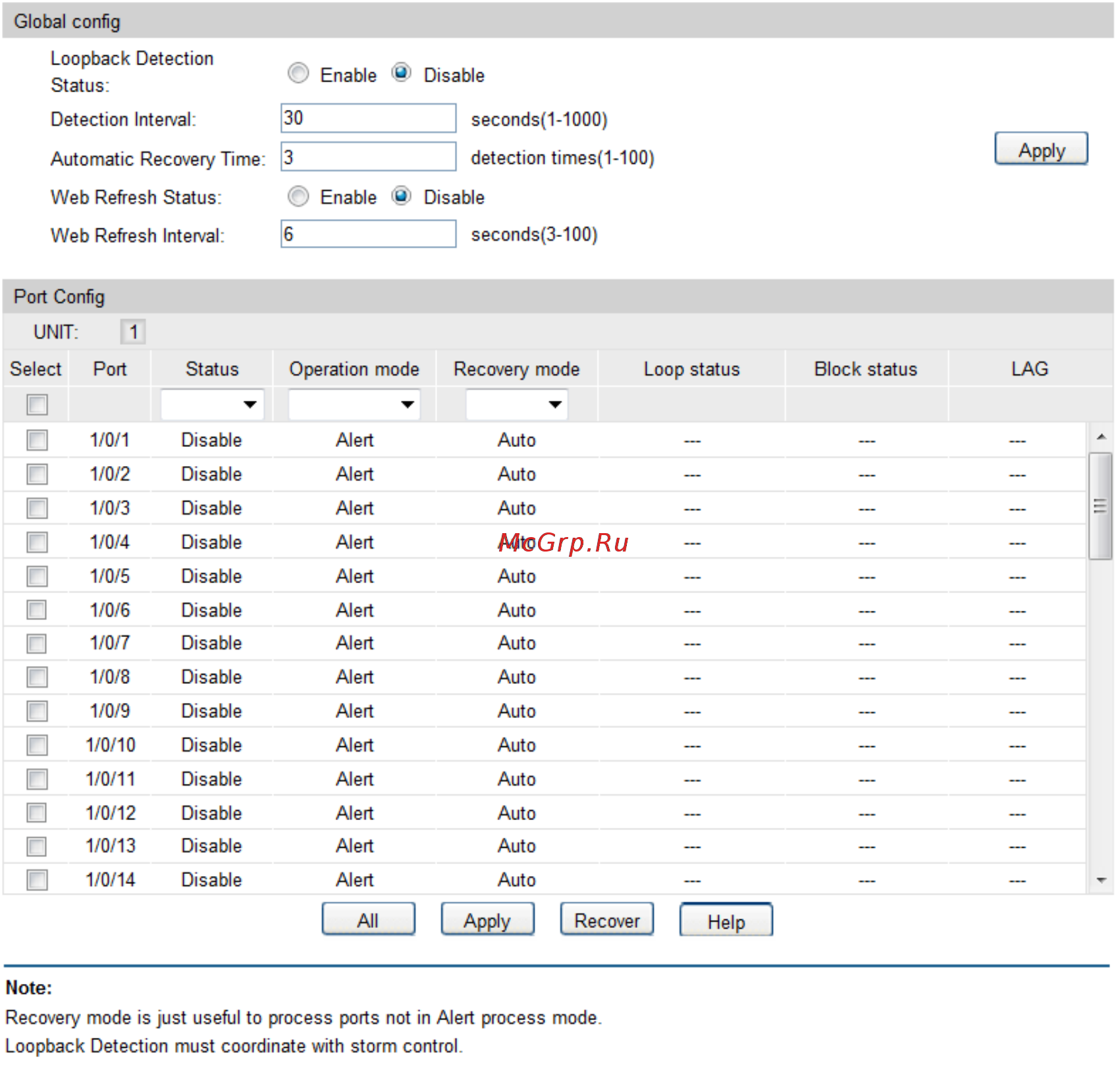

Figure 5-7 Loopback Detection Config
The following entries are displayed on this screen
:
Global Config
LoopbackDetection
Status:
Here you can enable or disable Loopback Detection function
globally.
Detection Interval: Set a loopback detection interval between 1 and 1000 seconds.
By default, it’s 30 seconds.
Automatic
Recovery Time:
Time after which the blocked port would automatically recover
to normal status. It can be set as integral times of detection
interval.
Web Refresh Status:
Here you can enable or disable web automatic refresh.
Web Refresh Interval: Set a web refres
h interval between 3 and 100 seconds. By
default, it’s 6 seconds.
