Choose the menu VLAN→Protocol VLAN→Protocol Template to load the following page.

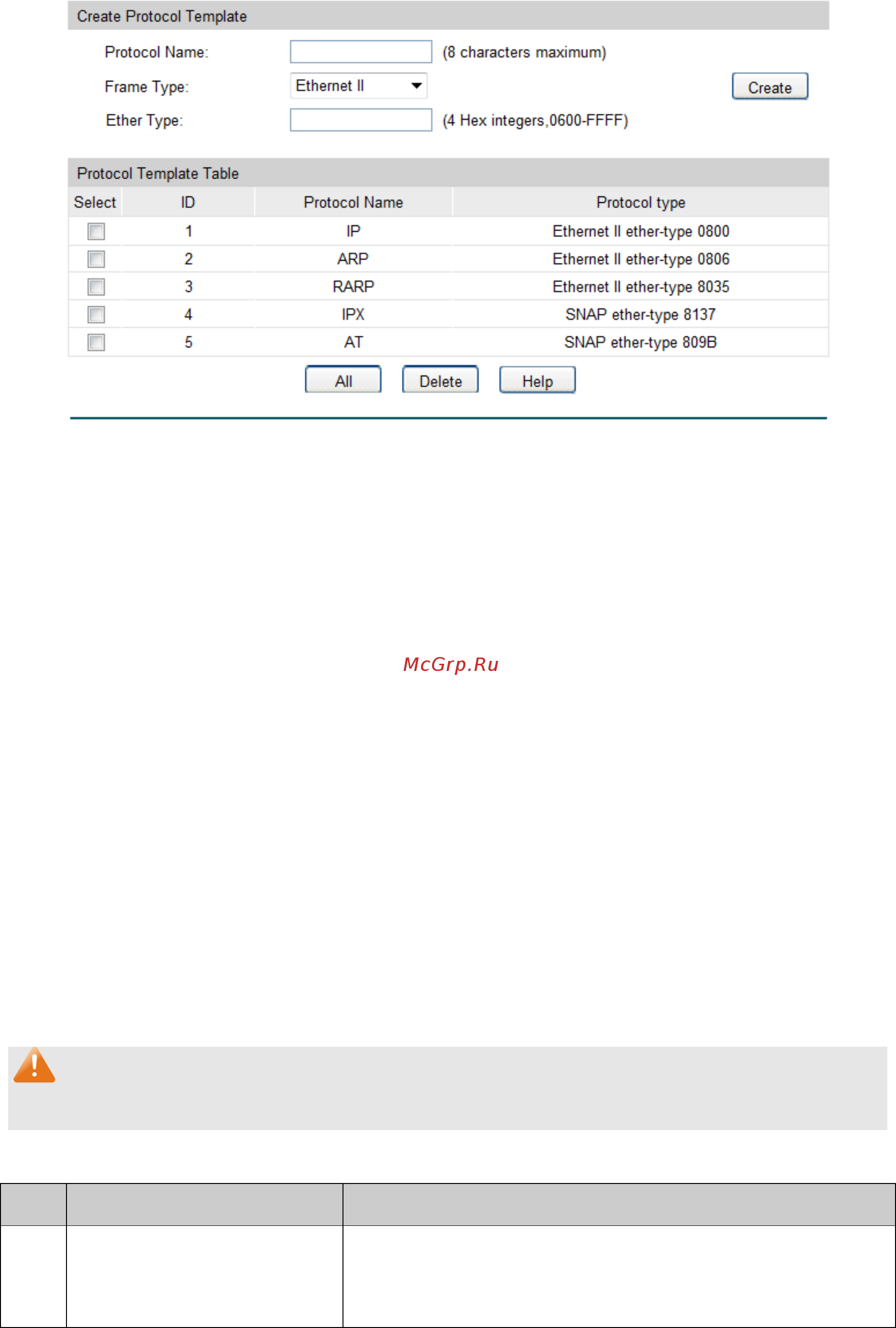

Figure 6-11 Create and View Protocol Template

The following entries are displayed on this screen:



Create Protocol Template

Protocol Name:

Give a name for the Protocol Template.

Frame Type:

Select a Frame Type for the Protocol Template.

Ether Type:

Enter the Ethernet protocol type field in the protocol template.

DSAP:

Enter the DSAP field when selected LLC.

SSAP:

Enter the SSAP field when selected LLC.



Protocol Template Table

Select:

Select the desired entry. It is multi-optional.

Displays the Protocol Template ID.

Protocol Name:

Displays the Protocol Name.

Protocol Type:

Displays the Protocol type.

Note:

The Protocol Template bound to VLAN cannot be deleted.



Configuration Procedure:

Step

Operation

Description

Set the link type for port. Required. On the VLAN→802.1Q VLAN→Port Config page,

set the link type for the port basing on its connected

device.
