Icom IC-V8000 [10/88] I repeater operation
![Icom IC-V8000 [10/88] I repeater operation](/views2/1074121/page10/bga.png)
V
QUICK REFERENCE GUIDE

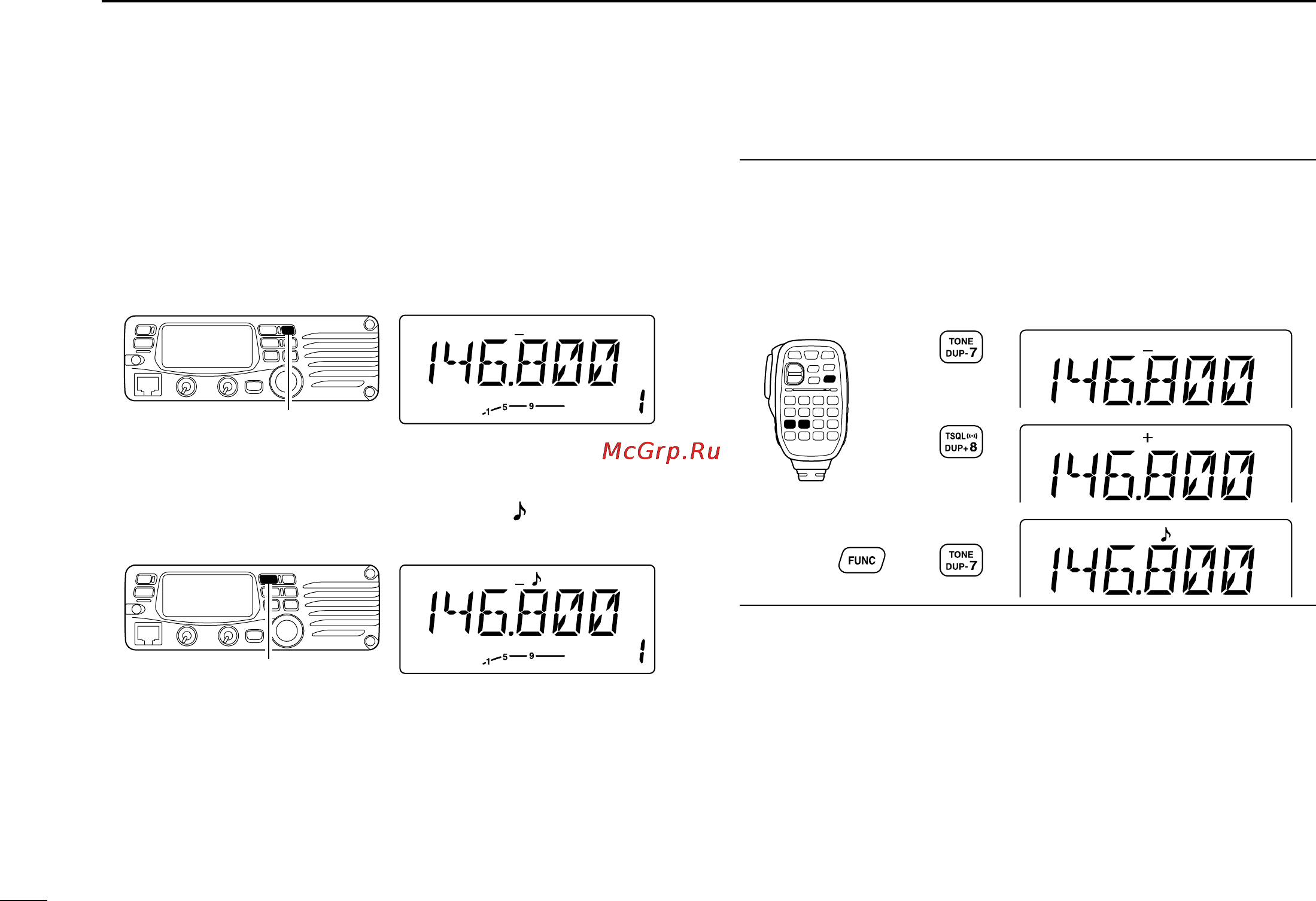

■ Repeater operation
1. Setting duplex
Push [LOW(DUP)] for 1 sec. once or twice to select minus du-
plex or plus duplex.
• The USA and CSA versions have an auto repeater function, there-
fore, setting duplex is not required.
2. Repeater tone
Push [TONE(T-SCAN)] several times until “” appears, if the
repeater requires a subaudible to be accessed.
Using the HM-133V
Plus or minus duplex selection and the repeater tone setting
can be made easily via HM-133V.
Push [
DUP
– 7(TONE)] for minus duplex; [
DUP
+ 8(TSQLS)]
for plus duplex selection, push [FUNC] then [
DUP
– 7(TONE)]
to turn the repeater tone ON.
Push
Push , then
Push
[TONE(T-SCAN)]
[LOW(DUP)]
