10
2
SETTING A FREQUENCY
2
■ Using the keypad
The frequency can be directly set via numeral keys on the mi-
crophone.
z Push [VFO/LOCK] to VFO mode, if necessary.
x Push [
ENT
C(T-OFF)] to activate the keypad for
digit input.
c Push 6 keys to input a frequency.
• When a digit is mistakenly input, push [
ENT
C(T-OFF)]
to clear the input, then repeat input from the 1st digit.
• Pushing [
CLR
A(MW)] clears input digits and retrieves
the frequency.
■ Using the [Y]/[Z] keys
➥ Push [Y] or [Z] to select the desired frequency.
• Pushing [Y]/[Z] for 1 sec. activates a scan. If scan
starts, push [Y]/[Z] again or push [
CLR
A(MW)] to can-
cel it.
YZ
Push
Push
Push
Push

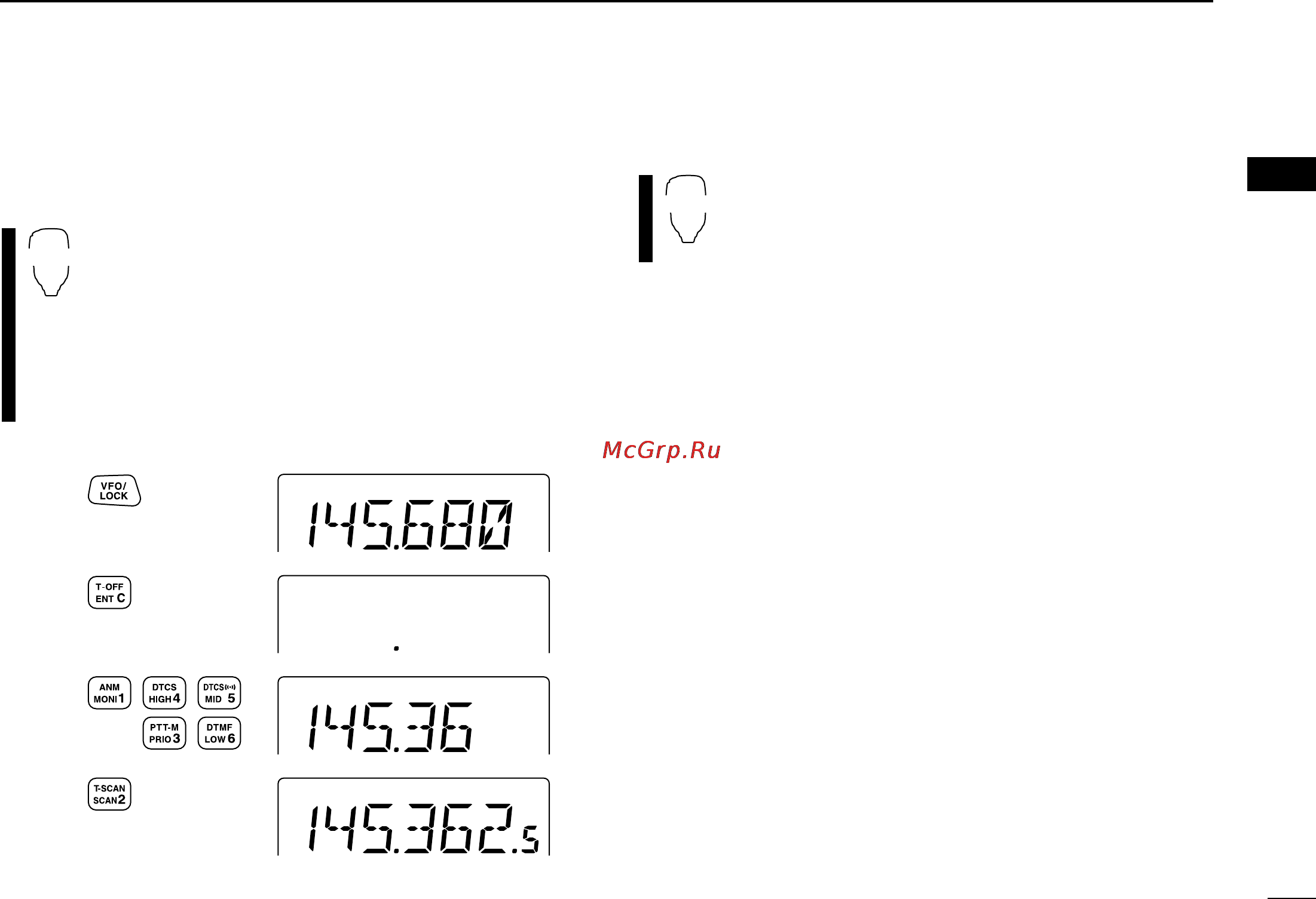

[EXAMPLE]: Setting frequency to 145.3625 MHz.
ENT
C
