Icom IC-V8000 [19/88] Panel description
![Icom IC-V8000 [19/88] Panel description](/views2/1074121/page19/bg13.png)
8
1
PANEL DESCRIPTION
1
➥ Cancels frequency entry. (p. 10)
➥ Cancels the scan or priority watch.
(pgs. 38, 44)
➥ Exit set mode. (p. 58)
➥ Enters set mode (p. 58)
➥ Advances the set mode selection order
after entering set mode. (p. 58)
➥ Sets the keypad for numeral input.
(p. 10)
➥ Reverses the set mode selection order
after entering set mode. (p. 58)
Adjusts the squelch level increments.
(p. 13)
No primary function.
Adjusts the squelch level decrement.
(p. 13)
➥ Selects a memory channel for program-
ming. (p. 26)
➥ Advances the memory channel number
when continuously pushed after pro-
gramming is completed. (p. 26)
DTMF memory OFF. (p. 46)
Turns the subaudible tone encoder, pocket
beep or CTCSS/DTCS tone squelch OFF.
(pgs. 18, 49, 50)
Mutes the audio. (p. 14)
• Mute function is released when any oper-
ation is performed.
Locks the digit keys on the keypad (includ-
ing the A to D, # and M keys. (p. 12)
Sends a 1750 Hz tone signal for 0.5 sec.
(p. 20)
After pushing :
Transmits the appropriate
DTMF code. (pgs. 20, 46)

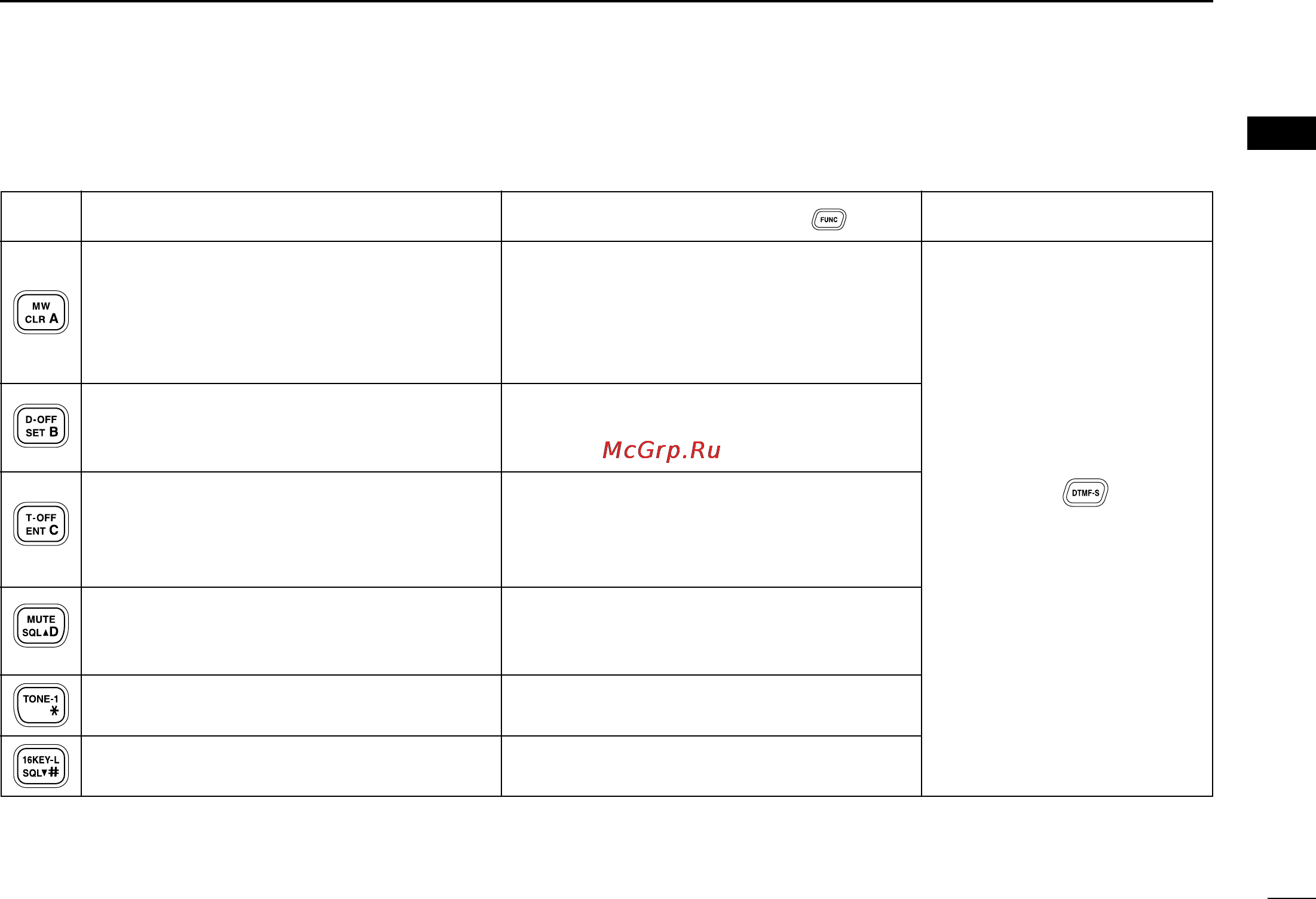

KEY FUNCTION SECONDARY FUNCTION ( +key) OTHER FUNCTIONS
