5 MEMORY OPERATION
Channel names can also be programmed via the mi-
crophone.
z Select the memory/call channel to be assigned memory
names.
➥ Push [MR/CALL] to select memory mode, then select
the desired memory channel via [Y]/[Z] or keypad.
• Scan edge channels can also be selected.
➥ Push [MR/CALL] for 1 sec. to select the call channel.
x Push [FUNC], then [
MONI
1(ANM)] momentarily.
c Push [
SET
B(D-OFF)].
• Frequency readouts disappear.
v Push [Y]/[Z] to select the desired character.
• The selected character blinks.
b Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] to move the cur-
sor to left or right, respectively.
n Repeat steps v and b until the desired channel names
are displayed.
m Push [
CLR
A(MW)] to program the name and exit the chan-
nel name programming condition.
, Push [FUNC], then push [
MONI
1(ANM)] to return to fre-
quency indication if desired.

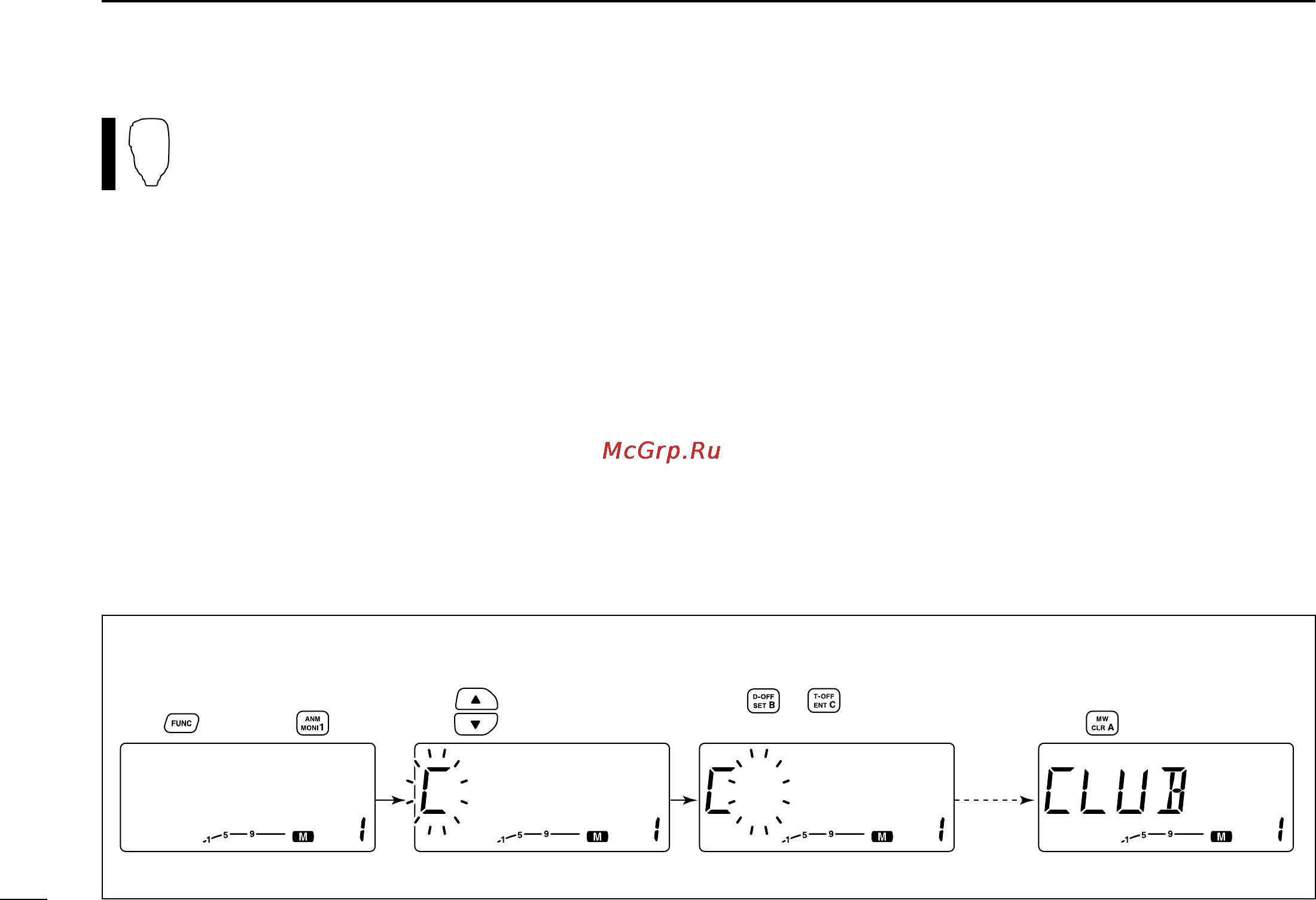

[EXAMPLE]: Programming “CLUB” into memory channel 1.
Repeat
previous
steps.
Push to select the character.
Select memory channel 1,
push , then push .
Push .
Push or to move
the cursor.
