PAGER/CODE SQUELCH
11
D Waiting for a call from a specific station
q Set the operating frequency.
w Push [BANK(OPT)] for 1 sec.
• 100 MHz digit shows “P.”
e Wait for a call.
• When receiving a call, the caller’s ID or group code appears as
shown at right.
r Push [PTT] to send an answer back call and display the
operating frequency.
t After confirming a connection, push [BANK(OPT)] for
1 sec. to select code squelch operation, or repeat the pre-
vious key operation again to select non-selective calling
system.
z Set the operating frequency.
x Push [BANK/OPTION] for 1 sec.
• 100 MHz digit shows “P.”
c Wait for a call.
• When receiving a call, the caller’s ID or group
code appears as shown at right.
• DO NOT push any digit keys while code chan-
nels C0 to C6 are displayed, or code channel
contents will be changed.
v Push [PTT] to send an answer back call
and display the operating frequency.
b After confirming a connection, push
[BANK/OPTION] for 1 sec. to select code
squelch operation, or repeat the previous
key operation again to select non-selective
calling system.

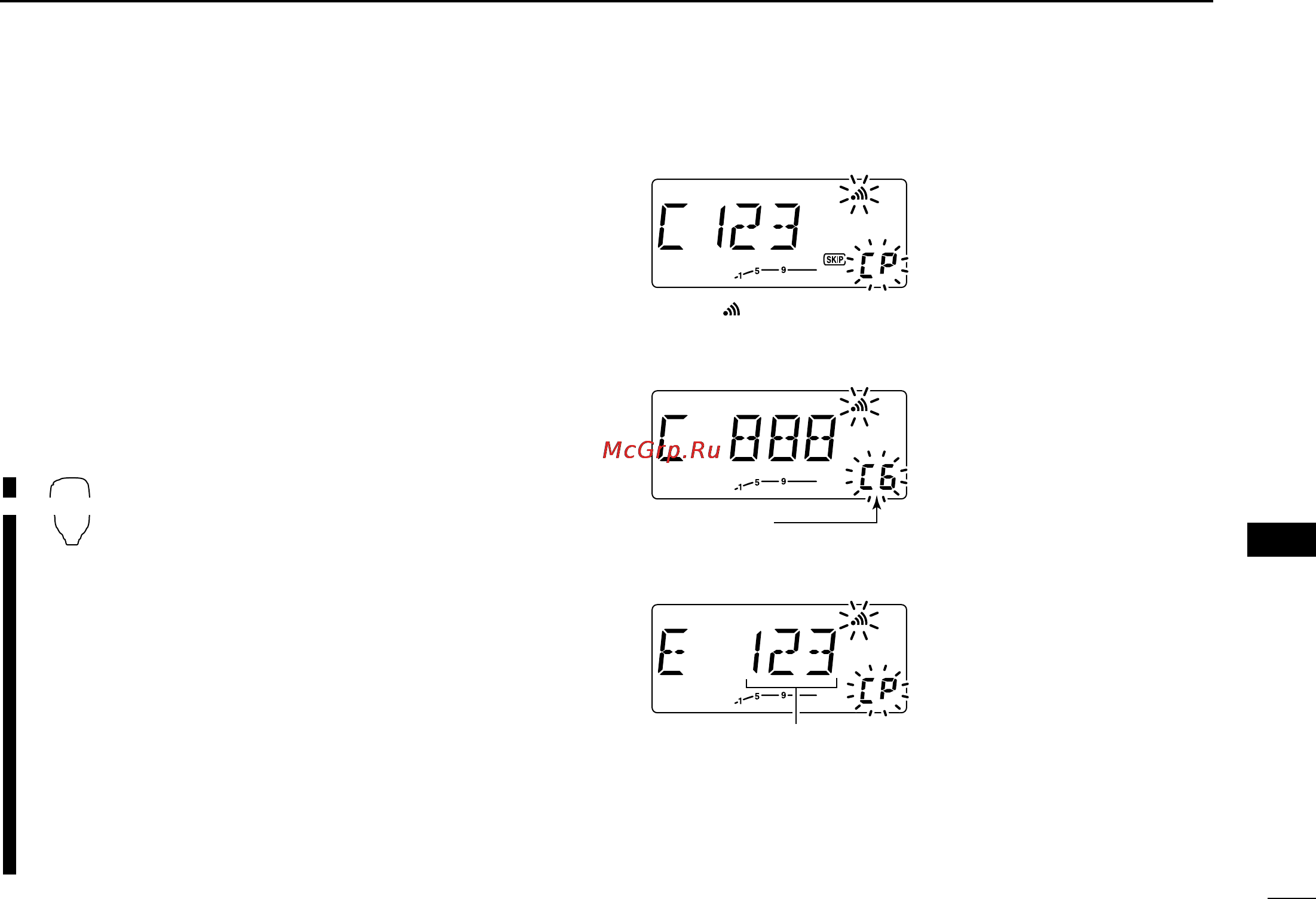

• PERSONAL CALLS
This display appears when
you are called with your ID
code and the calling station’s
ID code is 123.
• GROUP CALLS
This display appears when
you are called with the group
code, 888, and 888 has been
programmed into code chan-
nel C6.
• ERROR INFORMATION
When the transceiver receives
an incomplete signal, “E” and
previously received code ap-
pear.
Previously received code.
Code channel
CP and blink.
BANK/OPTION
