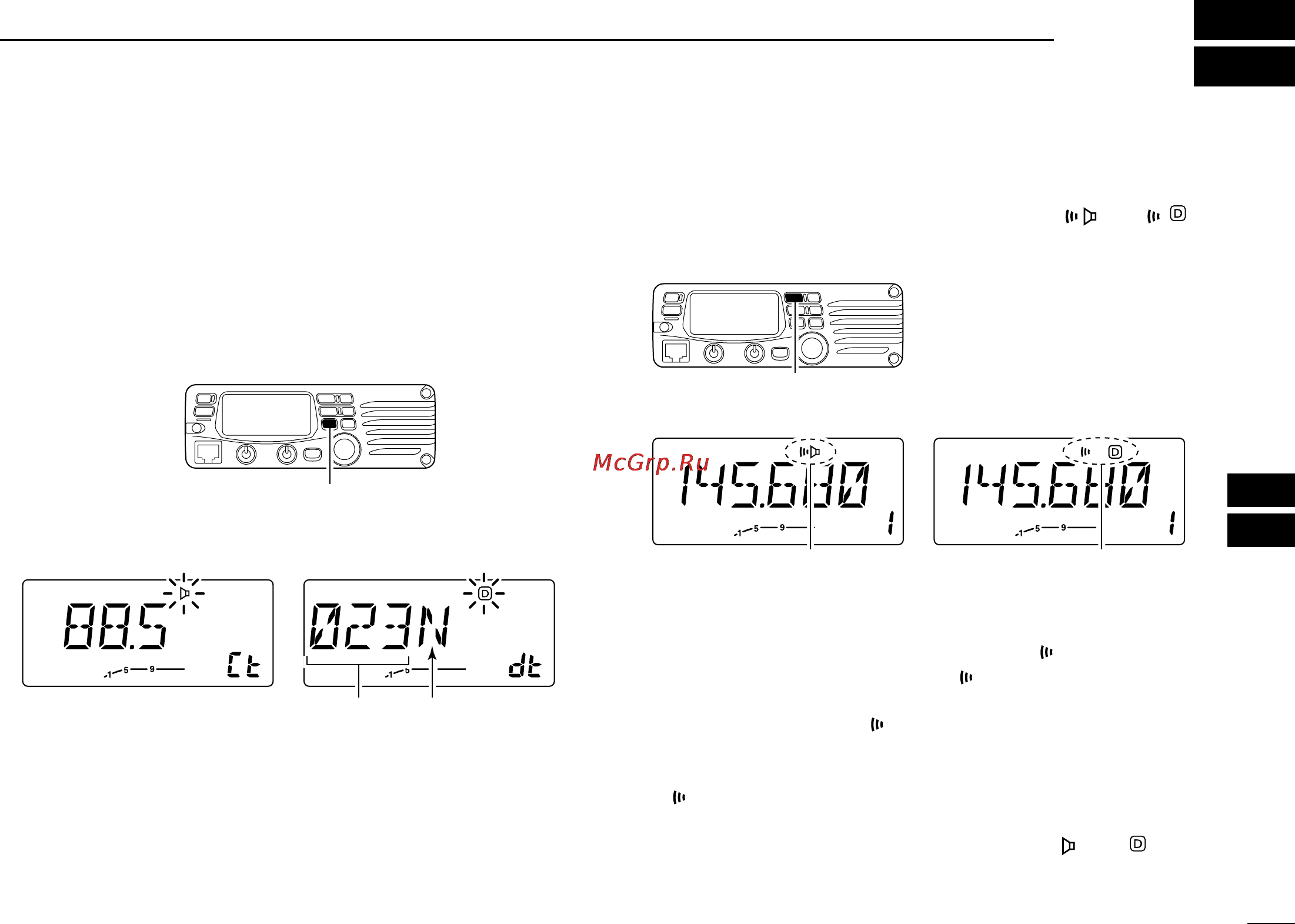

Icom IC-V8000 [59/88] Pocket beep and tone squelch
![Icom IC-V8000 [59/88] Pocket beep and tone squelch](/views2/1074121/page59/bg3b.png)
48
10
POCKET BEEP AND TONE SQUELCH
9
10
■ Pocket beep operation
This function uses subaudible tones for calling and can be
used as a “common pager” to inform you that someone has
called while you were away from the transceiver.
D Waiting for a call from a specific station
q Set the operating frequency.
w Push [SET(LOCK)] to enter set mode.
e Push [SET(LOCK)] or [MW(S.MW)] several times until “Ct”
for tone squelch or “dt” for DTCS squelch appears.
r Rotate the tuning dial to select the desired tone squelch
frequency or DTCS code and polarity.
t Push [TONE(T-SCAN)] to exit set mode.
y Push [TONE(T-SCAN)] several times until “” or “”
are displayed to turn ON the pocket beep with tone
squelch or DTCS squelch, respectively.
u When a signal with the matched tone is received, the
transceiver emits beep tones and blinks “”.
• Beep tones sound for 30 sec. and “” blinks. To stop the beeps
and blinking manually, push any key. When the beep tones are
not stopped manually, “” continues flashing until step i is
operated.
i Push [PTT] to answer.
•“ ” disappears and cancels the pocket beep function automati-
cally.
o Push [TONE(T-SCAN)] several times until “” or “” dis-
appears to cancel the tone squelch or DTCS squelch func-
tion.
Appears when the pocket beep
with tone squelch is activated.
Appears when the pocket beep
with DTCS squelch is activated.
Push [TONE(T-SCAN)] several times to select the pocket beep
function with tone squelch or DTCS squelch.
Tone squelch frequency setting DTCS code Polarity N: normal
I: inverse
Push [SET(LOCK)] to enter set mode.
