13
BASIC OPERATION
3

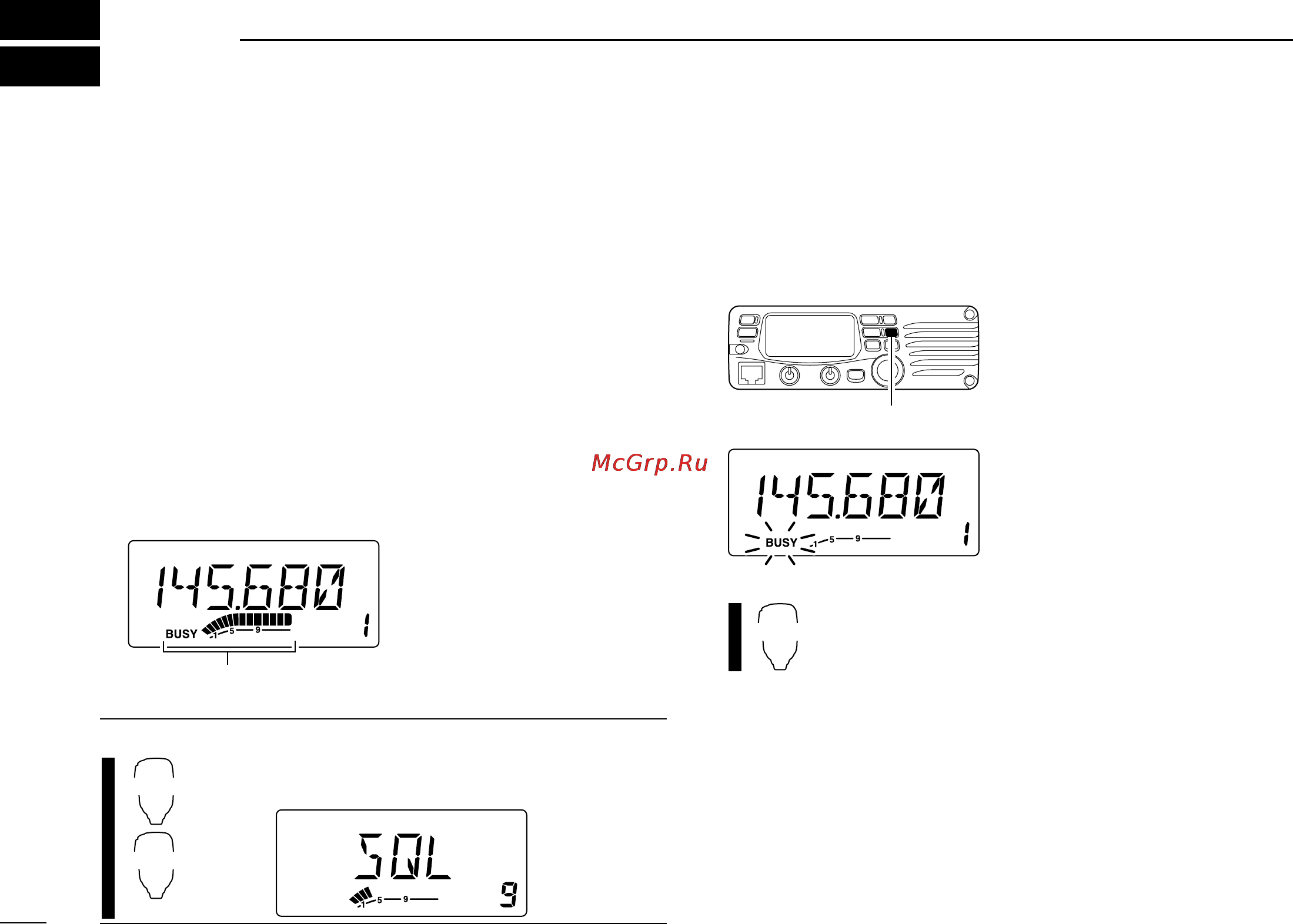

■ Receiving
q Push [PWR] for 1 sec. to turn power ON.
w Set the audio level.
➥ Push [MONI(ANM)] to open the squelch.
➥ Rotate the [VOL] control to adjust the audio output level.
➥ Push [MONI(ANM)] again to close the squelch.
e Set the squelch level.
➥ Rotate [SQL] fully counterclockwise in advance.
➥ Rotate [SQL] clockwise until the noise just disappears.
➥ When interference is received, rotate [SQL] clockwise
again for attenuator operation.
r Set the operating frequency. (pgs. 9, 10)
t When receiving a signal on the set frequency, squelch
opens and the transceiver emits audio.
•“BUSY” appears and the S/RF
indicator shows the relative
signal strength for the re-
ceived signal.
✔
CONVENIENT!
The squelch level can also be adjusted with
[
SQL
Y D(MUTE)] and [
SQL
Z #(16KEY-L)].
■ Monitor function
This function is used to listen to weak signals without disturb-
ing the squelch setting or to open the squelch manually even
when mute functions such as the tone squelch are in use.
➥ Push [MONI(ANM)] to open
the squelch.
•“BUSY” blinks.
• Push [MONI(ANM)] again to
cancel the function.
➥ Push [
MONI
1(ANM)] to open the squelch.
• Push [
MONI
1(ANM)] again to cancel the function.
MONI
1
Push [MONI(ANM)]
SQLY
D
SQLZ
#
Appears when receiving a signal.
