Icom IC-V8000 [29/88] Repeater operation
![Icom IC-V8000 [29/88] Repeater operation](/views2/1074121/page29/bg1d.png)

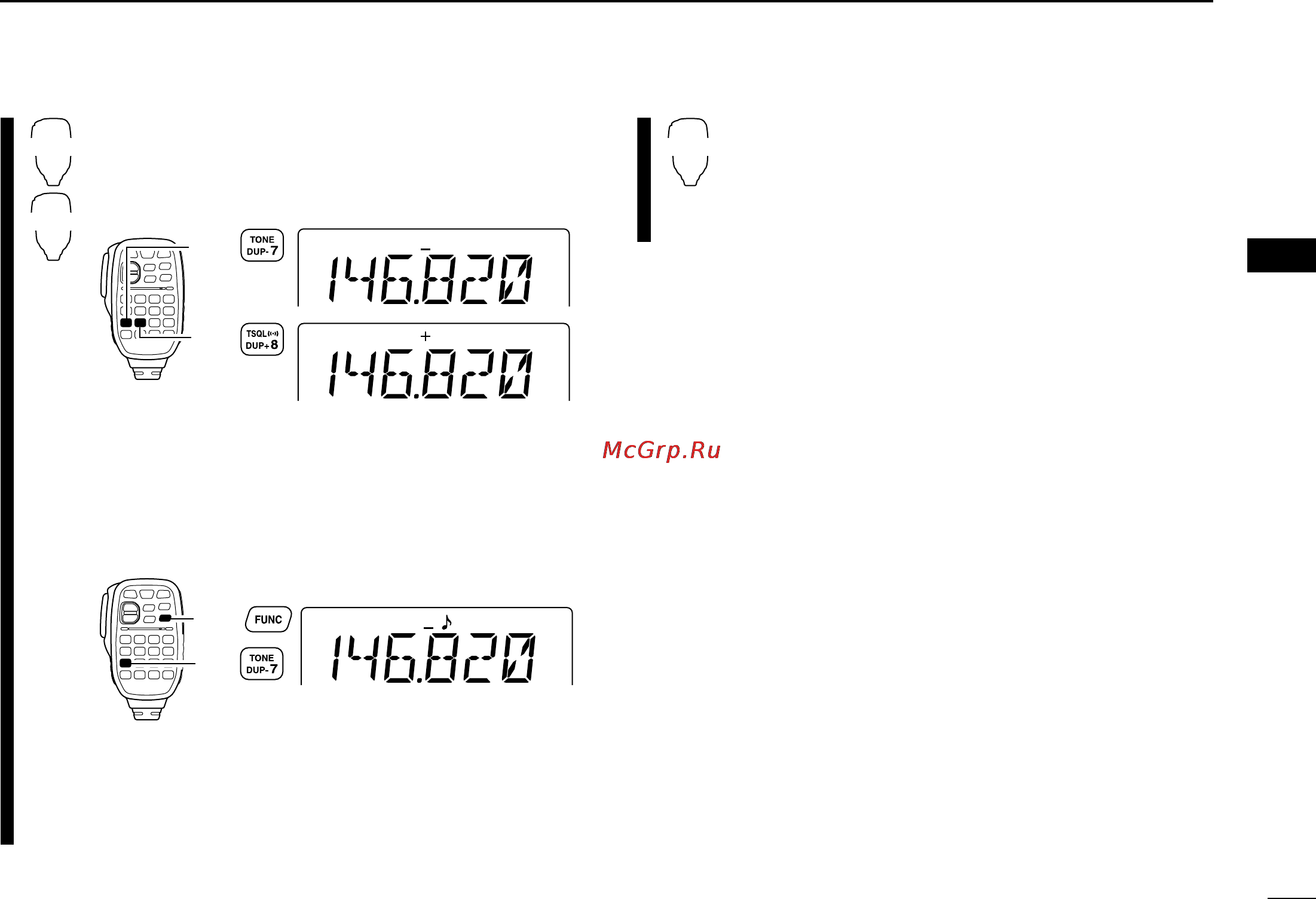

z Set the receive frequency (repeater output fre-
quency). (pgs. 9, 10)
x Push [
DUP
– 7(TONE)] to select minus duplex;
push [
DUP
+ 8(TSQLS)] to select plus duplex.
c Push [FUNC] then [
DUP
– 7(TONE)] to turn ON
the subaudible tone encoder according to re-
peater requirements.
• Refer to p. 19 for the tone frequency setting.
• When the repeater requires a different tone system,
see p. 20.
v Push and hold [PTT] to transmit.
b Release [PTT] to receive.
n Push [
MONI
1(ANM)] to check whether the other
station’s transmit signal can be received directly.
m Push [
SIMP
9(TSQL)] to return to simplex opera-
tion.
•“+” or “–” indicator disappears.
, To turn OFF the subaudible tone encoder, push
[FUNC] then [
ENT
C(T-OFF)].
SIMP
9
Push ,
then .
Push
Push
DUP–
7
DUP+
8
18
4
REPEATER OPERATION
4
