32
5
MEMORY OPERATION
5
■ Memory bank selection
q Push [M/CALL(PRIO)] to
select memory mode, if de-
sired.
w Push [BANK(OPT)] to se-
lect memory bank condition.
• Bank initial blinks
e Rotate the tuning dial to se-
lect the desired bank, A to J.
• Banks that have no pro-
grammed contents are
skipped.
r Push [BANK(OPT)] to set
the bank.
• Initial stops blinking.
t Rotate the tuning dial to se-
lect the contents in the
bank.
• No channel numbers are dis-
played for memory bank oper-
ation.
y To return to regular memory
condition, push [BANK(OPT)]
twice.
z Push [MR/CALL] to select memory mode,
if desired.
➥ Push [MR/CALL] for 1 sec. to select the
call channel.
x Push [BANK/OPTION] to select memory
bank condition.
• Bank initial blinks
c Push [Y]/[Z] to select the desired bank, A
to J.
• Only programmed memory bank can be se-
lected.
v Push [BANK/OPTION] to set the bank.
• Initial stops blinking.
b Push [Y]/[Z] to select the desired contents
in the bank.
• No channel numbers are displayed for memory
bank operation.
n To return to regular memory condition,
push [BANK/OPTION] twice.
BANK/OPTION
[Y]/[Z]

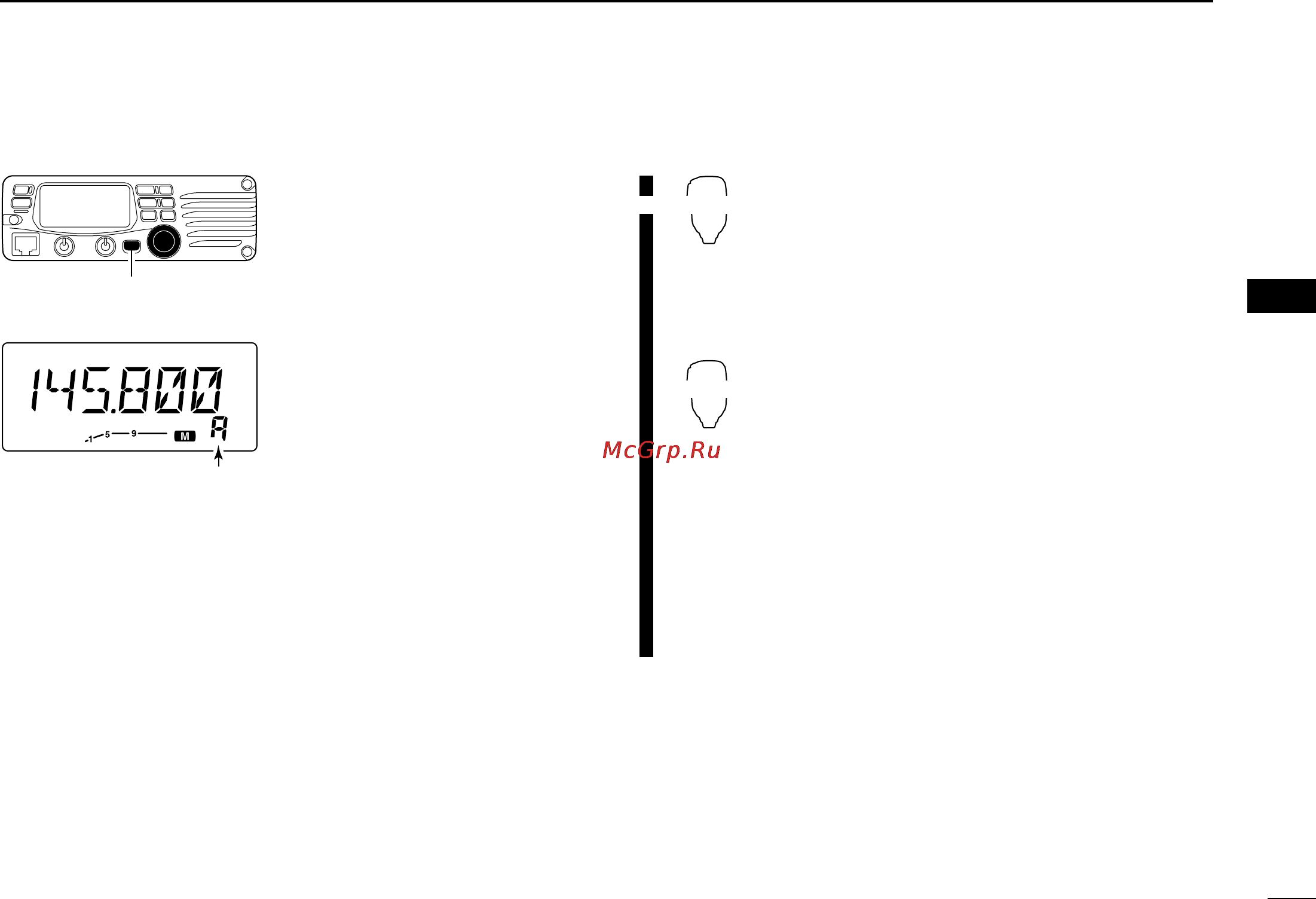

Push [BANK(OPT)] to select
memory bank mode.
Shows bank initial.
